AOK-5006B/2039B English manual
(US)
Please read the operating instructions carefully to familiarize yourself with the features and modes of
operation before using the instrument.
Keep the manual for future reference and pass it on with the device, if you pass on the device to
other users.
NOTE: Always remember to use high quality batteries & change them at least once per year.
PACKAGING CONTENTS
1 x weather station
1 x outdoor sensor
1 x AC adaptor
1 x instruction manual

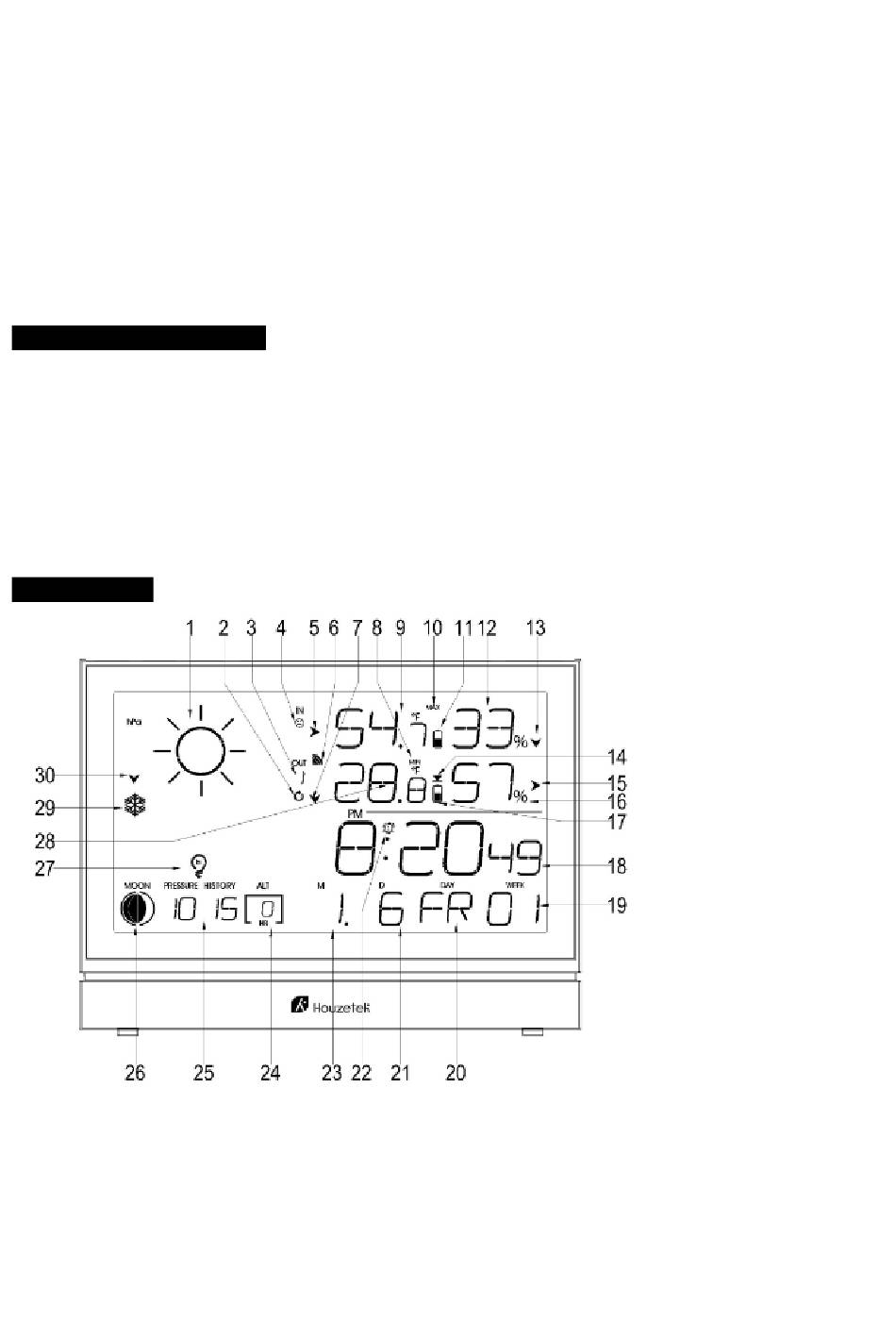

LCD DISPLAY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AOK-5006K and is the answer not in the manual?

Questions and answers

Summary of Contents for Houzetek AOK-5006K

  • Page 1 AOK-5006B/2039B English manual (US) Please read the operating instructions carefully to familiarize yourself with the features and modes of operation before using the instrument. Keep the manual for future reference and pass it on with the device, if you pass on the device to other users.
  • Page 3 Overview of icons and buttons Front side and display： 1. Weather 2. Channel recycling icon 3. Channel 4. Comfort face 5. Trend for indoor temperature 6. RF symbol 7.Trend for outdoor temperature 8. Max/Min for outdoor temperature and humidity 9. Indoor temperature 10.
  • Page 4 (E) ∧•MEM Check the MAX/MIN temperature and Clear the MAX/MIN temperature and One step forward in humidity data ; humidity data setting ir pressure ∨ • Check the history of a One step back in setting HISTORY .G= DC 5.0V adaptor power jack Wireless sensor H= Outdoor temperature and humidity I = LED of signal transmission from the sensor...

  • Page 5: Mounting The Outdoor Sensor

    2. Place the sensor near the main unit in order to establish an effective wireless transmission. Do not place the sensor outside until the transmission have be confirmed. 3. Observe the indoor unit LCD screen to see OUT temperature and humidity displayed to confirm the transmission completed NOTES: •...
  • Page 6 The weather icon flashing, press “ ∧ •MEM “ or “∨ •HISTORY” to choose the weather, then • press ”SNOOZE/LIGHT” to confirm • The main unit will connect with the outdoor sensor by RF signal. The RF signal symbol at the out area will flash. •...
  • Page 7 • The language selection for the display of the weekdays is flashing. Use “ “ or “ ∧•MEM ∨•HISTORY” to select the language (GE- German, EN - English, IT - Italian, FR - French, DU - Dutch, SP - Spanish, DA - Danish).
  • Page 8 • The clock automatically exit setting mode if no keys are pressed for 20 seconds, value already set will be save. Snooze function To activate the snooze function, follow the steps below • Press the key “SNOOZE•LIGHT”, while the alarm sounds, to activate the snooze function. •...
  • Page 9 Weather forecast Remarks：  As the weather forecast is calculated by air pressure only, the display will have discrepancy with the actual weather.  Currently displayed icon means the forecast for the next 12–24 hours. It may not reflect the current state of the weather.

  • Page 10: Ice Alert

    Waxing First Waxing Full moon Waning Last Waning moon crescent quarter gibbous gibbous quarter crescent Ice Alert • Indoor temperature is lower than 39.2℉( +4° C ) ， there is ice alert symbol showing on LCD. That means the weather start to be icy. Temperature and humidity function ·Indoor temp detection range:32℉—122℉(0℃—+50℃) ·RF temp range:4℉- 140℉(-20℃...
  • Page 11 Backlight • Press and hold key “∨ •HISTORY” for 2 seconds to enter the a/b/c mode setting . • Press the key“∨ •HISTORY” to choose the a/b/c mode (Default mode a). • In “a” mode ,need to manual select the backlight color . Press ”SNOOZE•LIGHT”...

  • Page 12: Care And Maintenance

    • For accurate barometric pressure trends, the weather station should operate at the same altitude for recordings (i.e. it should not be moved from the ground to the second floor of the house). When the unit is moved to a new location, discard readings for the next 12 hours and correct the height adjustment if needed •...

  • Page 13: Intended Use

     Do not expose the main unit to rain or moisture, if it is not intended for outdoor use.  Do not place any open flame sources on the product, e.g. a lit candle, etc.  Do not place the product to places with inadequate air flow. ...

  • Page 14: Fcc Statement

    Protect the batteries from intense heat. Remove the exhausted batteries from the weather station. This will avoid damage that can be caused by leakage. Always replace all the batteries simultaneously. Do not use different types or brands of batteries or batteries with different capacities.

This manual is also suitable for:

Aok-2039b
