Swing Gate Opener Manual Warnings Please read this instruction manual carefully before the installation of gate operator system. A wired photo eye sensor must be installed for this gate operator to function properly (UL325-2016) This manual is exclusively for qualified installation personnel. We are not responsible for improper installation and failure to comply with local electrical and building regulations.
Page 3

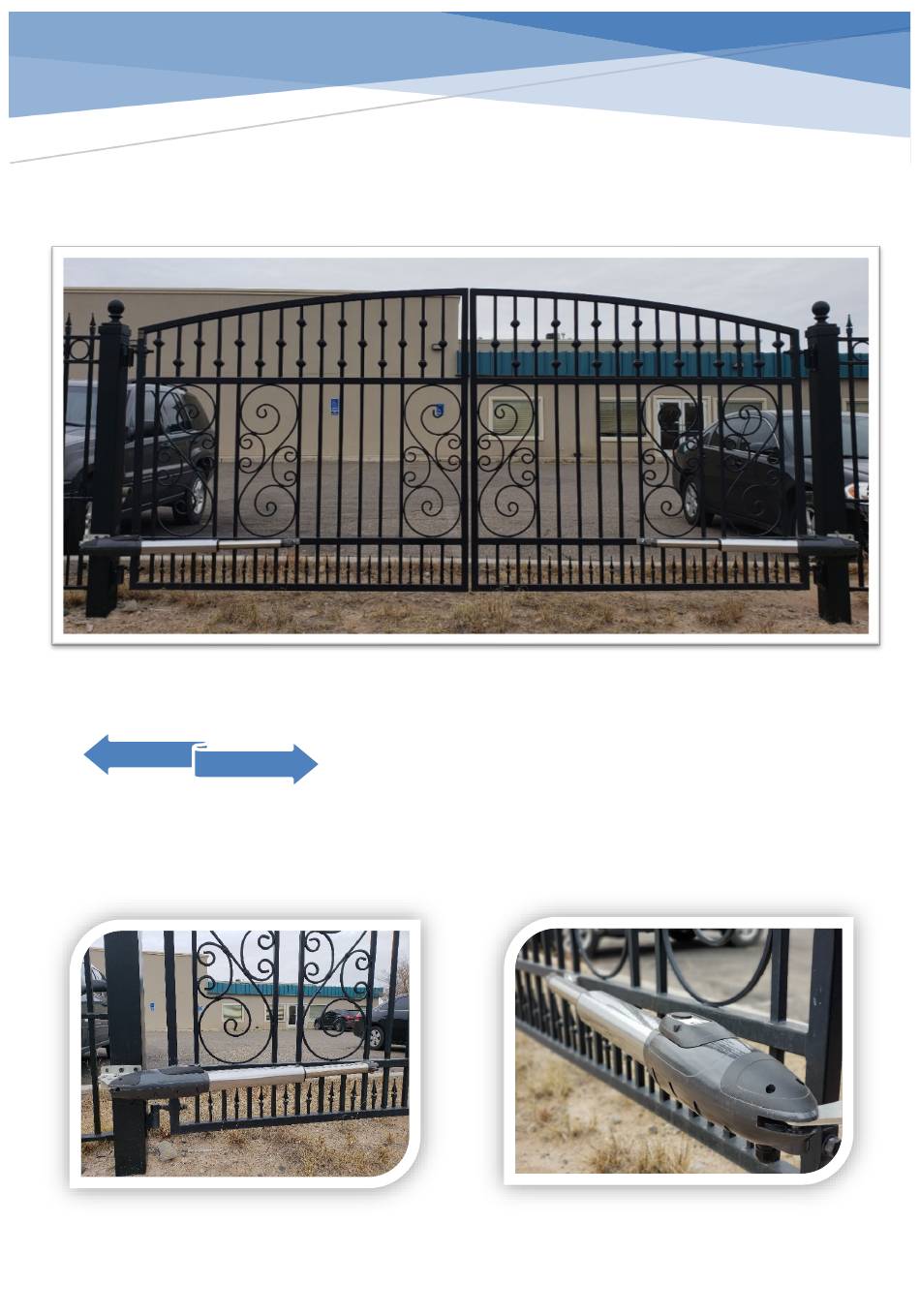

Product Description and Applications Applications This model is for residential automation of a single or dual leaf gate. Power is or light commercial 110vac. In case of power failure, the operators can be released by special keys to move the gate manually.
Page 4
Power connection The installation of 110vac power supply cable to the Control Box should be done by a qualified professional electrician. All high voltage wiring must be in conduit. It is highly recommended to ground the system. Please make sure to shut off the power before installation or maintenance.
Page 5
If the gate is OPENED OUTWARD, please leave at least 70 mm (3 inches) between the post brackets and the gate. Using the leaf-opening angle as criteria to make sure all criteria in Figure 17 can be met...
Page 6
FIGURE 17 “C” value is 139mm (5-1/2”) “D” can be measured from the gate easily “A” = “C” + “D” The value of “B” can be calculated from the value of “A” and the leaves opening angle. Example: If “A” =160mm (6-1/4”) with the leaves opening angle of 100 degrees, then the value of “B” is approximate 190mm (7-1/2”) NOTE: Please make sure “B”...
Page 7
Finger tighten the bolts only for now - the bracket will find its own spot as you swing the gate open from the closed position. Figure 21 Figure 22 Refer to Figure 23, the distance between gate attach bracket mounting hole of the motor and post bracket mounting hole is 796mm (31”) the gate attach Figure 23 Now the post bracket is securely fastened to the hinge post.
Page 8
Fasten the gate attach bracket nut tightly and then loosen it 1/2 turn so actuator can pivot. Open the gear motor cover and then take out the mounting pin as below Figure 25. Mount the actuator to the hinge post bracket using supplied pin and insert the mounting bolt into the gate attach bracket.
Page 9
Connect the motor power cable as shown in Figure 27 The actuator is not pre-wired. Use 2 conductor 14-gauge stranded wire and feed it up through the strain relief nut. Next, securely fasten to terminal blocks red to positive (white) and black to negative (yellow) (you may use white and yellow stranded wire if available) Close the gear motor cover by tightening the two screws as shown in Figure 28 Figure 27...
Page 10
Control board wiring diagram: Technical Parameters: 1. Control Panel Voltage: AC24V, available for 24VDC backup battery. 2. Suitable for single or dual swing gate opener. 3. Radio Controls: 433 MHz customized rolling code. 4. Support remote control: Can memorize 120PCS transmitters at most 5.
18. 24V DC alarm output 19. Motor1 terminal is used for connecting the secondary actuator (+) 20. Motor1 terminal is used for connecting the secondary actuator (-) 21. Motor2 Delay terminal is used for connecting the primary actuator or for use with single gate positive (+) 22.
Page 12
2. To set the level of stall force: 2a-- When digital display indicates P1, the gate opener is on Motor 1 low speed running stall force adjustment. There are 0-20 levels for optional, each time you press and release the [INC+] button, the figure increase by 1;...
Page 13
6. To set auto close time: When digital display indicates P9, the gate opener is on auto close time setting. There is 0-99s for optional. 0s mean the gate opener would not auto close. Max auto close time is 99s. Each time you press and release the [INC+] button, the figure increase by 1;...
