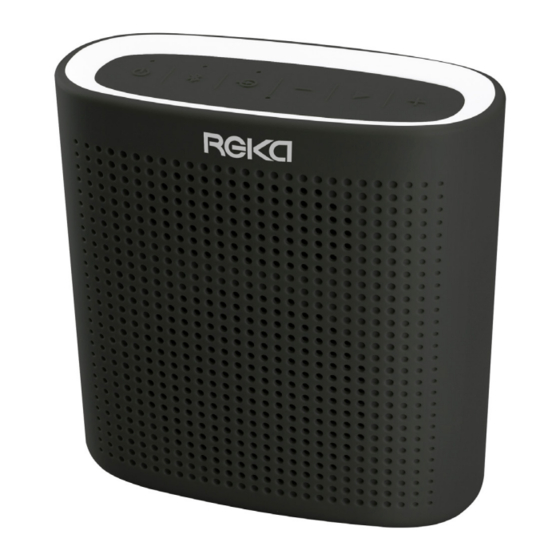

- Page 1 Outdoor Wireless Speaker MODEL NUMBER: 84224 USER GUIDE After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
-
Page 2: Table Of Contents
Contents Welcome Section General Information & Safety Instructions Contents & Features Layout Checking The Adaptor Charging • Charging The Speaker On/Off/Standby • Turning On • Turning Off • Auto Off Bluetooth • Pairing • Pairing To A Second Device • Bluetooth Controls •... -
Page 3: Welcome Section
Welcome Section Congratulations! You have made an excellent choice with the purchase of this quality REKA product. ® By doing so you now have the assurance and peace of mind which comes from purchasing a product that has been manufactured to the highest standards of performance and safety, supported by the high quality standards of Quesh Ltd. -
Page 4: General Information & Safety Instructions
General Information & Safety Instructions Battery Care To get the best out of the battery, fully charge and use until flat for the first 5-6 times. Then use until flat and fully charge at least once a month. Prolonged storage without charge may cause damage to the battery and result in poor to no charge. -
Page 5: Contents & Features
Contents & Features Contents 1 x Speaker 1 x Charge Cable Features • Bluetooth • Aux Input • 1500mAh Rechargeable Battery • Up To 5 Hours Play Time • Up To 72 Hours Standby Time • 10m Bluetooth Range • IP33 Rating •... -
Page 6: Layout
Layout Power Bluetooth Vol - Play/Pause Vol + On/Off Bluetooth AUX Microphone Dust Cover AUX IN Charge Port After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk... -
Page 7: Checking The Adaptor
Checking The Adaptor READ BEFORE USE Adaptor Information Before using a USB mains adaptor please check the “Output” information on the plug face label. For this device 5V/1A or 5V/1000mAh is the maximum output required to charge the battery. Using a stronger output can damage the battery and/or product and void the warranty. -
Page 8: Charging
Charging Charging The Speaker To charge the speaker, make sure the speaker is turned off. Open the dust cover and connect the charge cable to the micro USB charge port on the back of the speaker and the other end to a power source no greater than 5V/1A. -
Page 9: Bluetooth
The blue LED will start flashing again. Activate the bluetooth on the next device you want to pair with. Search for ‘REKA AUDIO’ on your available device list, then select it to pair. There is no security so the speaker will automatically pair. -
Page 10: Aux
Using AUX Mode To setup the speaker to use the AUX function, open the dust cover and insert a 3.5mm, 3 pole AUX cable (not supplied) into the AUX IN port and the other end in to the audio out/headphone port of the device you want to connect to. -
Page 11: Faq
Problem Cause Solution Bluetooth dropping out after Full device cache. Manually clear the device’s cache & restart the device. a few minutes. Low Power. Turn the speaker off and recharge them. Stuttering/delay music. Too many processes running Close unused apps. on device. -
Page 12: Specifications
Specifications Outdoor Wireless Speaker Weight: 320g Approx Dimensions: 57mm x 127mm x 137mm Audio Type: Mono Speaker: Speaker Size 76mm Maximum Speaker Output: Approx. 88dB AUX IN Port: 3.5mm Charge Port Type: Micro USB Maximum Power Source: 5V/1A Minimum Power Source: 5V/500mAh Charge Time: Up to 5 Hours... - Page 13 INTENTIONALLY LEFT BLANK After Sales Support UK/N.IRELAND HELPLINE N 01270 508538 REP.IRELAND HELPLINE N 1800 995 036 WEBSITE: www.quesh.co.uk EMAIL: enquiries@quesh.co.uk...
- Page 14 Warranty Certificate Warranty This product is warranted to be free from defects in workmanship and parts for a period of 36 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour.
- Page 15 Warranty Card Outdoor Wireless Speaker Model Number: 84224 Please keep your purchase receipt together with your warranty card Name: Address: Date of purchase: Location of purchase: Fault Description: Office Use: Repaired Replaced Other We recommend that you attach a photocopy of your receipt, showing the date of purchase, to this warranty card and keep it for your reference.
