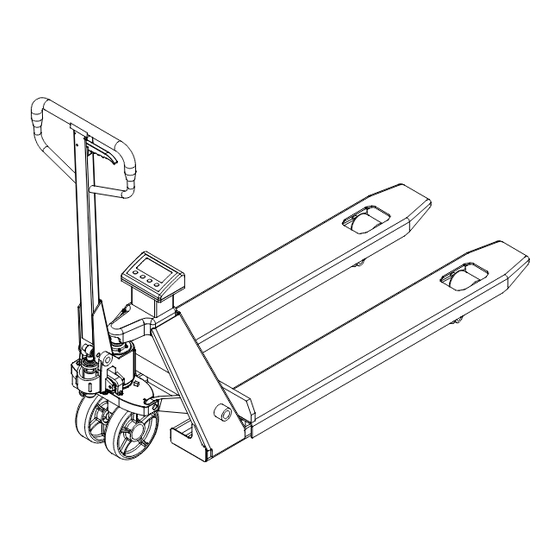

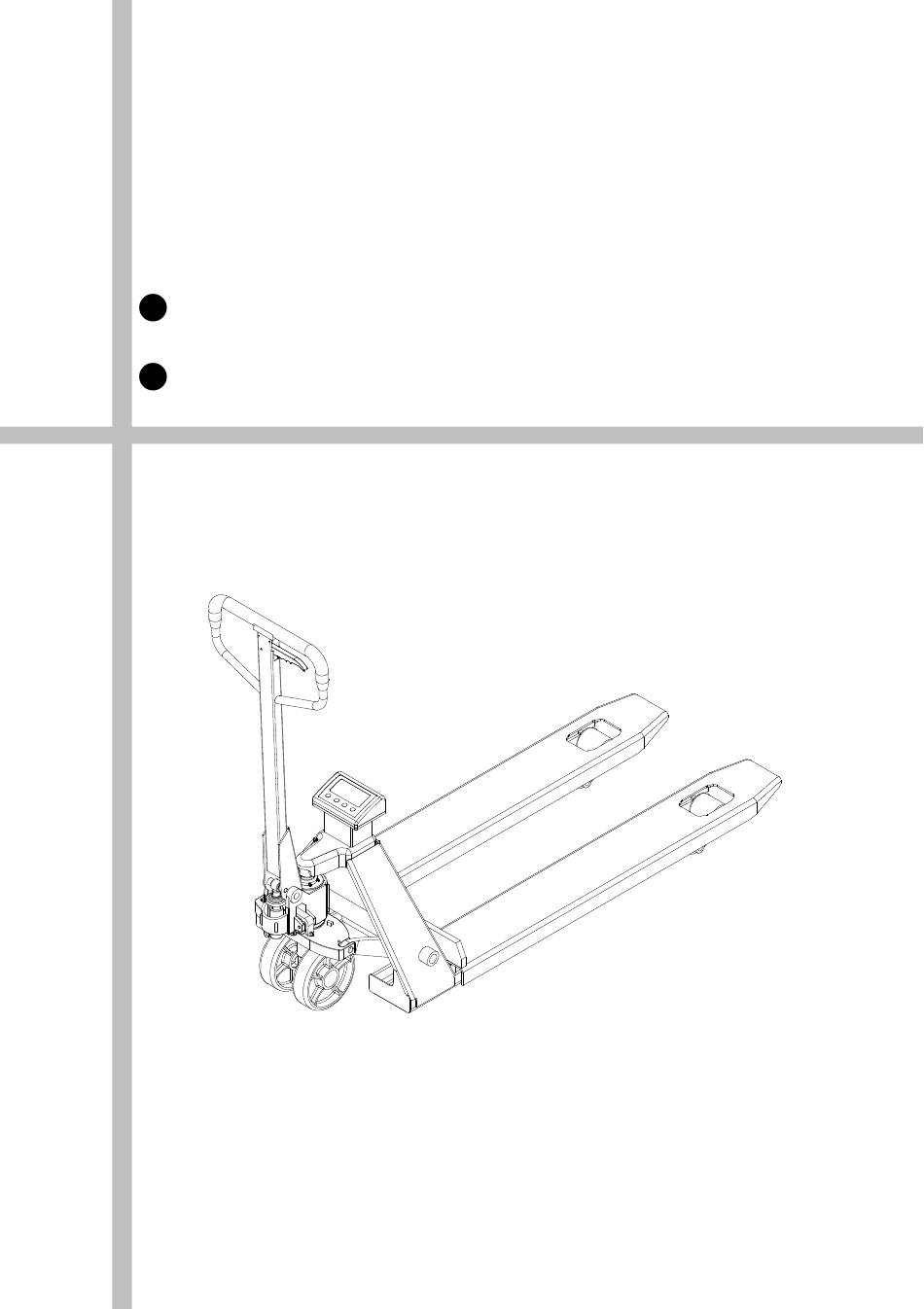

- Page 1 BFC6-7/BFC6-8 Scale pallet truck Operation manual Spare parts catalogue 2009-09...
- Page 2 Welcome to choose the BFC6 hand pallet truck with scale. Please read this operation manual carefully before you use it. The manual could provide direct help for your operation. Hint: The BFC6 hand pallet truck with scale is only used to weigh up the pallet cargos at storehouse.
- Page 3 See fig 2 and fig 5. 2.1.5 Turn the pin roll 2 to the original position, and push longitudinally to the end. Then put spring pin 1 get across pin roll 2 to reset. 2.1.6 See fig 3, turn the hand grip to the level position, pull out pin 7 and save pin 7 with care for next use.
-
Page 4: Other Operations
3. Operation in using： ： ： ： 3.1 On /Off key In “power off ”state, hold the key 2 seconds and all display segments will light. In normal display state, hold this key 2 seconds, the instrument will show [-OFF- ], then power off. 3.2 Zero Zero the scale. -
Page 5: Maintenance
the handle knob 8 should be placed on dropping condition to let the truck forks down to a certain position. Then insert the forks to the pallet and place the handle knob 8 on the lifting condition so as to rock the hand grip to lift the truck forks. 5.3 During the process of moving cargo, the handle knob 8 should be placed on the free position. - Page 6 9.4 Don’t load the cargo at a high speed. 9.5 Do not overload the forks. Overloading could keep the hand pallet truck with scale from working normally. 9.6 The gravity center of cargo should be in the middle of truck forks. The offset of cargo could make the truck out of balance.
- Page 7 BFD6-7/8 handle assmbly and spare parts list Drawing no. Description Qty. Drawing no. Description Qty. DF.1-01a Location plate GB879-86 Pin 3x20 GB879-86 Pin 4x30 CN.2-13 Pressure roller DF.1-02 Roller CSB10 Bushing 1220 GB879-86 Pin 4x20 DF.1.2-00 Pull rod GB879-86 Pin 6x30 SF-1 Bushing SF-1F2015 DF.1-03...
- Page 9 Drawing no. Description Qty. Remark BF.2-1 Pump plunger 18x97 AF.2-3 Spring cap BF.2-6a Spring DH20 Dust ring 18 UHS20 Y-ring 18 AM-19 Shaft JF.1-17 Seal screw M20x1.5 JB982-77 Combined washer 20 AF.2-9 Spring SYBC2-07 Valve core SYBC.2-08 Valve GB308-77 Steel ball 6.35 BF.2.1-00 Pump house GB894.1-86...
