Summary of Contents for RunCam TX200

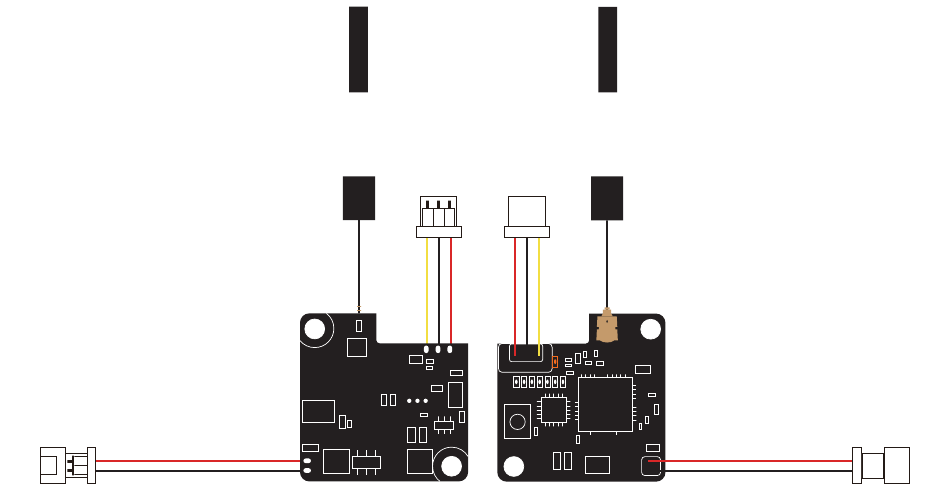

- Page 1 RunCam TX200 FCC ID: 2AK4W-TX200 1S 3.5-5.5V 5.8G 25CH Video Transmitter...
- Page 2 Frequency Setup Parameter Frequency Channel: 5.8G 25CH Video Input Impedance: 75 Ohm Red LED flashes, only limited frequency available Antenna : U.FL 5.8G 2dBi Omni antenna Working Current: 5V@150~400mA Weight: 2.5g (with antenna) Voltage out: 5V@max 250mA PCB Size: 19mm*19mm Voltage in: 1S 3.5-5.5V Instruction diagram 5V out...
-
Page 3: Frequency Table
Frequency Table Restricted Channel 1 Band A 5865 5845 5825 5805 5785 5765 5745 2 Band B 5733 5752 5771 5790 5809 5828 5847 5866 3 Band E 4 Airwave 5740 5760 5780 5800 5820 5840 5860 5880 5 Race Band 5769 5806 5843... - Page 4 This radio transmitter (identify the device by certification number) has been approved by FCC to operate with the antenna types with the maximum permissible gain indicated. The final end product must be labeled in a visible area with the following: Contains Transmitter Module FCC ID:2AK4W-TX200...
