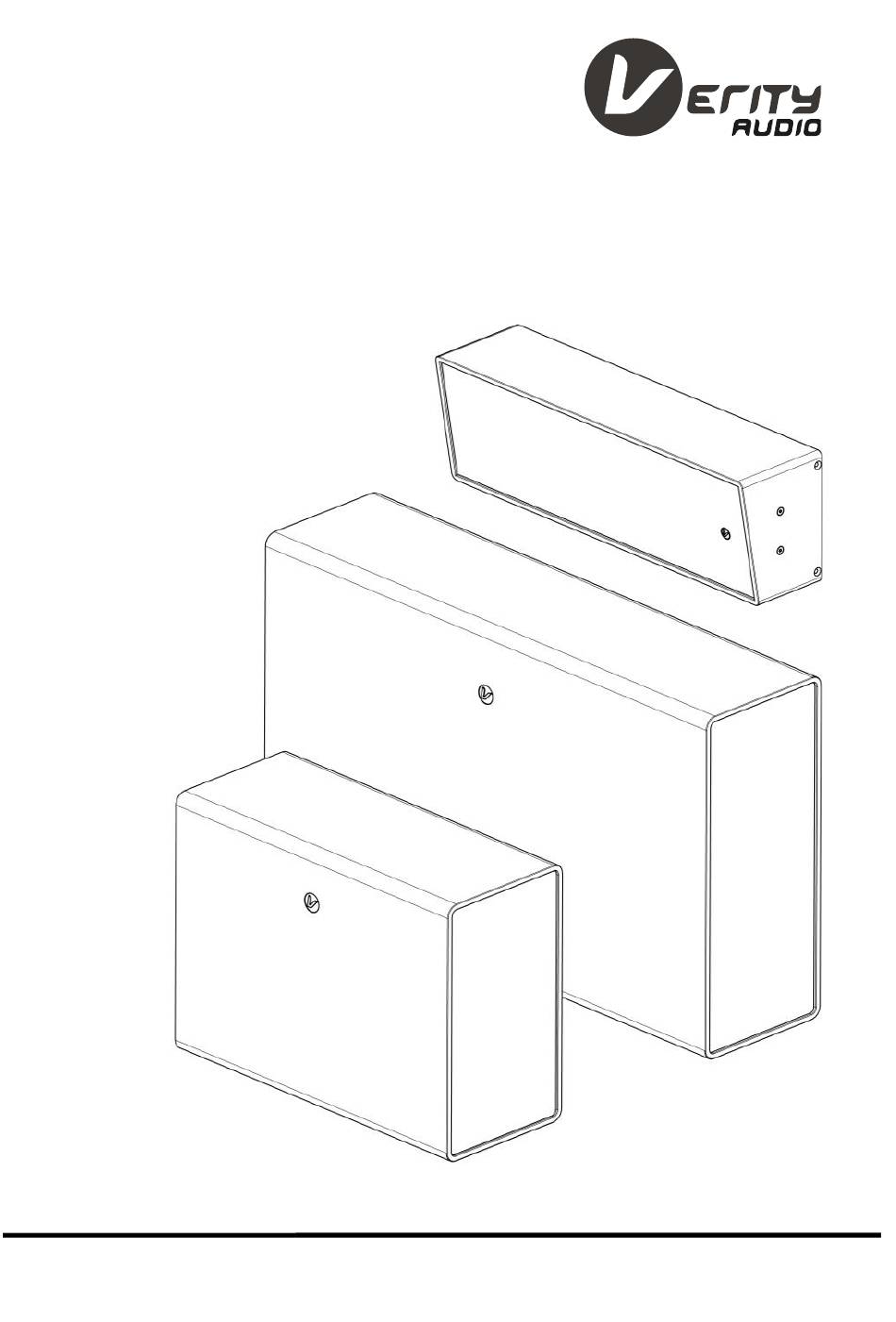

- Page 1 HOME CINEMA SUB208S SUB408S User's manual www.verityaudio.fr...
- Page 2 CLOSER TO MUSIC...
- Page 3 1 cm and the bracket is almost invisible. It can be used as well with a pole. The C6 cabinet is m ade of 9mm MDF wit h double thickness baff le and use an accurate designed bass ref lex syst em f or an extended bass f requency response wit h a coaxial 6 .5”...
- Page 4 2 . S PE CI FI C ATI O NS 2 . 1. Acoustics Power: 150W AES, 300W Program, 600W Peak 8Ω Impedance: Sensitivity: 92dB SPL 1W/1m half space (1) Max. SPL @1m: 114dB Continuous, 117dB Program, 120dB Peak Frequency response: 65Hz-15kHz (-6dB), 60Hz-18kHz (-10dB) (2) Beam aperture -3dB: 100º...
- Page 5 2 . 2. S U B 20 8 S Acoustics Power: 700W AES, 1400W Program, 2800W Peak Impedance: 8Ω Sensitivity: 92dB 1W/1m half space (1) Max. SPL @1m: 120.5dB Cont., 123.5dB Program, 126.5dB Peak Frequency response: 48Hz-1.1kHz (-6dB), 40Hz-1.5kHz (-10dB) (2) Directivity: Omnidirectional in the usable range 1400W / 8 Ω...
- Page 6 2 . 3. S U B 40 8 S Acoustics Power: 1400W AES, 2800W Program, 5600W Peak 4Ω Impedance: Sensitivity: 94.5dB 1W/1m half space (1) Max. SPL @1m: 126dB Continuous, 129dB Program, 132dB Peak Frequency response: 33Hz-250Hz (-6dB), 30Hz-350Hz (-10dB) (2) Directivity: Omnidirectional in the usable range 2800W / 4 Ω...
- Page 7 2 . 4. C U R V E S C6 SPL @4m scaled to 1W/1m half space C6 Impedance Verity Audio Sinusoidal 26-09-2018 11.55.12 Verity Audio LogChirp - Frequency Response 26-09-2018 12.09.02 dBSPL 80.0 90.0 60.0 80.0 40.0 70.0 20.0 60.0...
- Page 8 3 . CO NFIG UR ATI O NS 3. 1 . A bi t of hi st ory T he sound cinem a st ar t ed on lat e 30s wi t h only one loudspeak er on t he cent er of t he scr een . Dif f er ent r ecor ding syst em s wer e used and t he opt ical t r ack on a 35m m f ilm was f inall y st andar di zed .
- Page 9 3. 3 . Loudspeak ers acr o n ym T her e is a st andar d acr onym t o ident if y easil y t he dif f er ent loudspeak er s. T his is a list of t he m ain ones: Scr een cent er Scr een lef t Scr een r ig ht...
- Page 10 T he best posit ion f or t he f r ont and sur r ounding loudspeak er s is at t he ear s level o f t he audience. T his m ean t he C6 cabinet cent er m ust be at ar ound 1. 2m f rom t he f loor . T he r ear sur r ound loudspeak er s could be placed 1.
- Page 11 sam e dist ance of t he lef t and r ig ht wal ls . T his is t o m inim ize t he ef f ect s of t he r oom r ef lect ions . Loudspeak er s but C and LFE shoul d be added t o t he syst em by pa ir s and placed as sym m et r icall y as possib le t o t he axe f r om t he list ening posit ion t o t he scr een .
- Page 12 F i g 7 - 7 . 1 . 2 L a y o u t F i g 8 - 7 . 1 . 4 L a y o u t F i g 9 - 9 . 1 . 2 L a y o u t F i g 1 0 - 9 .
- Page 13 , depending on t he room and inst allat i on condit ions. T he C6 aper t ur e angle of t he sound beam is gr eat and t he cabinet not need t o be pr ecisel y f ocused t o t he list ening point .
- Page 14 5 . S UB20 8S / S UB408S I NS T ALL ATI ON 5. 1. Pl acement T he SUB208S and SUB408 S can be placed on t he f loor or hung on a wa ll . I n any case t her e m ust be at least 25 cm of f r ee space in f r ont of...
- Page 15 6 . WI RING T he C6 have t wo set s of push t erm inals t o connect t he cables , one on each side of t he r ear f ace . Can use any of t hem or t he sig nal input .
- Page 16 Verity audio reserves the right to make any changes to the product specifications without prior notice. Final specifications to be found in the user manual © VERITY AUDIO - France * all rights reserved...
