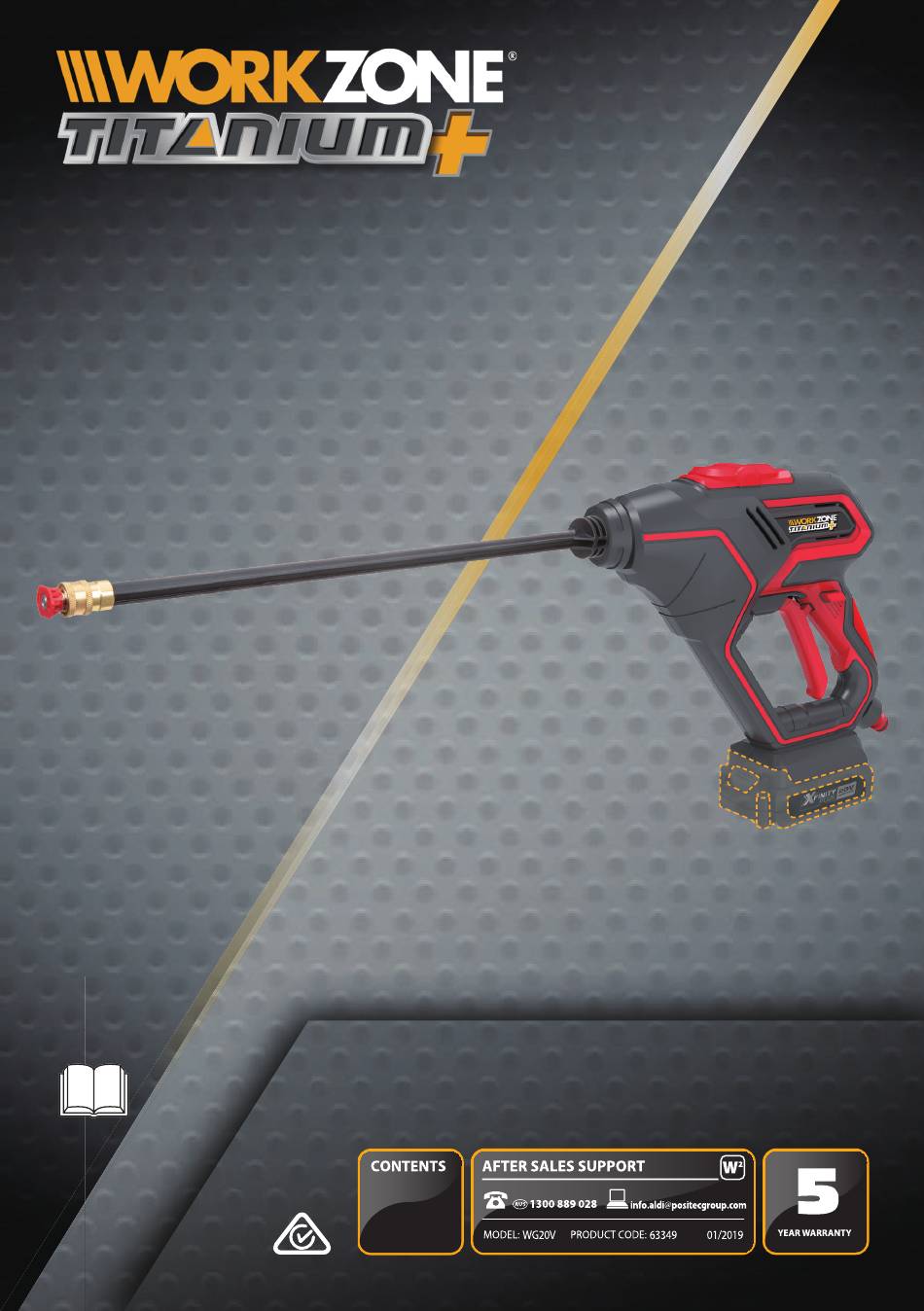

Xfinity Li-ION 20V
Pressure Spray Gun Skin
Instruction Manual
IMPORTANT
Read carefully before use
Keep for future reference
• 1 x 20V Spray Gun Skin
• 1 x Extension Lance and
Nozzle Adapter
• 2 x Spray Nozzle(0ºand 25º)
• 1 x Hose Clip
• 1 x 6m Hose with Floater
and Hose Filter
• 1 x Carry Bag
• 1 x Instruction Manua l
• 1 x Warranty Card
* BATTERY NOT INCLUDED
MODEL NUMBER
WG20V
Version number: 005
Advertisement
Table of Contents
Related Manuals for Workzone Titanium WG20V
Summary of Contents for Workzone Titanium WG20V
- Page 1 Xfinity Li-ION 20V Pressure Spray Gun Skin Instruction Manual * BATTERY NOT INCLUDED IMPORTANT MODEL NUMBER WG20V Read carefully before use Version number: 005 Keep for future reference • 1 x 20V Spray Gun Skin • 1 x Extension Lance and Nozzle Adapter •...
- Page 2 Welcome Congratulations in choosing to buy a Workzone Titanium 20V Spray ® Gun (battery / charger not included). All products bought to you by Workzone Titanium are manufactured ® to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 5 Year Warranty.
-
Page 3: Table Of Contents
Contents Application Package Content List Parts description Description of symbols Product Safety Safety Warnings for battery pack General Safety Warnings for Battery Charger Important information – Product care Operating instructions Maintenance Warranty Troubleshooting Technical Specifications AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: WG20V •... -
Page 4: Package Content List
SPRAY GUN - WG20V 1. Application First time users or inexperienced operators pay particular attention to the operation of the 20V Spray Gun, including details of starting and stopping and correct use of the 20V Spray Gun on pages 13-16, as well as the maintenance instructions on pages 17. -
Page 5: Parts Description
3. Parts description Lock-off switch 10. Hose clip On/off switch lever 11. Hose (6m) Hose adapter 12. Floater 20V Battery pack ( 13. Hose filter not included; shown only for illustrative and 14. Hose connector instructional purposes only 15. Carry bag Battery pack release button 16. -
Page 6: Description Of Symbols
4. Description of symbols The instruction manual, rating plate, or on the product itself, may show these symbols. These represent important information about the product or instructions on its use. Caution/Warning: Read all safety warnings and all instructions. Read the instruction manual. RCM marking. -
Page 7: Product Safety
5. Product Safety General safety warnings WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance... -
Page 8: Safety Warnings For Battery Pack
6. Safety Warnings for battery pack a) Do not dismantle, open or shred cells or battery pack. b) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer where they may short-circuit each other or be short-circuited by conductive materials. -
Page 9: General Safety Warnings For Battery Charger
other. n) Recharge only with the charger specified by manufacturer. Do not use any charger other than that specifically provided for use with the equipment. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. o) Do not use any battery pack which is not designed for use with the equipment. - Page 10 4. Do not use chargers for works other than those for which they are designed. 5. Before charging, ensure your charger is matching the local AC supply. 6. The charging device must be protected from moisture. 7. Do not use the charging device in the open. 8.
-
Page 11: Important Information - Product Care
18. Use only compatible ALDI Xfinity 20V chargers with this appliance (not supplied). 8. Important information – Product care NOTE: Xfinity Battery and Charger not included. For any issues related directly to your purchased ALDI Xfinity Battery / charger, contact the Customer Service of the manufacturer as listed on the battery / charger packaging, manual or on the label on the battery / charger. -
Page 12: Operating Instructions
9. OPERATING INSTRUCTIONS NOTE: Before using the tool, read the instruction book carefully. BEFORE OPERATION NOTE: The tool is compatible with ALDI 20V Xfinity batteries and chargers. Xfinity Battery pack and charger is not included with this product; it is shown only for illustrative and instructional purposes only. - Page 13 sure it is locked into position securely. NOTE: Choose a suitable nozzle according to your work. The 0° spray nozzle is applicable for cleaning, and the 25° spray nozzle is most suitable for watering. 3. Attaching the 6m hose (11) to the power nozzle (6) (Fig D1 D2). NOTE: After the 6m hose (11) is attached, check the connection by gently pulling the 6m hose (11).
- Page 14 NOTE: Check whether the hose filter (13) screen is missing before retightening the hose adapter (3) (Fig E2). When retightening the hose adapter (3), tighten securely (using a 17mm spanner, not supplied). Otherwise, it may not draw any water for proper operation. Suitable Connector OPERATION...
- Page 15 2. Watering (Fig G). NOTE: It is recommended to use the 25° spray nozzle for watering. 3. Cleaning (Fig H I). WARNING: Do not connect the spray gun to water supplies that are dirty, rusty, muddy, or corrosive. (Including window cleaning liquids, plant foods, or fertilizers etc.) NOTE: Not recommended for use with salt water;...
-
Page 16: Maintenance
10. Maintenance Cleaning Clean the case only with a damp cloth. DO NOT use solvents when cleaning plastic parts. Plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use a clean cloth to remove dirt, dust, oil, grease etc, then dry well. -
Page 17: Warranty
Your new WORKZONE TITANIUM 20V Spray Gun will more than ® satisfy your expectations. It has been manufactured under stringent WORKZONE TITANIUM ® Quality Standards to meet superior performance criteria. You will find your new 20V Spray Gun easy and safe to operate, and, with proper care, it will give you many years of dependable service. - Page 18 What your 5 year warranty means Great care has gone into the manufacture of this product and it should therefore provide you with years of good service when used properly. In the event of product failure within its intended use over the course of the first 5 years after the date of purchase, we will remedy the problem as quickly as possible once it has been brought to our attention.
- Page 19 Accessories and After Sales Parts The following is available for purchase by visiting https://help.tools/ or calling our customer service hotline on: 1300 889 028 1. 63349-EL and NA: 2. 63349-SN: Spray 3. 63349-HC: Hose Extension Lance and Nozzle (0º and 25º) Clip Nozzle Adapter 4.
-
Page 20: Troubleshooting
12. Troubleshooting Symptom Possible causes Solution Power nozzle (6) is too Lower the spray gun below high from the water 1.5m. source surface. Take out the hose filter (13) Hose filter (13) is blocked. and rinse the parts with clean water. - Page 21 Spray nozzle Fixing nail of the multi- Tighten it with a hex key (not (9) leaks. spray nozzle loosens. supplied). Outlet pressure Spray nozzle (9) is blocked. Replace with a new spray increases nozzle (9). suddenly. Spray Gun There is water remaining drains out Drain all the water completely in the extension lance (7)
-
Page 22: Technical Specifications
13. Technical Specifications Voltage 20Vd.c. Max. pressure 320psi Max water flow rate 120L/h Max. inlet water pressure 0.5MPa Suction height MAX 1.5M Weight (with lance) 1.9kg This 20V Li-Ion Spray Gun complies with the following Standards: Safety: IEC 60335-1 IEC 60335-2-54 AS/NZS 60335.1 AS/NZS 60335.2.54 EMC:... - Page 23 20V Pressure Spray Gun Skin Warranty Details REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 60 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion.
- Page 24 20V Pressure Spray Gun Skin Repair and Refurbished Goods or Parts Notice Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as les stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or les stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost.
- Page 25 This is a blank page AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: WG20V • 63349 • 01/2019...
- Page 26 This is a blank page AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: WG20V • 63349 • 01/2019...
- Page 27 This is a blank page AFTER SALES SUPPORT e-mail: info.aldi@positecgroup.com 1300 889 028 (toll free) MODEL No.: WG20V • 63349 • 01/2019...
- Page 28 ALDI store within 60 days from the date of purchase for a full refund or replacement, or take advantage of our after sales support by calling the supplier‘s Customer Service Hotline. WORKZONE TITANIUM is a registered trademark of ALDI Stores ®...
