Duprex MAF350C Manual

MAF350C
Auto Hand Sanitizer Dispenser
Model No. : MAF350C
Specifications
H x W x D 214 x 116 x 85 mm
8.42 x 4.56 x 3.34 inch
Material
ABS
Power Supply Three (3) C-cell Alkaline Batteries
Battery Life 25,000 Hand washes or 1.5 year stand-by
Volume 0.4ml per dispense
Capacity
500ml Disposable/Interchangeable cartridge
Installation Wall Mount (Screws / Adhesive)

PARTS

Key
Front cover
Décor Plate
See-through
Window
LED indicator
(Red / Green)
IR Sensor

TROUBLESHOOTING

PROBLEM: liquid is not dispensed
1. Check if foam soap has run out
2. Check if Pump Nozzle is clogged
PROBLEM: dispenser does not operate
1. Check if pump nozzle is in securely position
2. RED LED lights up
dispenser is not closed properly: Check if cover of dispenser securely closed
3. RED LED blinks
batteries are low: Check if the batteries need to be replaced
4. GREEN LED lights up
sensor is been detected: Check and remove if an object is in the sensing range
/ before calling for repair of Control Module
2-1

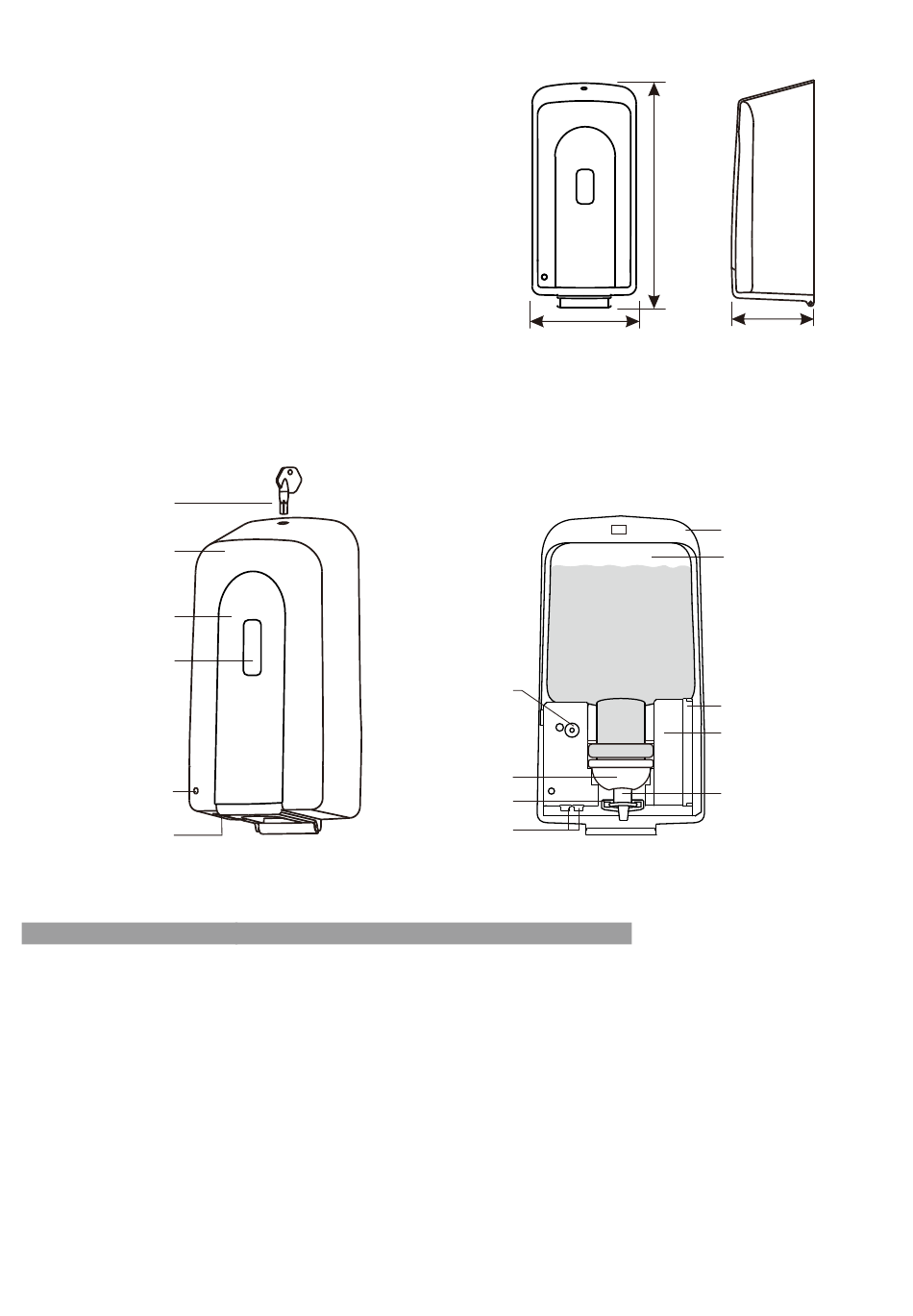

116mm
(4.56")
Safety button
Pump
Pump lever
IR Sensor
214mm
(8.42" )
85mm
(3.34")
Back plate
Foam cartridge
Battery Cover
Control Module
Pump nozzle
