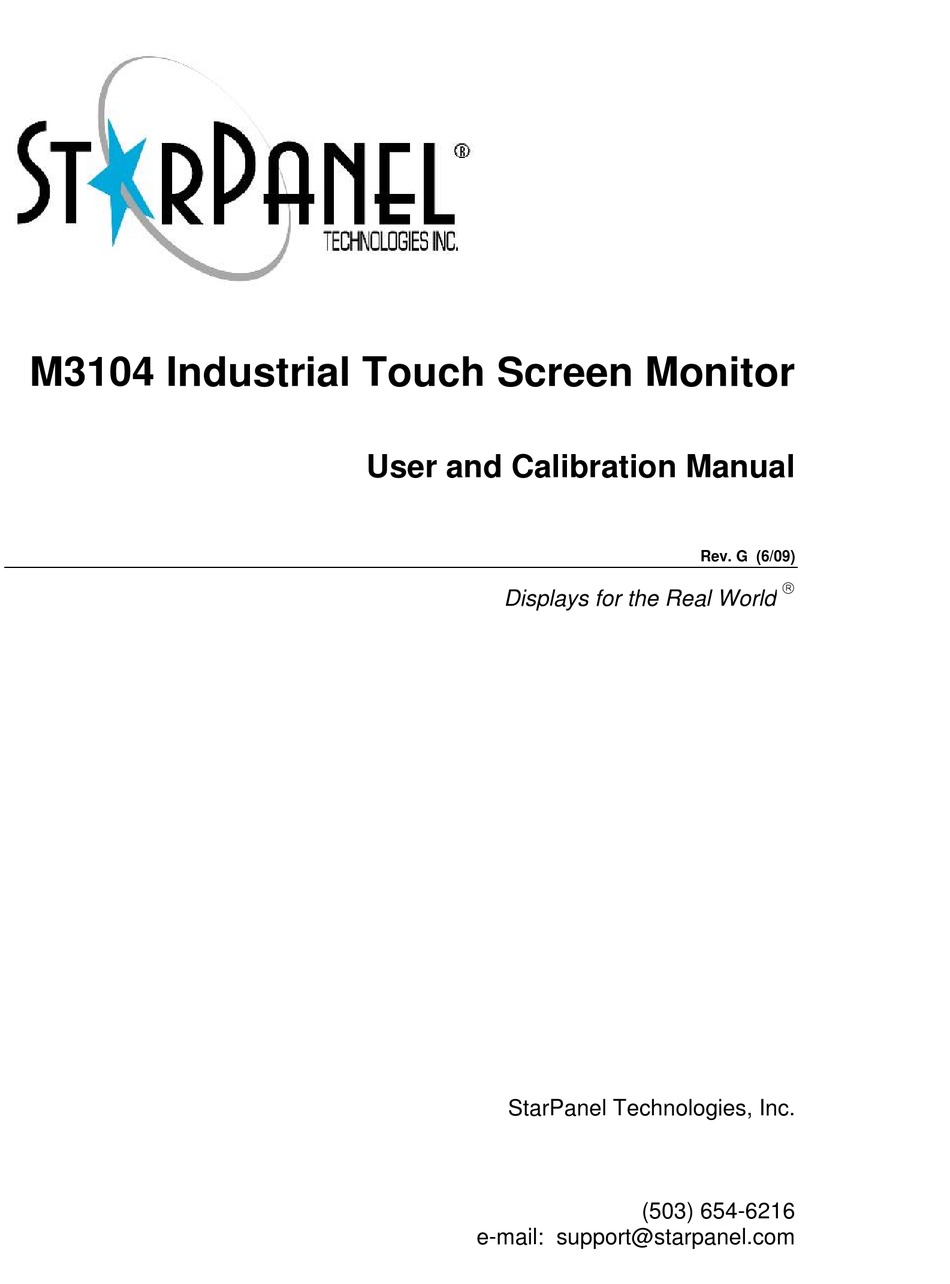

- Page 1 M3104 Industrial Touch Screen Monitor User and Calibration Manual Rev. G (6/09) Displays for the Real World StarPanel Technologies, Inc. (503) 654-6216 e-mail: support@starpanel.com...
- Page 2 All rights reserved. All products or brand names are trademarks or registered trademarks of their respective companies. The information contained in this manual is subject to change without notice. Document contains information for StarPanel M3104 monitor. Printed in the USA...
- Page 3 COMPLIANCE STATEMENT Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 4: Table Of Contents
Table of Contents Welcome to the M3104 Industrial Touch Screen Monitor..........1 Connecting to the M3104 Monitor ................1 Power ........................1 VGA......................... 1 Serial ........................1 General Specifications and System Requirements ............2 Adjustments & Calibration ....................3 Using The Control Buttons ................... 3 Maintenance and Care..................... -
Page 5: Welcome To The M3104 Industrial Touch Screen Monitor
There are three input/output connections to the M3104 monitor: power, serial and video. figure below. Power Your M3104 monitor is powered by connecting a 2.5mm circular jack to a 12Vdc @ 1.5A power supply or greater must be used. Video The video (DB15HD) connection is made by connecting a video cable between the monitor and the video source connector on the PC. -
Page 6: General Specifications And System Requirements
Humidity: 95% Non-condensing The M3104 monitor supports CGA, EGA and VGA compliant video input which complies with the input specification. The vertical refresh rate has a maximum supported frequency of 75 Hz. Many VGA sources can operate at much higher refresh rates and, for CRT monitors, the higher the refresh the more flicker-free the display. -
Page 7: Adjustments & Calibration
M3104 Industrial Touch Screen Monitor Adjustments & Calibration Due to variations in operating environments, user preferences, and hardware, the M3104 is provided with control buttons that allow the user to adjust the settings of the monitor. Using The Control Buttons The monitor has four control buttons and a power on/off button on the rear of the monitor which allow the user to make adjustments. -
Page 8: Maintenance And Care
M3104 Industrial Touch Screen Monitor Maintenance and Care The M3104 has been designed for demanding applications and therefore requires little maintenance. Reasonable care should be taken when connecting or removing the interface cables so that the connector pins are not damaged. This is same care that is required for any computer or monitor. -
Page 9: Energy Saving Mode
Energy Saving Mode Energy Saving Mode When the M3104 monitor is connected to an energy saving compatible computer, the monitor will comply with the control signals to power down the monitor into a lower power state. Caution: The power saving function will automatically put the monitor into active-off state if you turn on the monitor and leave the rest of the system off. -
Page 10: Touch Screen
The M3104 Industrial Touch Screen Monitor is provided with an integrated touch screen overlay. The touch screen is activated by connecting the serial port of the M3104 monitor with the serial port of the PC. You must also install the drivers for the operating system you are using. These drivers are available as download zip files from the support page of the StarPanel web site. -
Page 11: Service Guide
M3104 Industrial Touch Screen Monitor Service Guide Table 5., Service Guide Symptom: Possible Cause Check or Adjust No video or image: No video in Cable connection, input pins No power in Cable connection Wrong resolution setting 640 x 480 VGA... -
Page 12: Technical Support
M3104 Industrial Touch Screen Monitor Technical Support Voice Phone: 503.654.6216 M-F 9:00AM to 4:00PM Pacific Time Fax: 503.654.6486 World Wide Web: www.starpanel.com Email: support@starpanel.com... -
Page 13: Starpanel Technologies, Inc. Limited Product Warranty
M3104 Industrial Touch Screen Monitor StarPanel Technologies, Inc. Limited Product Warranty StarPanel (hereinafter Seller) warrants that upon delivery to the buyer, the product sold hereunder, shall be free of defects in materials and workmanship and that such product shall substantially conform to the specifications provided by the seller. - Page 14 M3104 Industrial Touch Screen Monitor Consequential Damages: Seller shall not be liable for any direct, indirect, special, incidental, or consequential damages including, but not limited to, loss of profits, and/or destruction of other property, caused by any application of the product(s) and/or its integration with other components. Seller's liability shall be limited to the amount paid by the Buyer for the product(s), repair of the product(s), or replacement of the product(s) purchased from the Seller.
