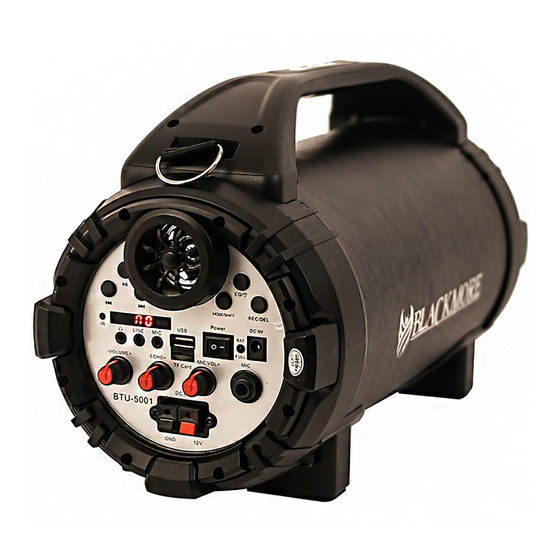

BTU-5001 Portable Audio System
Introduction:
The BTU-5001 is a portable and amplified audio system with integrated MP3 music player, Bluetooth
Connectivity, ¼" MIC Input, 3.5MM Aux Audio input, 3.5mm MIC input, USB, TF Card, FM radio and a record
to USB/TF function. This model boasts LED accent lighting, a rechargeable battery, 12volt power inputs and a
carrying handle and Shoulder strap for extreme portability. Sound is produced by a 5.25" Bass driver
enclosed in a tuned suspension tube and a 1.5" Mid/High frequency driver making a total of 750W max
power handling.
Features:
Portable and Amplified
•
Rechargeable battery
•
MP3 Music Player with TF Card and USB inputs
•
Bluetooth Connectivity
•
FM Radio
•
LED Accent lighting
•
Dual MIC inputs
•
750 watts of total musical output
•
12 V power inputs
•
Caution:
Please read All Operating Instructions before using this product
•
Avoid electrical shock, DO NOT OPEN THIS UNIT, THERE ARE NO REPLACEABLE PARTS INSIDE. Please refer to your
•
warranty information for service.
Do not Expose this product to Moisture, Water, Rain or Snow. Keep away from direct heat sources. Damaged items will
•
not be accepted for warranty
Do not clean this unit with solvents or chemicals
•
Insure that all volume and gain controls are set to "0" when connecting source units
•
