FLUELESS CAT GAS FIRED HEATER
Model: 39" Original
Fully Remote Control
USER INSTRUCTIONS
(TO BE LEFT WITH THE CUSTOMER)
For use in the UK & Ireland on Natural gas at a supply pressure of 20 mbar
or Butane/Propane at a supply pressure of 28 mbar/37 mbar
ESSE Engineering, Long Ing, Barnoldswick, Lancashire BB18 6BN
Tel: 01282 813235 Fax: 01282 816876
Email: enquiries@esse.com Website: http://www.esse.com
GB
IE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Esse Firewall 39" Original
Summary of Contents for Esse Firewall 39" Original

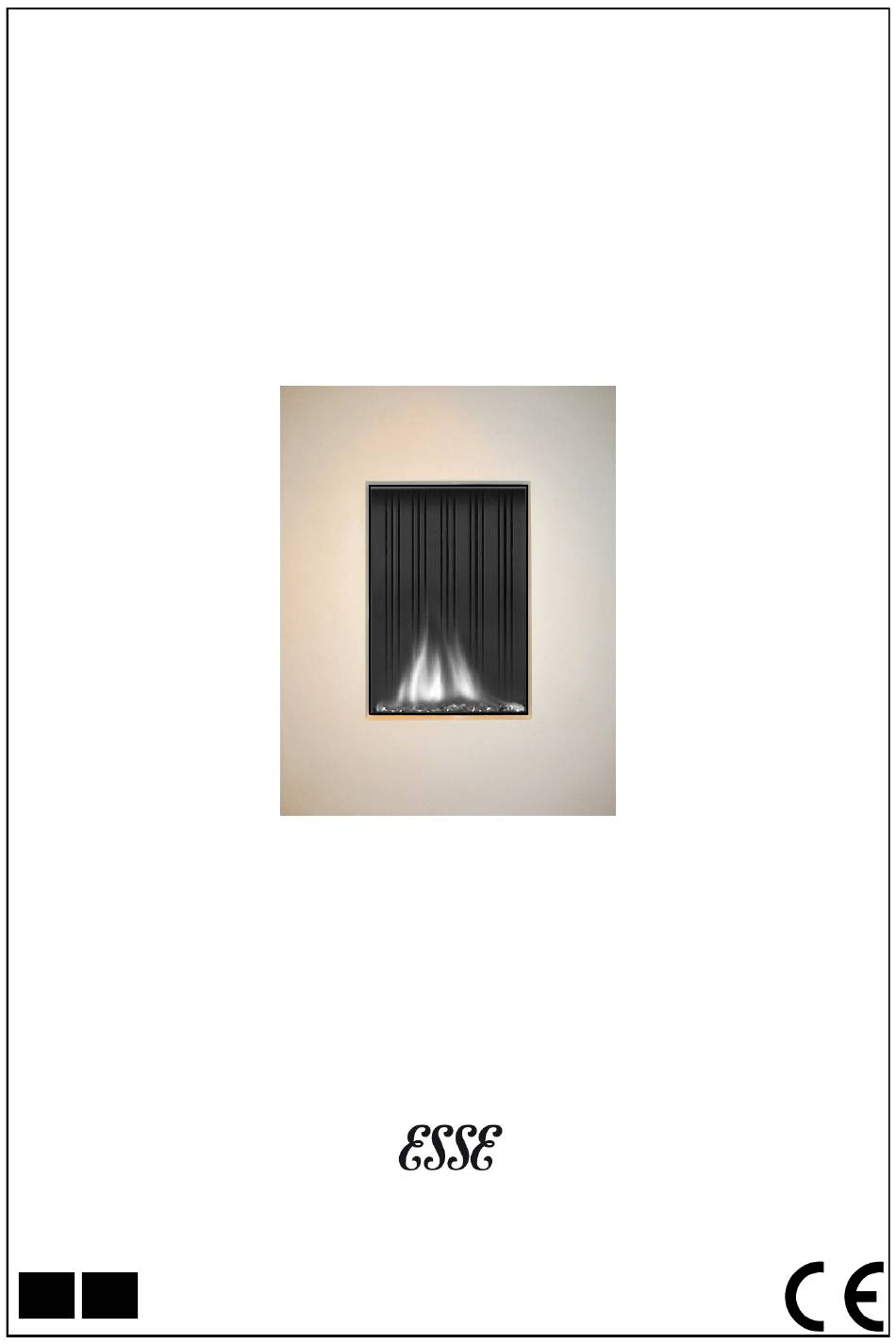

- Page 1 For use in the UK & Ireland on Natural gas at a supply pressure of 20 mbar or Butane/Propane at a supply pressure of 28 mbar/37 mbar ESSE Engineering, Long Ing, Barnoldswick, Lancashire BB18 6BN Tel: 01282 813235 Fax: 01282 816876...
-
Page 2: Table Of Contents
CONTENTS Introduction to Firewalls Page 2 Ventilation Page 7 Important Notes Page 2 Burner Arrangement Page 7 Clearances Page 3 Control for the Heater Page 7 Batteries in Handset Page 4 Combustion Monitoring Page 8 System Handset Operation Page 5 Cleaning Page 8 Set the Electronics Code... -
Page 3: Introduction To Firewalls
1. INTRODUCTION TO FIREWALLS This heater has been individually designed to add charm and character to your home and provides a highly efficient heat source, coupled with the convenience of clean burning gas. Due to newness of materials the heater may give off a slight smell for a period of time after commissioning and fully remote control. This is quite normal and any odours should disperse after a few hours operation. -
Page 4: Clearances
There are always dust particles in the air in every living space, even if it is regularly vacuumed! These particles are visible in rays of sunlight and they will not bother you as long as the concentration of particles in the air remain low. The indoor climate can only be described as bad if these particles are floating through the room in large quali- ties for any reason whatsoever and if the air is additionally polluted by soot and tar WARNING! -
Page 5: Batteries In Handset
4. BATTERIES IN HANDSET Fig. 2b Battery inside the handset Fig. 2a Handset on the reverse side Locate the Zinc Chloride Battery (9V) in Place the Handset on the reverse side and locate the battery compartment , battery compartment. push the panel down to release. Fig. -
Page 6: Handset Operation
5. HANDSET OPERATION Fig. 3a DISPLAY SCREEN TEMPERATURE DISPLAY BATTERY CONTENT LARGE FLAME BUTTON: TIME DISPLAY Press LARGE FLAME button to increase the flame. SMALL FLAME BUTTON: OFF BUTTON: Press SMALL FLAME button to decrease the Hold the OFF button to flame. -
Page 7: Set The Electronics Code
6. SET THE ELECTRONICS CODE (FIRST TIME USE ONLY) A code is selected automatically for all Mertik Maxitrol electronics from among 65000 random codes available. The receiver has to learn the code of the handset: Press and hold the receivers reset button (see Fig 4b) until you hear two beeps. The first beep is short and the second beep is long. -
Page 8: Ventilation
7. VENTILATION Purpose provided ventilation of 100cm is required for this heater. This ventilation must never be blocked or partially blocked. An openable window or equivalent is also required. Ventilation fitted under, or within immedi- ate vicinity of the heater must not be used as it may adversely effect performance of the combustion monitor- ing system (ODS) system. -
Page 9: Combustion Monitoring
TURN OFF GAS TO APPLIANCE Place ON/OFF switch in 0 (OFF position). See Fig 5b. If gas control is accessible turn main valve knob to the OFF full clockwise position. Replace appliance access cover (if applicable). BATTERY REPLACEMENT Handset—When the battery needs changing the low battery indicator will appear on the display. Use a 9 volt quality Alkaline type. - Page 10 05/12 (PP) INSTR.FW-39/u ESSE Engineering, Long Ing, Barnoldswick, Lancashire BB18 6BN Tel: 01282 813235 Fax: 01282 816876 Email: enquiries@esse.com Website: http://www.esse.com...
