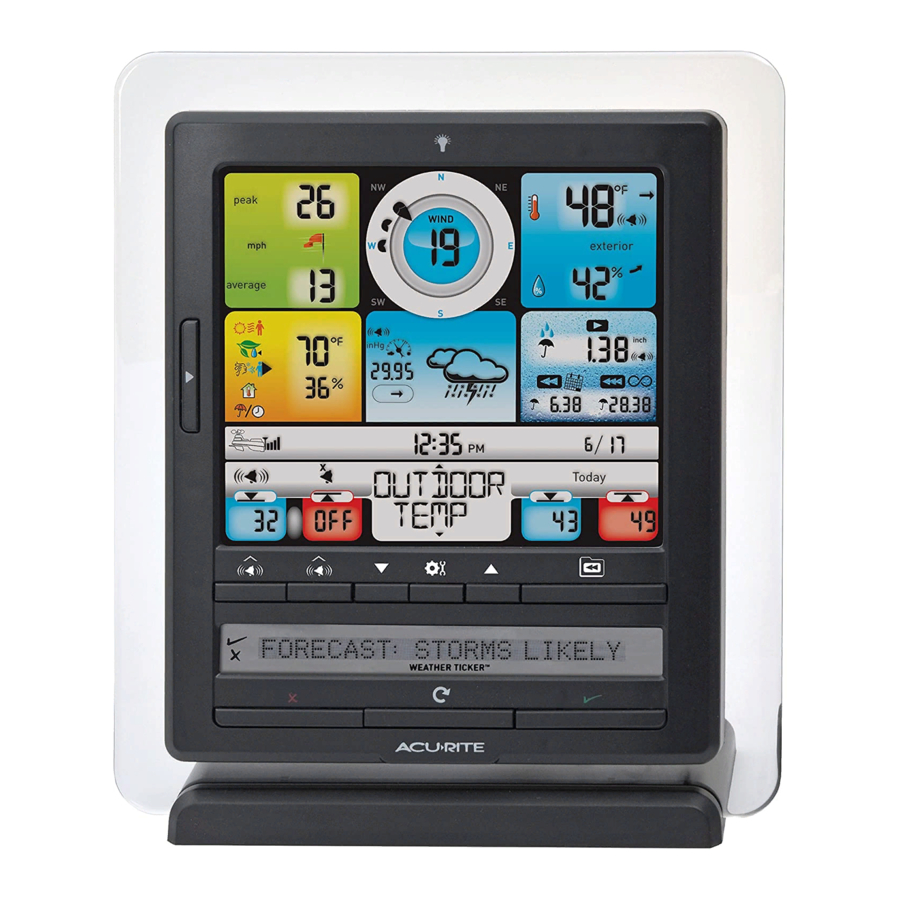

- Page 1 Display for 5-in-1 Weather Sensor model 06006 Package Contents 1. Display with Tabletop Stand 2. Power Adapter 3. USB Cable 4. Instruction Manual This product requires an AcuRite 5-in-1 Weather Sensor (sold separately) to be operational. SAVE THIS MANUAL FOR FUTURE REFERENCE.
- Page 2 Display 3 4 4 27 26 25 24...
- Page 3 & 1. Current Wind Direction Buttons Press to select category (#17) 2. Touch Activated Backlight adjust settings. Momentary during battery power, Button always on/off for power adapter. Press to manually advance through 3. Current Wind Speed Weather Ticker messages. 4. Previous 2 Wind Directions Button 5.
-
Page 4: Clear All
Back of Display BACK OF DISPLAY 1. Plug-in for Power Adapter CLEAR TODAY Clears data recorded since 2. Plug-in for USB Cable 12:00am. 3. Integrated Hang Hole 8. CLEAR ALL For easy wall mounting. Clears all recorded data without 4. DEVICE ID having to reset time and date. -
Page 5: Display Setup
SETUP Display Setup Set the A-B-C Switch Write Down the DEVICE ID The A-B-C switch is located inside 12 digit unique ID needed for the battery compartment. It can online connectivity functions. be set to A, B or C. However, you 24 C8 6E must select the same letter choices for both the 5-in-1 Sensor and the... -
Page 6: Set The Time And Date
Set the Time & Date The clock and calendar are utilized to time stamp history records and other data, so it is important to set the time and date soon after you power on the display. Set the Time 1. Press the “ “ or “ “ buttons until “SET CLOCK?”... -
Page 7: Select Measurement Units
Note: Display reverts to English language when display runs out of power or is reset. Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of both the display and the sensor are critical to the accuracy and performance of this product. -
Page 8: Usb Mode
• Data File: The display logs (or stores) data so that you can download it to a • Web Browser or Smartphone free AcuRite online software, or from a mobile device using the free AcuRite app, available from the Apple App Store or Google Play Store. -
Page 9: Weather Forecast
OPERATION Using the Professional Weather Center Learning Mode Self-Calibrating Forecasting use a unique algorithm to analyze changes in pressure over a time period (called Learning Mode) to determine your altitude. After 14 days, the Learning Mode icon disappears from the display screen. At this point, the self-calibrated pressure is tuned in to your location and the unit is ready for superior weather prediction. -
Page 10: Barometric Pressure
Barometric Pressure Subtle variations in barometric pressure greatly affect the weather. This weather center displays the current pressure with an arrow icon to indicate the direction the pressure is trending (FALLING, STEADY, or RISING). Weather Ticker ™ The Weather Ticker automatically streams your real-time weather information and alerts as scrolling text in the lower part of the display screen. - Page 11 Adjust the Weather Ticker Speed 1. Press the “ “ or “ “ buttons until “TICKER SPEED” is displayed on the Selectable Category part of the display. 2. Press the “ ” button to set the speed preference. 3. Press the “ “ or “ “ buttons to select a speed: SLOW, NORMAL, or FAST. Weather Ticker speed is now set.
-
Page 12: Wind Speed
Programmable Weather Alarms Each Selectable Weather Category features an alarm option. When an alarm alarm settings, and any other relevant data. Some alarms can be customized to alert you when your programmed value is reached. Alarms include: OUTDOOR HUMIDITY HIGH OUTDOOR TEMP HIGH STORM ALARM... -
Page 13: Icon Definitions
ICON DEFINITIONS = Alarm On = Alarm Off = Adjust Mode = Low Value = High Value BUTTON FUNCTIONS Silence a Sounding Alarm Press to activate or The alarm sounds initially for a few minutes, deactivate an alarm. then silences itself. The alarm then sounds Press and hold to set every few minutes afterwards until one of the or adjust an alarm... -
Page 14: Troubleshooting
Troubleshooting Problem Possible Solution • Relocate the display and/or the 5-in-1 sensor. The units must be within 330 ft (100 m) of each other. • Make sure both units are placed at least 3 feet (.9 m) away from electronics that may interfere with the wireless communication (such as TVs, microwaves, computers, etc). - Page 15 Troubleshooting Problem Possible Solution • Make sure both the display and 5-in-1 sensor are placed away from any heat sources or vents (see page 7). Inaccurate • Make sure both units are positioned away from moisture sources (see page 7). temperature or humidity •...
- Page 16 • Verify the PC that the display is connected to is online or on the always connected to the internet. AcuRite mobile app correctly in the PC Connect software on your PC. • Verify that “Sharing” is enabled in the PC Connect software on your PC.
-
Page 17: Care And Maintenance
Care & Maintenance Display Care Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air. Calibration Calibrate Temperature & Humidity The indoor / outdoor temperature and humidity readings can be calibrated on the display to improve accuracy. -
Page 18: Fcc Information
Outdoor temperature & humidity: 36 second updates DATA REPORTING Indoor temperature & humidity: 60 second updates PC Connect CSV Data Logging: 12 minute intervals PC Connect to AcuRite Software/App: 18 seconds DISPLAY MEMORY 512 kilobytes (not expandable) Mac OSX 10.9 (Mavericks) or higher... -
Page 19: Package Contents
Instruction Manual 5-in-1 PRO Weather Sensor model 06014RM Package Contents 1. 5-in-1 PRO Weather Sensor 2. Mounting Hardware 3. Sensor Mounting Bracket 4. Instruction Manual... -
Page 20: Mounting Bracket
5-IN-1 SENSOR 1. Rainfall Collector Funnel 5. Temperature & Humidity Sensors (internal) 2. Solar Cell Panels Converts sunlight into power to run 6. Mounting Point internal aspirating fan. 7. Wind Speed Anemometer Internal Aspirating Fan (not shown) 8. Wind Direction Vane Draws ambient air into 9. -
Page 21: Install Or Replace Batteries
Install or Replace Batteries Remove Rain Gauge Stabilizer Batteries MUST be installed for Locate and remove the rain gauge this product to operate. AcuRite stabilizer (plastic tab) taped into recommends high quality alkaline the bottom of the sensor. The rain... - Page 22 Placement for Maximum Accuracy AcuRite sensors are sensitive to surrounding environmental conditions. Proper placement of the sensor is critical to the accuracy and performance of this product. 5-in-1 Sensor Placement The 5-in-1 sensor is designed to remain outdoors all year long.
-
Page 23: Mounting Options
5-in-1 Sensor Installation Guidelines INSTALLATION HEIGHT Mount the sensor at least 5 feet (1.5 meters) off the ground in an open area. Higher is better for wind measurement- the National Weather Service recommends 33 feet (10 meters) high! MOUNTING OPTIONS The included mounting bracket is designed to screw directly onto wooden posts or surfaces that are 2”x 4”... - Page 24 1. First, ensure 5-in-1 sensor is perfectly level using built-in bubble level. 2. Use compatible companion unit or AcuRite software to monitor during calibration. 3. Make a pin hole in the bottom of a plastic cup. Hold the cup over the rain gauge and You should hear the internal buckets tip and see water drain through the rain gauge.
- Page 25 TEMPERATURE RANGE Outdoor: -40ºF to 158ºF; -40ºC to 70ºC Outdoor: 1% to 99% HUMIDITY RANGE 0 to 99 mph; 0 to 159 kph*; 0 to 86.03 knots WIND SPEED WIND DIRECTION INDICATORS 16 points Measured in inches (in) or millimeters (mm)* RAINFALL WIRELESS RANGE 330 ft / 100 m...
-
Page 26: Instruction Manual
PC Connect for Windows/Mac Instruction Manual Store, Track & Share Readings... -
Page 27: Data Transfer
PC Connect Features PC Connect provides an easy method to share the readings collected by a single 5-in-1 Weather Station with My AcuRite and Weather Underground, and store readings on your computer. Status The Status section provides a summary of the setup, connection, and sharing statuses. From here, you can quickly identify if everything is working as expected or if there is an issue with the setup or a connection. - Page 28 AcuRite and Weather Underground and stored in the Data Transfer CSV file. Weather Sharing You can set up PC Connect to share the readings collected by your 5-in-1 Weather Station with My AcuRite and Weather Underground. From My AcuRite, you can view and monitor your conditions online at anytime from the My AcuRite mobile app.
- Page 29 Set up PC Connect Installing the PC Connect software is simple, and once installed you can store and share readings collected by your 5-in-1 Weather Station.
- Page 30 Windows Download > select Install PC Connect > select Run Now (Run) to install or Save to install later (from your Downloads location, double-click on PC-Connect-Setup to install). For PC Connect for Mac - go to > Help > Download Software > My AcuRite - PC Connect for Mac Download > select Install PC Connect.
- Page 31 1. Select where the Data Transfer CSV files will be saved. By default, they are saved to Documents\AcuRite Weather Station. 2. If you have CSV files from previous installed versions, select whether you want to move the files to the location selected in Step 1.
- Page 32 Connect Indoor Display The Indoor Display is the unit that collects and displays the readings from a 5-in-1 Weather Station. The readings are sent to PC Connect by way of the USB connection between the Indoor Display and your computer. NOTE If your Weather Station is model 01025, 01035, 1036, 01525, or 02032 (model number is located on the back of the Indoor Display), you need to update its MODE setting.
- Page 33 To view your readings online on at myacurite.com or from the AcuRite app, you must set up Weather Sharing in PC Connect. Once set up, create a My AcuRite account or if you already have a My AcuRite account, add the Device ID of the Indoor Display to your account.
- Page 34 3. From My AcuRite Sharing, enter the 12-character Device ID of the Indoor Display. The Device ID is located on the back of the unit. 4. Select Share Now. This activates the Device ID with My AcuRite, allowing you to add the Device ID to your My AcuRite account.
- Page 35 Set up Data Transfers You can set up PC Connect to transfer the readings collected by your 5-in-1 Weather Station to a CSV file. The readings can be manually transferred or set to automatically transfer based on a set schedule. How it works WARNING To avoid a loss of data, do not unplug the Indoor Display or interrupt the data transfer process.
- Page 36 How to manually transfer data to PC Connect 1. Open the PC Connect software. 2. From the Data Transfer section, select Transfer Now. 3. Select where to save the CSV file. The data transfer process starts automatically and a notification message appears when complete. 4.
- Page 37 Set Display Units You can set how reading units are displayed in the Data Transfer CSV file. How to set display units 1. From the Preferences section, select Display Units (Imperial US/Metric). 2. Set the how units are displayed. 3. Select DONE to save your changes.
- Page 38 Set Reading Calibration When sensor placement or an environmental factor may impact readings, setting a reading calibration can improve accuracy. Calibrated readings aare shared with My AcuRite and Weather Underground, and stored in the Data Transfer CSV file. You can set a reading type to a positive or negative degree of calibration. When a reading calibration is adjusted, the reading is offset by the set amount.
- Page 39 By default, PC Connect transmits Station Pressure, the exact pressure measurement taken by the Indoor Display internal barometer, which does not include any adjustment for altitude. If pressure is manually adjusted in the PC Connect software, these pressure adjustments are shared with My AcuRite, Weather Underground, and the Data Transfer CSV files.
- Page 40 Set Always-On Connection Your computer must always be on with an internet connection to share sensor readings with My AcuRite and Weather Underground and to allow scheduled data transfers. In addition, the PC Connect software must always be open and can be minimized.
- Page 41 PC Connect. My AcuRite Sharing Indicates if My AcuRite sharing is configured, and if so, the current status of data being shared. Setup needed - sharing is not setup, enter Device ID and select Share Now.
- Page 42 Does PC Connect have a software auto-update feature? No. Software updates are posted on our web site. To view the latest PC Connect software version, from a web browser, go to > acurite > select Support> from the Categories section select Downloads > select PC Connect Download.
