- Page 1 MGL Avionics Razor 3.1/8” control head for V16 aviation band transceiver and N16 VHF navigation receiver User and Installation manual Page 1...
-
Page 2: Table Of Contents
Table of Contents Note.............................4 General............................4 Document history........................4 Description..........................4 Multiple control heads.........................4 Interface with MGL EFIS systems....................5 Interface with non-MGL EFIS systems..................5 Multiple V16/N16 systems......................5 V16 COM radio interface – operation..................6 Rotary control .........................6 Touch screen...........................6 Ambient light sensor.......................6 Main display - receive.........................7 Main display - transmit........................8 Messages............................9 STUCK PTT !!!........................9... - Page 3 Editing channel memory......................31 Editing a channel......................32 Remote channel lists......................33 Environmental qualification matrix....................34 Typical connection diagrams.....................36 Remote control..........................37 Pinout for 3.18” Razor and 2.25” Vega transceiver control head.........38 Specifications..........................39 Dimensions..........................40 Garmin protocol limitations.......................42 Example Harness schematic....................43 NAVCOM device using V16 and N16..................44 Using audio transformer on the AUX input................45...
-
Page 4: Note
The Razor interfaces to a V16 and or N16 using a two wire CAN bus. Two RS232 ports are provided. RS232 port 1 may be used as interface to third party systems implementing industry standard communication protocols. -
Page 5: Interface With Mgl Efis Systems
You may operate heads and EFIS connection at the same time. Interface with non-MGL EFIS systems Using any Razor or Vega head, RS232 port 1 implements a industry standard, Garmin compatible protocol. As there are several protocol types please select the desired variant in the head setup menu. -
Page 6: V16 Com Radio Interface - Operation

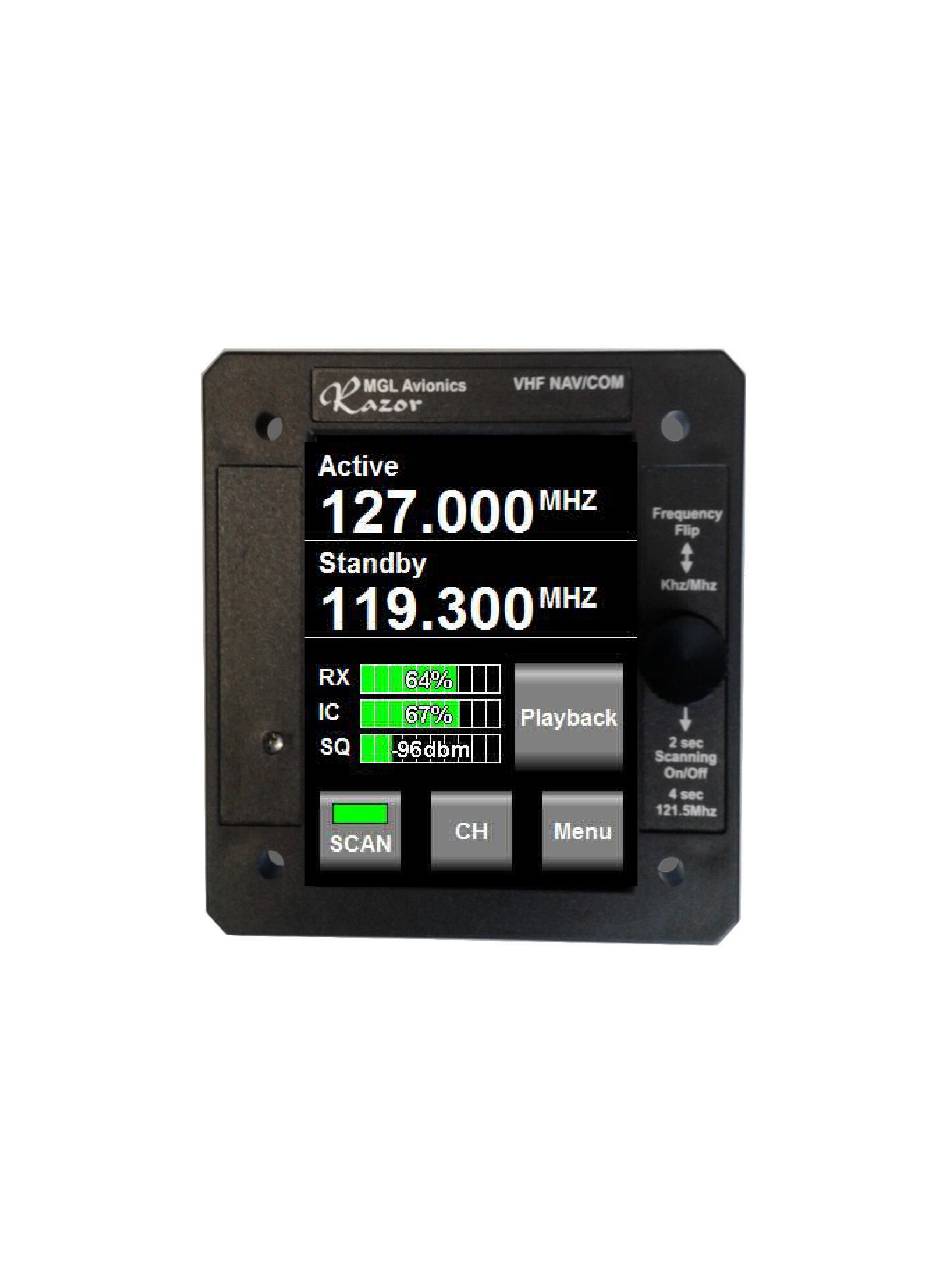

V16 COM radio interface – operation Rotary control Touch screen with push down button Ambient light sensor Rotary control This is used to enter a new standby frequency, flip active and standby frequency, switch scanning on and off and select the 121.5Mhz emergency channel. The Rotary control is also used to select from preset channel lists and can be used for many of the menu and setup functions. -
Page 7: Main Display - Receive
Main display - receive Current receive Text related to frequency Signal level in dbm From channel storage The active Frequency Touch here to Flip active and Standby frequencies Standby frequency, Monitored if scanning Active. Touch here to enter New standby frequency Using numeric keypad Touch here To set volume or... -
Page 8: Main Display - Transmit
requests starts from latest message again. Playback may also be activated via a remote switch. Channel based frequency selection may be operated via remote switches. This can be configured to operate in various modes and number of switches. Main display - transmit Current modulation Active frequency Of TX carrier. -
Page 9: Messages
Messages Messages requiring alerts alternate with the standby frequency field. The following messages may be displayed: STUCK PTT !!! This displays when transmission has been active for 35 seconds. The V16 conforms to the requirements of DO-207. After 35 seconds the V16 reverts back to receive mode even if the PTT remains active. - Page 10 For new installations, please ensure that your antenna has a properly configured ground plane of sufficient size. Page 10...
-
Page 11: Adjusting Volumes And Squelch
Adjusting volumes and squelch The V16 features independent receive and intercom volume controls plus a semi-automatic receiver squelch. To adjust any of these settings, touch the field showing the current values: This results in: Tap to alternate between the three settings. While the setting is shown using a large bargraph, use the rotary control to adjust the setting. - Page 12 noise floor which typically changes a bit with location and frequency. Page 12...
-
Page 13: Entering A New Standby Frequency
Entering a new standby frequency Using the numeric keypad Touch the standby frequency to activate the numeric keypad. Entry starts with the 10's of MHZ (you do not need to type the 100's of MHZ). A blinking cursor shows the digit you are changing. Only valid numerics for a given position may be entered. For example, the 10's of MHZ will only accept the numbers "1", "2"... - Page 14 When satisfied with your selection and you would like to change the Khz, "Click" the knob. Change the 100's of KHZ by rotating the knob. When satisfied, "Click" the knob. Now change the 10's and 1's of the Khz portion by rotating the knob. "Click" when done - you return to the normal display with the new standby frequency.
-
Page 15: Using The Channel List
Using the channel list Touch the "CH" button on the display. which results in: The highlighted Field will be selected If you “click” the Rotary controi Touch or drag The slider with your Finger to rapidly The highlighted field Move though the list Moves if you Rotate the rotary control... -
Page 16: Frequency Lists Downloaded From External Devices
Frequency lists downloaded from external devices COM lists If at least one frequency list downloaded from an external source is available then your channel selection button is bracketed <CH>. Tapping the CH button will bring up a list selection display: Each external list is identified by an airport ID (as downloaded from the external device). -
Page 17: Nav Lists
NAV lists If your Razor is selected as a NAV head then you will be given the choice of either a VOR or ILS (or both) list – provided either of these has been downloaded from an external device. After you choose a frequency from either list or the internal list you will be asked if you would like to select that frequency to the primary or secondary NAV frequency. - Page 18 Page 18...
-
Page 19: N16 Navigation Radio Interface - Operation
N16 navigation radio interface – operation Rotate the rotary control to set the OBS radial. Press the rotary control briefly to swap primary and secondary frequencies. Press and hold for two Tap here to set seconds to change the the primary SCAN state (ON or OFF). -
Page 20: Typical Navigation Displays
Similar, tapping the NAV section of the display changes the display to NAV mode. This allows you control the NAV device. If no activity is detected for 6 seconds the Razor reverts back to the NAVCOM display. While the NAVCOM display is showing the rotary control can be used to adjust the OBS bearing if the primary NAV frequency is tuned to a VOR station. -
Page 21: Adjusting The Obs
Note the CH is bracketed: <CH>. This means externally downloaded VOR and/or ILS frequency lists are available. If there are no brackets, it means you can only select from the internal frequency list. To change either primary or secondary frequencies, simply tap on the frequency. NAV display. -
Page 22: Nav Control
control. The control in this case is speed sensitive – if you turn faster the OBS will change in bigger steps allowing you to set the desired radial very quickly. The “TO/FROM” flag indicator will change automatically based on the current received radial and the selected OBS. -
Page 23: Adjusting The Squelch
Back course selection is indicated on the ILS needles display using 4 sets of “BC” indicators. Ensure you are familiar with localizer operation and back course navigation before using the ILS facilites in the Razor. Enabled back course will reverse the localizer needle as you are approaching the localizer “from behind”. -
Page 24: The Audio Output
When a morse signal is detected the N16 attempts to decode it and sends the result to the Razor head. Up to 4 letters may be contained. These letters will be shown either next to the VOR label or LOC label marked by square brackets. If no code has been detected [----] is shown. -
Page 25: Channel Identification By Text
The Razor will first search any downloaded lists for a match before searching its own channel storage. The Razor will search only appropriate lists – for example it will not search VOR or ILS lists if the Razor is set to COM mode. -
Page 26: The Menu
All of the COM setup items and the text displayed originates from the connected V16 transceiver. Please refer to the V16 transceiver manual for information on the available setups. The "Head" setup groups all of the setup actions you can perform on the Razor head itself, including editing the channel list. Page 26... -
Page 27: Com Setup Menu
Note: items presented here for setup and the text shown is determined by the V16 transceiver, not the head. If you, for example, update the firmware of the V16 and this update changes or adds to the setup functions, then the Razor will reflect these changes without needing an update itself. -
Page 28: No Tx Info/Show Tx Info
Move highlight using Rotary control, select Highlighted item by Clicking rotary control Using touch, drag the List up or down and select Item by touching it without Dragging it Touch here To exit menu No TX Info/Show TX info Change this field between two states to either show TX information (power and VSWR) during TX or not. -
Page 29: 8.33K Channels/25K Channels
NAVCOM mode is selected). This means, regardless of your selection of the Razor mode as COM or NAV the protocol is not affected. This means for example, even if your Razor is selected as COM only – your RS232 port behaves as NAVCOM if a NAVCOM emulation has been selected. -
Page 30: Rotary Rollover/Clamp
Razor head firmware The firmware in your Razor head can be updated by means of a RS232 connection to a PC. You require the new firmware (download from MGL Avionics website) which comes in the form of an application (exe file) that can execute on a Windows PC. -
Page 31: Editing Channel Memory
You may enter both COM as well as NAV frequencies. Should you choose from the channel list in operation, you will be presented with either COM or NAV frequencies depending on the current mode the Razor is operating in. You may use up to 100 channels. -
Page 32: Editing A Channel
Editing a channel Here we selected entry number 3: Frequency to edit Touch here to select Between frequency And text edit mode Channel number Text entry field In frequency edit mode, use the numeric keypad to enter your frequency or use the rotary control in the same manner as if you would be selecting a new standby frequency. -
Page 33: Remote Channel Lists
Remote channel lists Depending on the chosen protocol and capability of external systems channel list(s) can be downloaded to the Razor. These lists are typically short and contain the list of frequencies for one airport. There can be multiple such lists. -
Page 34: Environmental Qualification Matrix
Environmental qualification matrix The environmental qualification is based on the document DO-160G and is identical to that of the V16 transceiver. Temperature and Equipment Categories B2, C1 Altitude Low temperature 4.5.1 -50°C ground survival Low temperature 4.5.1 -30°C shorttime operating Low temperature 4.5.2 -20°C... - Page 35 – no test required Waterproofness 10.0 Equipment identified as Category X – no test required Fluids Susceptibility 11.0 Equipment identified as Category X – no test required Sand and Dust 12.0 Equipment identified as Category X – no test required Fungus 13.0 Equipment identified as Category X...
-
Page 36: Typical Connection Diagrams
This diagram shows the connection of one or two heads to a V16 transceiver. Note that audio, PTT and other transceiver related wiring is not shown for clarity. At minimum you only need 4 wires to connect to a Razor head – power supply, ground and the two CAN bus wires. -
Page 37: Remote Control
100 ohm resistor at any location on the bus without ill effect. Remote control The Razor provides two pins on the D15 connector that can be used to remotely control selection of the standby frequency and frequency “flip”. -
Page 38: Pinout For 3.18" Razor And 2.25" Vega Transceiver Control Head
Frequency flip Channel select Razor control head Frequency flip Channel select down Pinout for 3.18” Razor and 2.25” Vega transceiver control head Supply +9 to +28VDC Supply ground RS232 RX Port 1 RS232 TX Port 1 RS232 RX Port 2... -
Page 39: Specifications
CAN L Ground (Internally connected to pin 2) 10 KeepAlive. Do not connect. 11 A1. Control input. Select desired function in Razor setup menu. 12 A2. Control input. Select desired function in Razor setup menu. 13 Program pin. Do not connect. -
Page 40: Dimensions
Dimensions Dimensions are in mm 77.6 Page 40... - Page 41 63.5 Diameter 4.2 63.5 Page 41...
-
Page 42: Garmin Protocol Limitations
Garmin protocol limitations As part of the setup you can select your Razor to emulate various Garmin protocols used for both COM and NAVCOM systems. The protocols are generally fully implemented but there are some differences. For example there are some protocol items that are related specifically to Garmin systems such as diagnostics information mostly intended for workshops or firmware version information. -
Page 43: Example Harness Schematic
Example Harness schematic Page 43... -
Page 44: Navcom Device Using V16 And N16
NAVCOM device using V16 and N16 Page 44... -
Page 45: Using Audio Transformer On The Aux Input
Using audio transformer on the AUX input Depending on your desired audio source it may be advisable to electrically isolate the source from the V16 (or N16). This could be due to the need to prevent ground loops or if the source is at a different electrical potential.
