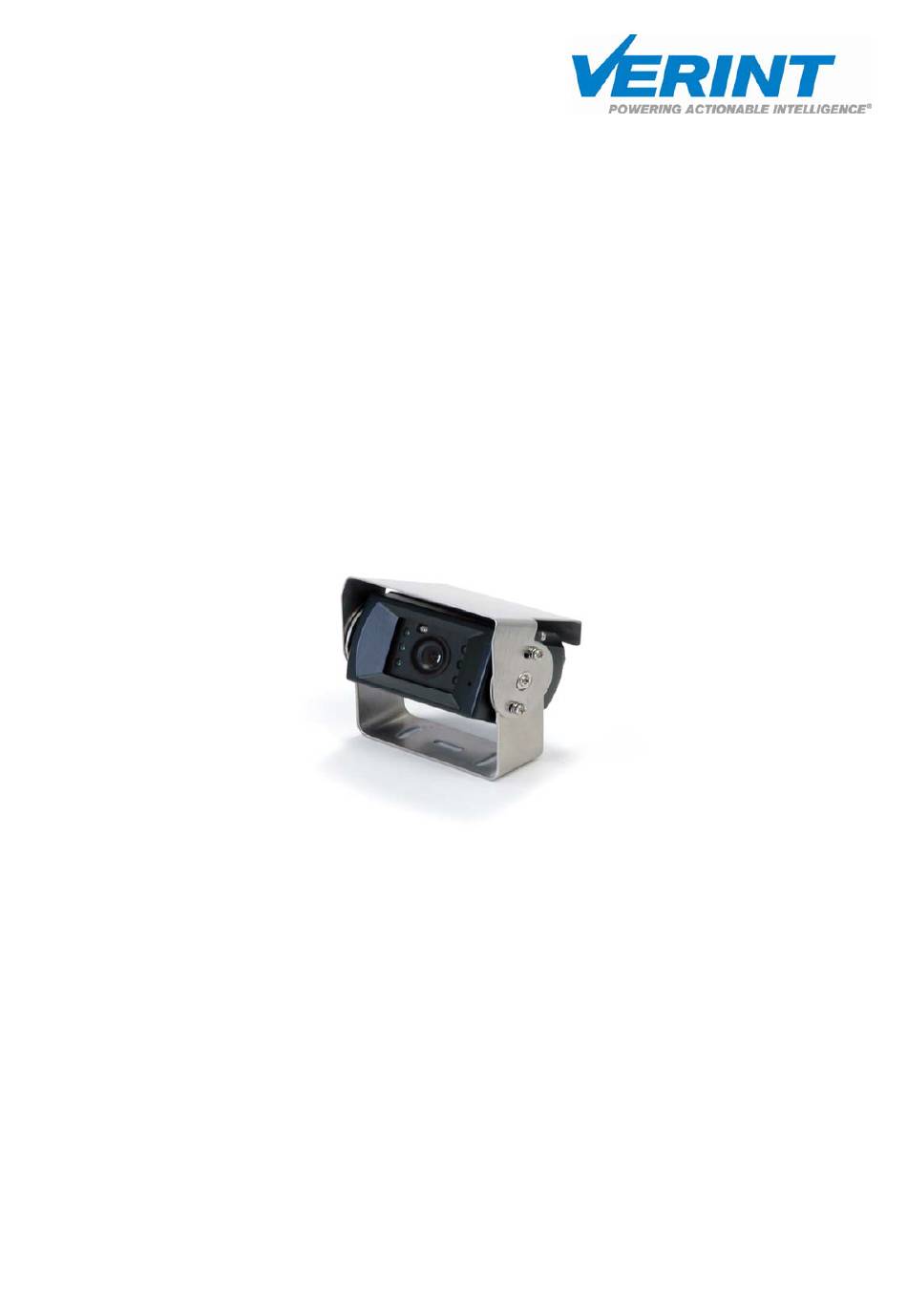

- Page 1 Mounting and Operating Instructions of RP105 Camera for mobile video surveillance 01 2006...
- Page 2 Foreword Dear customer, By selecting a product from Verint Video Solutions GmbH you have purchased a professional device that ensures highest quality and reliability. Thank you for your confidence in our product. We would like to ask you to read through the following information carefully before you begin operating the device. This way you can completely enjoy all the benefits this product provides.
-
Page 3: Table Of Contents
Contents General Information Product Overview ................................ 4 Safety Information............................... 4 Place of Installation ..............................5 Scope of Delivery................................. 5 Accessories / Additional Equipment ........................5 Warranty ..................................5 Installation System Overview ................................. 6 Detailed View ................................6 Installation ..................................7 Connecting Diagram.............................. -
Page 4: General Information
General information Product overview The weatherproof Verint RP105 Back Eye Camera offers a reliable mobile solution in buses and trucks as rearview camera system. The camera comes equipped with a wide-angle lens and makes backing up safer. The driver can immediately see obstacles that suddenly appear and can react to them more quickly. -
Page 5: Place Of Installation
General Information Place of Installation The camera is specially designed for video surveillance in buses and fullfils the required European standards for public transport. Scope of Delivery • High-resolution vehicle back eye camera with 3.0 mm fixed lens • Connection cable •... -
Page 6: Installation
Installation System Overview 12 V DC (connection at recorder) Video signal (connection at recorder) The Back Eye Camera RP 105 requires a stabilized 12 V DC power supply and has a max. power input of approx. 2.5 W. Cable connections It is possible to lay separate cables for all connections. -
Page 7: Installation
Installation Installation Information on camera mounting location • Keep an adequate distance to direct heat sources. • Do not point the camera towards artificial lighting, the sun, the sky or in the direction of a window. The best image quality will be achieved if both camera and lighting point to the area you want to record. -
Page 8: Connecting Diagram
Operate the camera exclusively using the normal service voltage indicated. • The standard Back Eye Camera RP105 is designed to show reversed images. The reverse-image display should be used if the camera is mounted on the vehicle pointing backward. If the reverse-image display is not used, the PIN 6 (yellow wire) should be connected to ground (PIN 7). -
Page 9: Appendix
Appendix Technical Data RP 105 CCD Sensor 1/3“ Interline CCD (Sharp) Max. pixels (h x v) CCIR: 290,000 EIA: 270,000 Horizontal resolution 380 TV lines Sensitivity to light 0 Lux @ 6 IR LED Integrated infrared lighting Automatically activated by brightness sensor if dark outside (5 lux) TV standard CCIR: 625 lines, 50 Hz... -
Page 10: Cleaning And Maintenance / Servicing Information
Appendix Cleaning and Maintenance / Servicing Information Before cleaning or servicing the camera, disconnect it from the power supply. Clean the camera housing with a dry or slightly moist cloth (add a few drops of dishwashing liquid). Never use organic solutions such as thinners, alcohols, petroleum products etc. for cleaning. The interior of the device should only be cleaned by customer service or by qualified professionals. -
Page 11: Technical Support
Appendix Technical support Should difficulties arise while installing or operating the device, we offer you technical support at +49 (0) 4321 269 81 36 or at mobilesupport@verint.com . - Page 12 Configuration Verint Video Solutions GmbH Norderhofenden 12-13 D-24937 Flensburg Tel: +49 (0)461 - 14 15 90 Fax: +49 (0)461 - 14 15 9-10 Email: mobilesupport@verint.com Service hotline: +49 (0)4321 – 269 81 36 Order no.: RP39100100 (RP 105)
