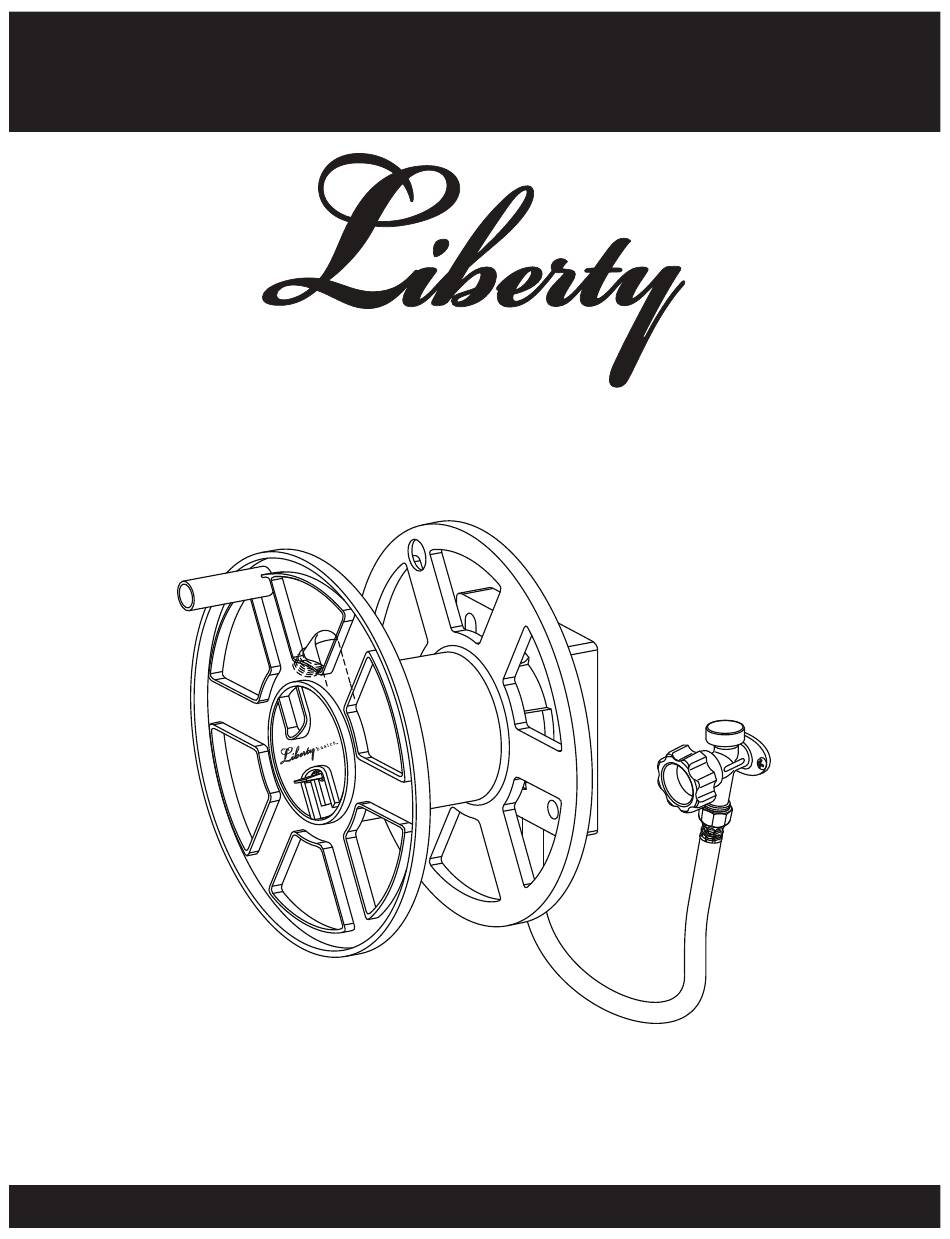

Model #510
Holds 100 ft. of 5/8" Hose
b a s i c s
™
Wall Mounted Basic Hose Reel
Owner's Manual
VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM
OR CALL US TOLL FREE AT 1-866-820-5805
LIBERTY GARDEN PRODUCTS, INC.
1161 SOUTH PARK DRIVE, KERNERSVILLE, NC 27284
IMPORTANT: READ THE OWNER'S MANUAL BEFORE ASSEMBLING
Advertisement
Table of Contents
Summary of Contents for Liberty Garden Liberty Basics 510
- Page 1 ™ Wall Mounted Basic Hose Reel Owner’s Manual VISIT OUR WEBSITE: WWW.LIBERTYGARDENPRODUCTS.COM OR CALL US TOLL FREE AT 1-866-820-5805 LIBERTY GARDEN PRODUCTS, INC. 1161 SOUTH PARK DRIVE, KERNERSVILLE, NC 27284 IMPORTANT: READ THE OWNER’S MANUAL BEFORE ASSEMBLING...
- Page 2 D. Lubricant Tube (1) IMPORTANT: LAY OUT ALL PARTS AND FASTENERS. MAKE SURE ALL PARTS ARE ACCOUNTED FOR. IF ANY PART IS MISSING PLEASE CONTACT LIBERTY GARDEN PRODUCTS AT 1-866-820-5805. DO NOT CONTACT THE RETAILER. VISIT OUR WEBSITE, WWW.LIBERTYGARDENPRODUCTS.COM OR E-MAIL CUSTOMERSERVICE@LIBERTYGARDEN PRODUCTS.COM FOR MORE INSTRUCTIONS.
- Page 3 ASSEMBLY Connect the leader hose (C) to the mounting hub (B) as shown. Do not over tighten leader hose. NOTE: Ensure leader hose (C) is positioned in the Open lubricant tube (D) and apply contents to the mounting hub (B) slot as shown in figure below. O-Rings (B) supply tube as shown.
- Page 4 ASSEMBLY Slide the reel (A) lock tab toward the center of the Push reel (A) onto the mounting hub (B) until it reel to the “LOCK” position. stops. NOTE: To remove reel (A), slide the reel lock tab away from the center of the reel and pull reel away from the mounting hub.
- Page 5 INSTALLATION This hose reel must be mounted to a solid masonry wall or to wall studs. Tip: Remeber to use the correct size and quantity of hardware to support the total weight of the unit. A standard 100’ length of garden hose weighs approximately 15 lbs. Filled with water, the additional weight can exceed 20 lbs. The mounting hardware must be able to support the combined weight of the unit, garden hose, plus water.
- Page 6 CARE AND MAINTENANCE WINTERIZING AND STORAGE Drain the hose reel prior to the onset of freezing temperatures. If any trapped water freezes, it may cause damage to the hose reel, hose, and even your pipes. Store the entire unit - including hose reel and hose - inside your garage or storage shed at above-freezing temperatures.
- Page 7 To obtain performance under this limited warranty, Customer shall notify Company in writing (to Liberty Garden Products, Inc., 1161 South Park Drive, Kernersville, NC 27284, Attn: Customer Service / Warranty Department), by email (to customerservice@libertygardenproducts.com), or by telephone (to (336) 992-3595) with a full description of the defect that is covered by warranty and a copy of the dated proof of purchase of the applicable product.
- Page 8 Guilford County, North Carolina, and both parties expressly consent to the personal jurisdiction and venue of the North Carolina state and federal courts for such actions. ™ “Liberty” is a registered trademark of Liberty Garden Products, Inc. Kernersville, NC. All Rights Reserved 2018 Updated 11/8/2018...
