Summary of Contents for YDI EtherLeap

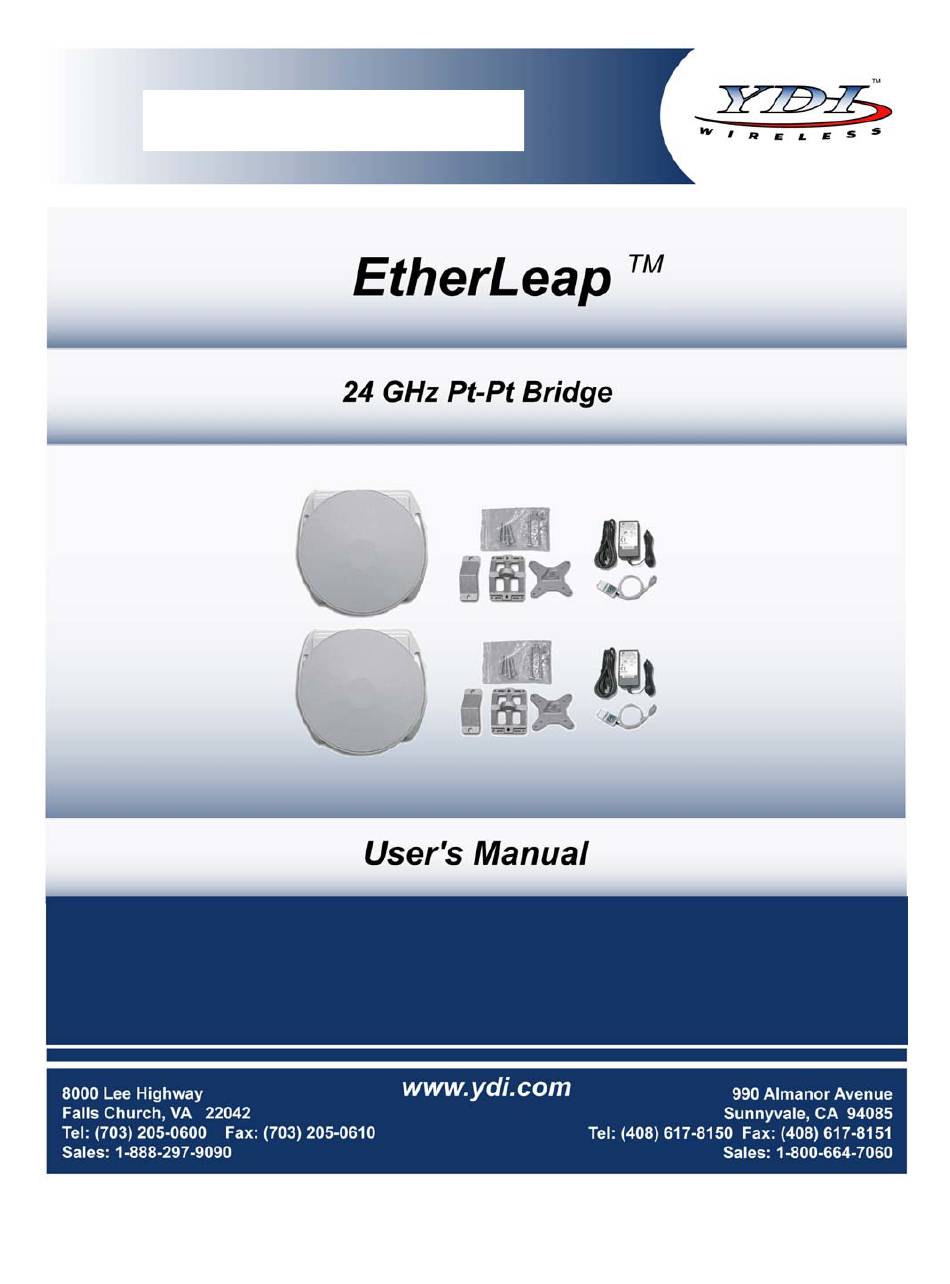

- Page 1 Preliminary Version 1.0 May 2003...
- Page 2 YDI Wireless (YDI) warrants that your device is free of defects in material and workmanship for a period of one year after initial purchase. YDI will, in this period of time, repair or replace, any YDI product returned to the factory, freight prepaid.
-
Page 3: Table Of Contents
Making Final Adjustment to Maximize Received Signal ...............7 © 2003 YDI Wireless. All Rights Reserved. No part or parts of this document may be reproduced, translated, stored in any electronic retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopied, recorded or otherwise, without the prior written permission of YDI Wireless. -
Page 4: Overview
The EtherLeap operates with a 48 VDC Adapter. All devices located inside the box get their power from a DC Power Injector which puts DC power onto the outdoor rated Ethernet cable (Power Over Ethernet, or POE). -
Page 5: Etherleap Kit
• CD-ROM with Manager software • User’s Manual Two YDI outdoor Ethernet cables must be ordered separately. Available lengths are 50, 100, 200, or 300 foot. The latest software and User’s Manuals can also be found at: http://www.ydi.com/support/downloads.php, and http://www.ydi.com/support/documents.php. -
Page 6: Installation
The Ether Leap kit comes with a 110/220 VAC to 48 VDC power supply that has a standard barrel plug [center pin positive (+) tip and outer ring negative (-)]. One red LED is present on the back of the EtherLeap (see Figure 2.1): •... -
Page 7: Hardware Installation
Bracket 1. Fit the adaptor bracket (A) to the four M5 studs protruding from the back of the EtherLeap unit, by aligning the four mounting studs on the back of the unit with the adaptor bracket holes and securing to the unit using four M5 nuts, flat washers, and lock washers, as shown in Figure 2.3. - Page 8 EtherLeap User’s Manual 3. Fasten the EtherLeap unit to the pole using pole clamp (C) and two M8 x 70L bolts, lock washer, and flat washer, as shown in Fig 2.4 (you may need to use two M8 x 40L bolts if you are fastening the EtherLeap to a 1.75”...
- Page 9 Injector. 9. Perform antenna alignment procedures at both sites. Proper antenna alignment is crucial for the correct operation of the EtherLeap system and should only be accomplished by experienced professionals. After that your installation is complete. Figure 2.7 – Detail Showing Ground Cable Connection (this provides maximum lightning protection) Version 1.0...
-
Page 10: Making Final Adjustment To Maximize Received Signal
The purpose of these steps is to adjust the Line-of-Sight of the EtherLeap unit to maximize the main lobe signal level. During this process, the second EtherLeap unit at the far end of the link must also be at the same stage of the installation procedure and powered ON. - Page 11 EtherLeap User’s Manual Figure 2.8 – Final Line-of-Sight Adjustment and Signal Optimization Rotate in this plane for azimuth alignment Rotate in this plane for elevation alignment Azimuth adjustment bolts Elevation adjustment bolt Outdoor Ethernet Cable To AC input DC Power Injector...
