Page 3: Table Of Contents
BW / CW/VW/BWS Series Indicator Technical Manual CONTENTS 1. SPECIFICATION..…………………………………………………………………. 3 2. INTRODUCTION…………………………………………………………………... 4 3. INSTALLATION……………………………………………………………………. 5 Precautions …………………………………………………………………………5 Parts………………………………………………………………………………… 6 Installation………………………………………………………………………….. 6 Connect Adaptor and Charging…………………………………………………...7 4. KEYS DESCRIPTION……………………………………………………………... 8 Key Board…………………………………………………………………………... 8 Secondary functions of the keys…………………………………………………9 Display………………………………………………………………………………9 5. -
Page 4: Specification
BW / CW/VW/BWS Series Indicator Technical Manual 1. SPECIFICATION Model BW/VW/CW BW-E BWS-E 1.2” LED 52mm LCD 1.2” LED Display 52mm LCD Housing ABS Plastic Operating Temperature -10° C - 40° C / 14° F - 104° F Resolution 1/6000 (OIML Approved) Key Pad 7 Keys Power... -
Page 5: Introduction

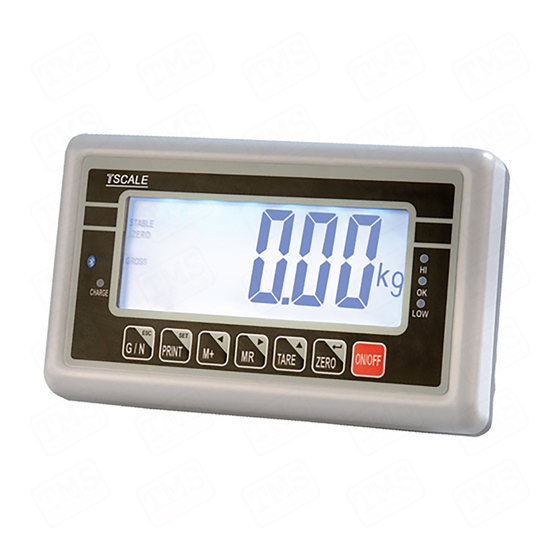

BW / CW/VW/BWS Series Indicator Technical Manual 2. INTRODUCTION The BW/CW/VW/BWS series weighing indicator that amplifies signals from a load cell, converts it to digital data and displays it as a mass value. It is suitable for general weighing or more specialized applications such as check weighing, animal weighing and accumulation applications. -
Page 6: Installation
BW / CW/VW/BWS Series Indicator Technical Manual 3. INSTALLATION Precautions The weighing indicator is a precision electronic instrument, handle it carefully. Do not install the scale in direct sunlight. Verify the local voltage and receptacle type are correct for the scale. -
Page 7: Installation
BW / CW/VW/BWS Series Indicator Technical Manual Installation Place the Indicator on a table or connect with proper stand. Connect the plat form load cell cable in to the indicator load cell connecter. Load cell connecter is locating back side of the indicator. ... -
Page 8: Connect Adaptor And Charging
BW / CW/VW/BWS Series Indicator Technical Manual Connect Adaptor and Charging To charge the battery insert the adaptor pin to jack. Adaptor simply plug into the mains power. The scale no needs to be turned on. The battery should be charged for 12 hours for full capacity. ... -
Page 9: Keys Description
BW / CW/VW/BWS Series Indicator Technical Manual 4. KEYS DESCRIPTION Key Board Keys Description Power turn ON/OFF Set the Zero Display To perform a tare function, Subtracts weights. Memory recall key, show the stored values from the memory Accumulator key, current values will store to the memory To send the data to printer or PC Shift to Gross / Net Weight. -
Page 10: Secondary Functions Of The Keys
BW / CW/VW/BWS Series Indicator Technical Manual Secondary functions of the keys Function Keys To confirm the selected menu To change the menu and active digit To move the active digit to right To move the active digit to left To enter in to the menu Escape from the menu to normal operation. -
Page 11: Operation
BW / CW/VW/BWS Series Indicator Technical Manual 5. OPERATION Initial Start-up Warm-up time of 15 minutes stabilizes the measured values after switching on. 5.1. Basic Operation 1. Power On/Off: Switch on the balance by pressing on/ off key. The display is switched on and the test is started and if want to switched off, press again the key. -
Page 12: Check Weighing
BW / CW/VW/BWS Series Indicator Technical Manual 5.2. Check Weighing It can set an upper or lower limit when weighing with the limits range. During the limit controls dividing the unit will indicate whether a value upper or lower limits with an alarm sound . 5.2.1. -
Page 13: Accumulation
BW / CW/VW/BWS Series Indicator Technical Manual Check mode ng : When the weight is out of the limits, the beeper will be sounded and OK will shown. Note: Check weighing available only when weight more than 20d 5.3. Accumulation The scale can be set to accumulate manually by pressing key. -
Page 14: Parts Counting
BW / CW/VW/BWS Series Indicator Technical Manual Automatic Accumulation Operation Place the load on the platform. When display gets STABLE indication, display will be show acc 1 then will be show the total saved value. These displays will be shown only three seconds. -
Page 15: Keyboard Lock
BW / CW/VW/BWS Series Indicator Technical Manual 5.6. Keyboard Lock It can set lock key board, for settings, see the parameter p 4 oth » lock When the keys are not using with in 10 minutes, the keys will be lock automatically. - Page 16 BW / CW/VW/BWS Series Indicator Technical Manual Bl au To set auto option. When start to use back light setbl will be on and when stop the operation back light also will off. Bl on To set always on. After turn on the power, back light also will be on.
-
Page 17: Parameters
BW / CW/VW/BWS Series Indicator Technical Manual 6. PARAMETERS To set parameter, you should short K2 jumper, then turn on the scale. Press key during the self checking. Display will be show pn Press to enter, display will be show po chk Menu Sub Menu Description... - Page 18 To set the parity Options: 7 e1 / 7 o1 / 8 n1 Ptype To set printer model Options: Tpu p : set the Tscale printer tpup Lp50 : Set the Tscale printer LP-50 Deci To set to use decimal P 2 cal Options;...
-
Page 19: Calibration
BW / CW/VW/BWS Series Indicator Technical Manual 7. CALIBRATION To set calibration, turn on the scale. Press key during the self checking. Display will be show pn Press to enter, display will be show po chk Press until display will be show p 2 cal ... -
Page 20: Rs-232 Output
BW / CW/VW/BWS Series Indicator Technical Manual 8. RS-232 OUTPUT 8.1. Specifications: RS-232 output of weighing data Code : ASCII Data bits : 8 data bits Parity :No Parity Baud rate : 600bps to 9600bps selectable 8.2. Connecter: RS-232 Output Pin 2: Input Pin 3: Out put Pin 5: Signal Ground... - Page 21 BW / CW/VW/BWS Series Indicator Technical Manual Con2: Head Head Head Head Weig Weig Weig Weig Weig Weig Termin Termin Tare1 Tare2 Tare3 Tare4 Tare5 Tare6 ator1 ator2 Header0=02H Header1 follow decimal point Decimal point=0, header1=22H Decimal point=1, header1=23H Decimal point=2, header1=24H Decimal point=3, header1=25H Decimal point=4, header1=26H Header2 follow weigh status, default value=20H...
-
Page 22: Error Code
BW / CW/VW/BWS Series Indicator Technical Manual 9. ERROR CODE Error Message Description Solution ----- Maximum load exceeded Unload or reduce weight Err 1 Incorrect date Enter the date by using format “yy;mm:dd” Err 2 Incorrect time Enter the time by using format “hh:mm:ss”... -
Page 23: Drawing
BW / CW/VW/BWS Series Indicator Technical Manual 12. DRAWING 12.1. BW/CW/VW Drawing - 22 -... -
Page 24: Bw/Cw/Vw Parts List
BW / CW/VW/BWS Series Indicator Technical Manual 12.2. BW/CW/VW Parts List Parts Name Spec Key Panel Display Protection Plate Front Cover Main PCBA Insulation Washer 8x3.1x1.5t Self Thread Screw 3x10 Screw M3x16 (Optional) Insulation Washer 8x3.1x1.5t (optional) RS-232 PCBA (0ptional) Seal Ring Screw Column 5.8x3.8x10H (Optional) -
Page 25: Bws Drawing
BW / CW/VW/BWS Series Indicator Technical Manual 12.3. BWS Drawing - 24 -... -
Page 26: Bws Parts List
BW / CW/VW/BWS Series Indicator Technical Manual 12.4. BWS Parts List Parts Spec Key Panel Front Cover Display Protection Plate M3*6 Main PCBA Washer 8x3.1x1.5 Star (+) Self Thread screw M3x8 Water Proof Rubber Bar Star (+) Screw M4x10 Washer Battery Clamp Washer Star (+) Big head Screw...
