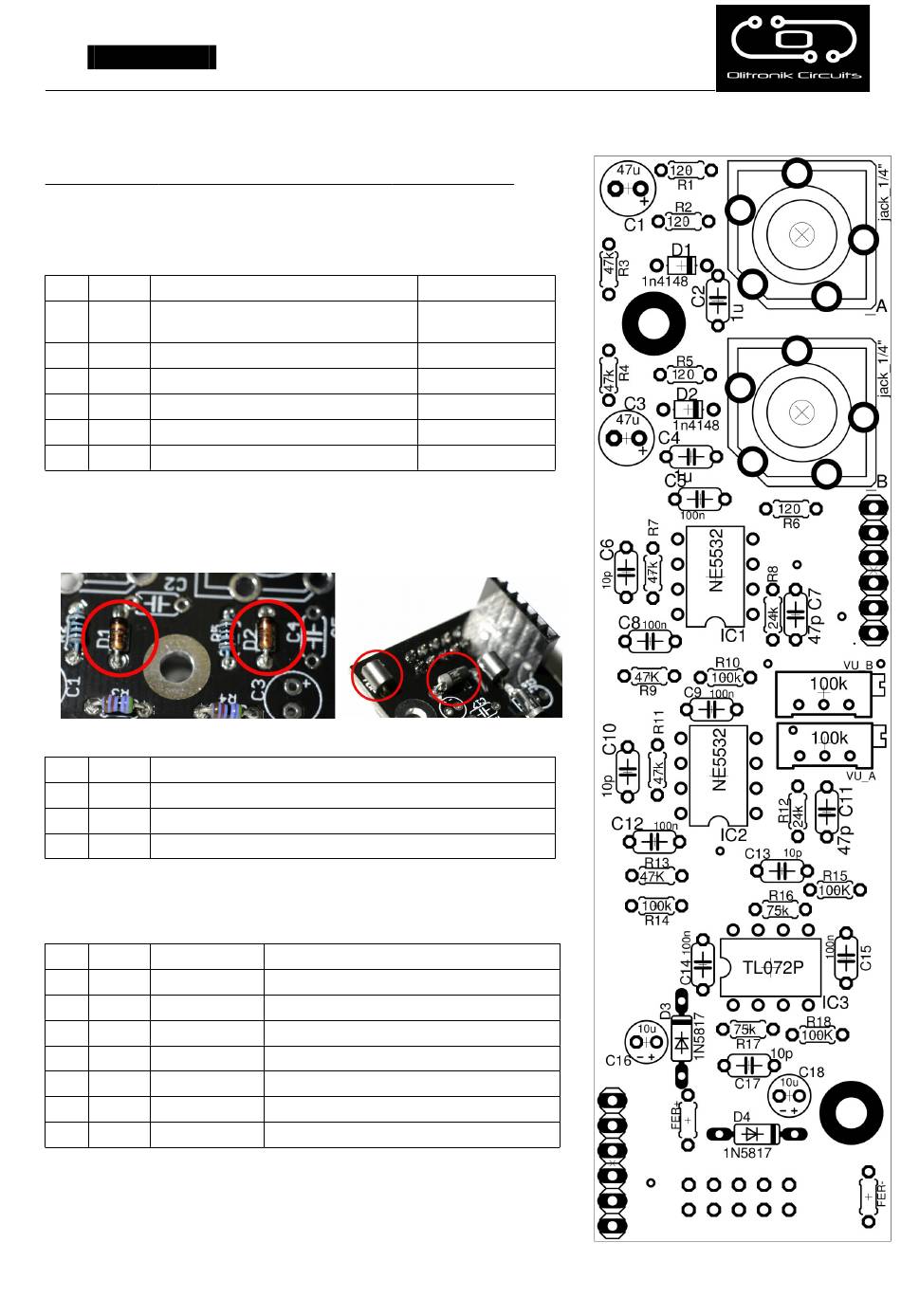

Olitronik Circuits Pro OUT Assembly Manual

Pro OUT
Open the main board bag
1)
Solder the resistors according to the suggested value in the drawing.
You can identify its value with the colour code or with a multimeter.
QTY VALUE
6 47k Yellow, violet, black, red, brown
4 100k Brown, black, black, orange, brown
4 120 Brown, black, black, black, brown
2 24k Red, yellow, black, red, brown
2 75K Violet, green, black, red,brown
2)
Now with the diodes, observe the correct polarity, and the ferrites
using a cut leg of the diodes D3 and D4.
QTY VALUE
2 1N4148 D1, D2 (polarized)
2 1N5817 D3, D4 (polarized)
2 FER+ FERr-
3)
Now with the capacitors.
QTY VALUE CODE
6 100n 104
4 10p 100
2 1uF 105
2 47p 470
2 47uF 47uf
2 10uF 10uF
(v.1.2) ASSEMBL Y MANUAL

MAIN PCB

CODE
NAME
NAME
C5, C8, C9, C12, C14, C15
C6, C10, C13, C17
C2, C4
C7,C11
C1, C3 (polarized)
C16, C18 (polarized)
NAME
R9, R3, R4, R7, R11,
R13
R15, R18, R10, R14
R1, R2, R5, R6
R8, R12
R16,R17
