Summary of Contents for Ansul AUTOMAN II-C
- Page 1 ANSUL INSTALLATION ANSUL OPERATION AND AUTOMAN II-C ® MAINTENANCE RELEASING MANUAL DEVICE 001799...
- Page 2 This manual is intended for use with the ANSUL AUTOMAN II-C Releasing Device. Those who install, inspect, maintain or service this releasing device, should read the entire manual. Specific sections will be of particular interest depending upon one’s responsibility. ANSUL AUTOMAN II-C is an electrical/mechanical device. It requires periodic care.

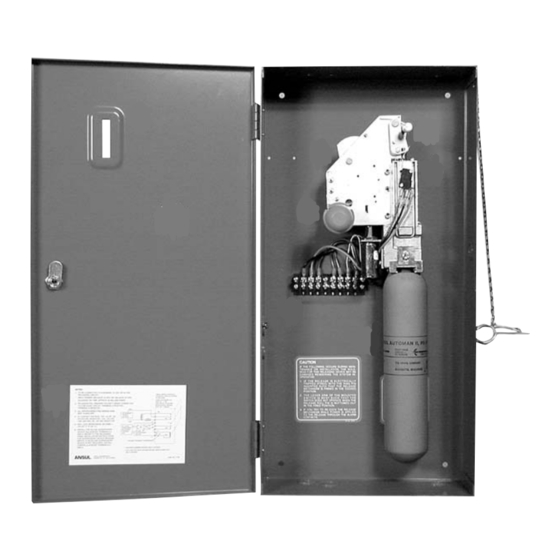

- Page 3 DESCRIPTION where the ambient temperature is never less that 32 °F The ANSUL AUTOMAN II-C is shown in Figure 1 and 2. It is (0 °C) or greater than 120 °F (49 °C). If ambient tempera- comprised of a metal enclosure which contains a spring- tures in the area of the actuation cartridge fall below 32 °F...
- Page 4 004294 (25.4 mm) MOUNTING “ANSUL AUTOMAN” II-C RELEASE The reliability of an Ansul fixed nozzle fire suppression sys- tem depends greatly upon proper installation of the releasing device, associated equipment and wiring. Unless noted oth- erwise in the fire suppression system manual, the mounting location for the ANSUL AUTOMAN II-C release must be maintained within a temperature range of 32 °F to 120 °F...
- Page 5 RELEASE.” REMOTE MANUAL PULL STATION INSTALLATION (CABLE TYPE) The remote pull station, (Part No. 4835) allows the ANSUL AUTOMAN II-C to be manually actuated from some point distant from the release. Refer to appropriate NFPA Standards and the ADA (Americans with Disabilities Act) for...
- Page 6 Observe polarity when connected to a WIRING THE “ANSUL AUTOMAN” II-C RELEASE release circuit; terminal 4 positive, terminal 8 The ANSUL AUTOMAN II-C is designed for use with the sep- negative. arately listed or approved fire detection and releasing control...
- Page 7 Tests should be conducted to verify that the releasing control unit is operating properly prior to conducting FIGURE 9 release circuit testing on the ANSUL AUTOMAN II-C release. 001801 TEST OF WIRING TEST ACTUATION OF FIRE SUPPRESSION SYSTEM...
- Page 8 (Part No. 197). CARTRIDGE AND PRESSURE RELIEF DEVICE SELECTION The ANSUL AUTOMAN II-C can be used as a release mech- anism in a variety of ways and with a variety of suppression systems. The limitations of the release mechanism, when...
- Page 9 6-16-95 Page 7 MAINTENANCE The ANSUL AUTOMAN II-C release is a mechanical device. It requires periodic care. Maintenance, to provide maximum assurance that your release will operate effectively and safe- ly, should be conducted at regular intervals, not more than six-months apart, or when specifically indicated by an inspection.
