SWELLPRO C1 - XR User Manual

AC/DC Smart Balance Charger
User Manual
Model: C1 - XR
WARNING:
The SplashDrone 3+ utilizes high voltage LiHV battery technology in the
drone battery.
The battery charger supplied with the SplashDrone 3+ is only suitable for
charging SwellPro LiHV batteries and the LiPo batteries for the Splash-
Drone 3+ remote controller.
Charging non-LiHV, low voltage LiPo drone batteries (including the
batteries for the older SplashDrone 3) with the LiHV charger is dangerous
and may cause the battery to catch fre or explode.
Please check www.swellpro.com for the
latest version of this manual.
www.swellpro.com

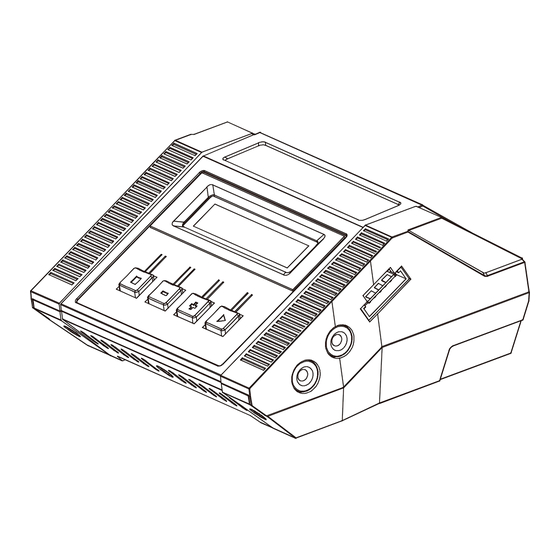

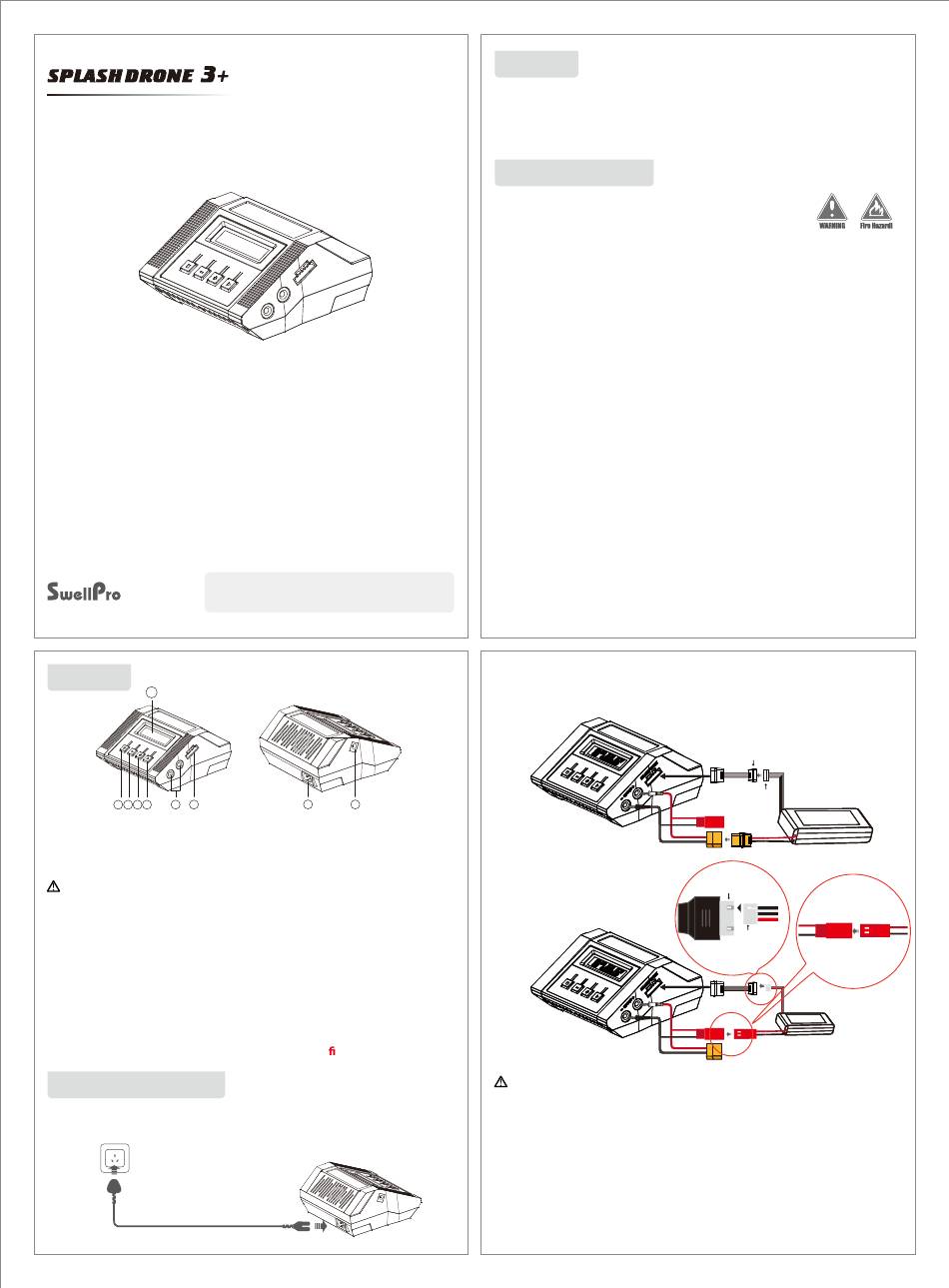

3.Charger
7
1 2 3 4 5 6
1. Mode Switch 4. Start/Confirm
2. Decrease 5. Main Output
3. Increase 6. Balance Interface
WARNING:
The SplashDrone 3+ utilizes high voltage LiHV battery technology in
the drone battery.
The battery charger supplied with the SplashDrone 3+ is only suitable
for charging SwellPro LiHV batteries and the LiPo batteries for the
SplashDrone 3+ remote controller.
Charging non LiHV, low voltage LiPo drone batteries (including the
batteries for the older SplashDrone 3) with the LiHV charger is
dangerous and may cause the battery to catch re or explode.

4. Connection instructions

1. The charger can be connected to an AC outlet (100~240V AC) or to a suitable
high-current DC source 11~18V such as a car charging port or cigarette lighter
adapter.
AC input connection
V2.1
8 9
7. LCD Screen
8. AC Input
9. DC Input (for connection to a car
charging port)
2

1. Foreword

Thank you for purchasing this SwellPro product, please read the entire contents of
this manual thoroughly, to comprehensively familiarize yourself with the product
before using it.
The safety precautions in this manual are only intended to supplement local
safety regulations.

2. Important Precautions

Lithium batteries store a large amount of energy. Care
must be taken to ensure that batteries and chargers are in
good order and are compatible.
1. Do not use this product in direct sunlight, rainy or moist environments.
2. This product should be kept away from dangerous materials such as heat
source, high pressure, water, flammable gas and corrosive agents. Operate the
charger in a suitable environment 5 °C ~ 45 °C.
3. The product should be placed on a horizontal surface. Ensure the charger has
sufficient ventilation(recommended >50cm).
4. Do not cover the product or battery during operation. Do not place the
battery on top of the charger.
5. Do not charge non-rechargeable lithium batteries or incompatible batteries.
6. During operation, the charger and battery should be placed on a strong
anti-flammable and non-conductive surface. Do not charge batteries on a car
seat, carpet or other similar surfaces.
7. Only charge compatible batteries. Charging incompatible batteries is a fire risk.
8. Do not charge or discharge a battery that has been physically damaged.
9. Do not disconnect the input line during charging. After charging has
completed, disconnect the battery and then the input line.
10. Keep the charger clean and dry.
11. Do not modify or disassemble this product.
12. Avoid using this product during thunderstorms.
13. Do not allow children under the age of 14 to use the charger.
14. Do not short-circuit or disassemble a battery.
15. NEVER LEAVE A LITHIUM BATTERY UNATTENDED DURING CHARGING OR
DISCHARGING.
16. In the event of fire, disconnect the charger and use a dry powder fire
extinguisher to fight the fire.
2. Connect either a LiPo-2S battery or LiHV-4S (HIGH VOLTAGE).
NEVER CHARGE A LIPO-4S BATTERY WITH THIS CHARGER AS THE HIGH
VOLTAGE WILL DAMAGE THE BATTERY AND CAN BE A FIRE RISK.
1. Before charging, check that the terminals and wires of the battery pack are
not damaged.
2. When connecting the battery, always check that the positive (red) and
negative (black) wires are connected correctly and the connector plugs are
connected to the same coloured ports on the charger.
3. In order to avoid short circuits, connect the banana connector cable to the
charger first, then connect the battery. When disconnecting, disconnect the
battery first, then disconnect the charger.
4. Only one battery can be charged at a time.
1
Charging port of the cable
LiHV-4S Battery
Charging Port
Connector Drone Battery
Charging port
of the cable
Red
LiPO-2S
Black
Battery
Charging
Port
Controller Battery
Connector
3
Red
Black
