Scott Living 1317FM-33-202 Assembly / Care & Use Instructions

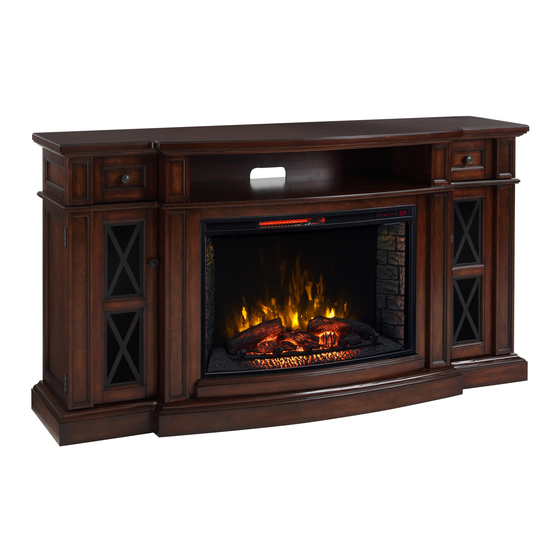

Media mantel with 33-in infrared electric fireplace
Hide thumbs

Advertisement

Table of Contents

Media Mantel with
33-IN Infrared
Electric Fireplace
ASSEMBLY, CARE & USE INSTRUCTIONS
MODEL # 1317FM-33-202
ITEM # 1031288
Date Purchased _______________________
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service department at
1-855-571-1044 9 a.m. - 5 p.m., EST, Monday - Friday
www.greentouchhome.com
TM
Français p. 19
Español p. 38

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1317FM-33-202 and is the answer not in the manual?

Questions and answers

Bobby Hodges
January 20, 2025

Where can I get parts for the elec heater on the Media Mantel 33 inch

0
1 comments:
Mr. Anderson
February 4, 2025

For parts for the Scott Living Media Mantel 33-inch electric heater, model number 1317FM-33-202, contact the customer service department at 1-855-571-1044, available Monday through Friday from 9 a.m. to 5 p.m. EST.

This answer is automatically generated

0

Related Manuals for Scott Living 1317FM-33-202

Summary of Contents for Scott Living 1317FM-33-202

  • Page 1 Media Mantel with Français p. 19 Español p. 38 33-IN Infrared Electric Fireplace ASSEMBLY, CARE & USE INSTRUCTIONS MODEL # 1317FM-33-202 ITEM # 1031288 Date Purchased _______________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-571-1044 9 a.m.
  • Page 2 PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Base Center Panel Wood Door Panel Left Middle Wall Insert Brace Right Middle Wall Front Trim Left Outer Wall Insert Right Outer Wall Remote Control Left Door (with hinges) Battery Right Door (with hinges) Shelf Back Panel...
  • Page 3 HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) PART DESCRIPTION QUANTITY Wood Dowel Long Bolt Washer Back Panel Screw Shelf Pin Touch-up Pen...

  • Page 4: Safety Information

    SAFETY INFORMATION IMPORTANT INSTRUCTIONS • Use this appliance only as described in the manual. Any other use is NOT recommended When using electrical appliances, basic precautions by the manufacturer and may cause fire, should always be followed to reduce the risk of fire, electric shock or injury to persons.

  • Page 5: Save These Instructions

    SAFETY INFORMATION (CONT’D) • To prevent a possible fire, DO NOT block Electrical Connection air intakes or exhaust in any manner. DO • A 15-Amp, 120-volt, 60 Hz circuit with NOT use on soft surfaces, like a bed, where a properly grounded outlet is required. opening may become blocked.

  • Page 6: Assembly Instructions

    PREPARATION Before beginning assembly of product, make sure Estimated Assembly Time: 45 minutes all parts are present. Compare parts with Tools Required for Assembly (not included): package contents list and hardware contents list. Phillips screwdriver If any part is missing or damaged, do not attempt to assemble the product.
  • Page 7 ASSEMBLY INSTRUCTIONS (CONT’D) 3. Insert two Wood dowels (AA) into each side of Center Panel (B). Hardware Used Wood Dowel 4. Align the dowels in Center Panel (B) to Left Middle Wall (C) and Right Middle Wall(D). Insert dowels into predrilled holes and press tight. 5.
  • Page 8 ASSEMBLY INSTRUCTIONS (CONT’D) 6. Insert two Wood Dowels (AA) into outer holes on right side of Base (K). Attach Right Outer Wall (F), securing with two Washers (CC) and two Long Bolts (BB). Repeat for left Outer Wall (E). Hardware Used Wood Dowel Long Bolt Washer...
  • Page 9 ASSEMBLY INSTRUCTIONS (CONT’D) 8. From behind the assembly, insert four Wood Dowels (AA) into Base (K), attach Insert Braces (M), secure with two Washers (CC) and Long Bolts (BB). Hardware Used Wood Dowel Long Bolt Washer 9. From behind the assembly, attach Back Panel (J) to shelving areas using Back Panel Screws (DD).
  • Page 10 ASSEMBLY INSTRUCTIONS (CONT’D) 11. Hold the door and align the hinge body with the hinge plate mounted to the fireplace wall. Align and slide the hooks/catches on the hinge body into the recesses on the mounting plate while lightly pushing the door towards back of fireplace mantel.
  • Page 11 ASSEMBLY INSTRUCTIONS (CONT’D) 13. From behind the assembly, remove the preassembled insert brackets from the middle area. Save brackets and screws for future use. 14. With the help of another person, position the Insert (O) into opening of mantel assembly. Note: DO NOT plug the Insert (O) into power outlet yet.
  • Page 12 ASSEMBLY INSTRUCTIONS (CONT’D) 15. Re-attach insert brackets with previously removed screws to secure Insert (O). Assembly is now complete. With the help of another person, move the assembly to the final desired location. Once it is in position, plug the Insert (O) into the power outlet.

  • Page 13: Operating Instructions

    OPERATING INSTRUCTIONS Control Panel Remote Control AAA 1.5V AAA 1.5V AAA 1.5V AAA 1.5V To use the remote control, first insert two AAA batteries (included) into the remote control. Ensure the polarities of the battery match the inside of the battery compartment. Note: The control panel is a touch screen.
  • Page 14 OPERATING INSTRUCTIONS (CONT’D) Timer Function • Press the TIMER ICON to set the countdown for the unit’s main power. • If the unit is powered OFF, you can press the TIMER ICON to power ON the unit. The emberbed will glow at the lowest brightness setting unless a different setting was saved in the memory.

  • Page 15: Care And Maintenance

    CARE AND MAINTENANCE • Make sure the unit is turned OFF, unplugged and the heating elements of heater are cool whenever you are cleaning the heater or fireplace. • Clean the metal trim using a water-dampened soft, clean cloth. DO NOT use brass polish or household cleaners as these products will damage the metal trim.

  • Page 16: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Error E1 displayed on The overheat sensor Unplug unit, wait 15-20 minutes, then the sensor will control panel. has been engaged. reset itself. Plug the unit back in and turn on the heater. If the problem persists, call customer service. Note: The other functions will work normally excluding the heater.
  • Page 17 ONE-YEAR LIMITED WARRANTY The manufacturer warrants that your new Electric fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this Electric fireplace in accordance with the installation and operating instructions furnished with the product at all times.
  • Page 18 REPLACEMENT PARTS For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART # PART DESCRIPTION PART # Hardware Pack PU17-1317FM-001 Left Door PU17-1317FM-007 Knob PU17-1317FM-002 Right Door PU17-1317FM-008 Insert Bracket Insert-Side-MB Shelf...
