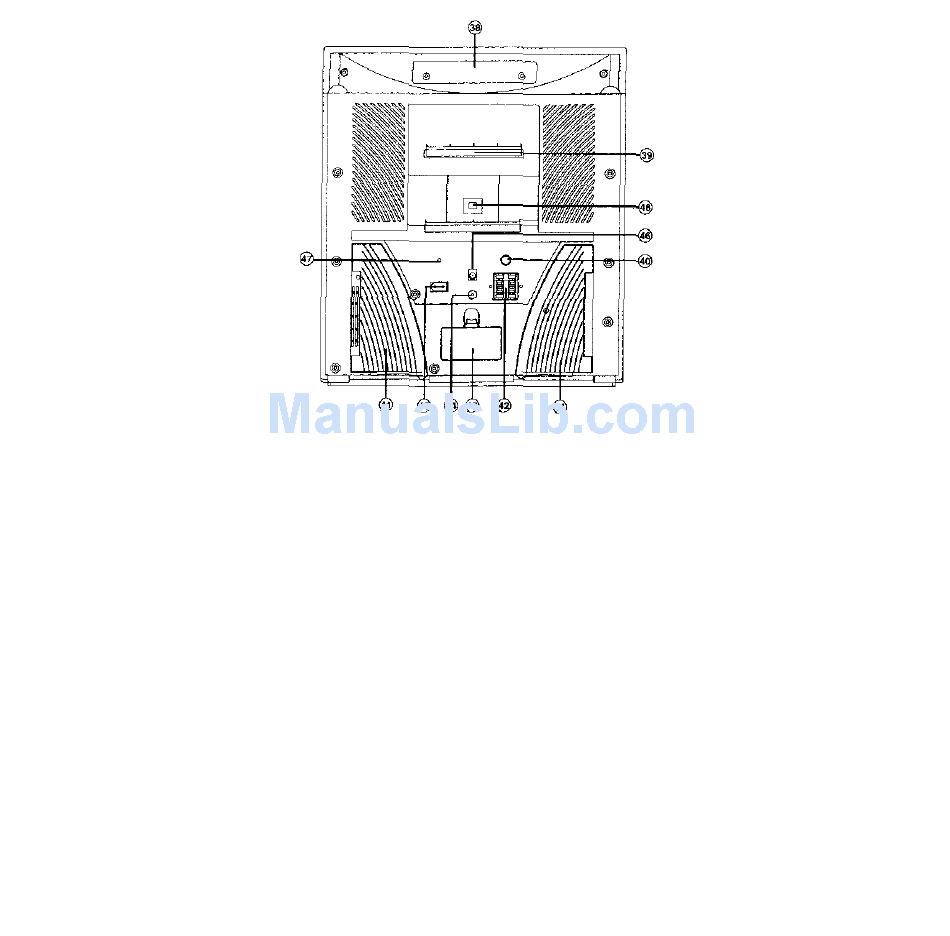

38. Carrying recess
39. Slot for wall-mounting bracket — connects to mounting bracket to mount unit on wall
40. FM antenna terminal — terminals for connecting single antenna (75Ω) or dipole antenna (300Ω)
41. Stand — opens to support main unit for desktop use
42. Left and right channel speaker terminals — inputs for speaker cables
43. Battery compartment — holds batteries for clock backup
44. Subwoofer jack — connects to optional external subwoofer (model SA249)
45. AC socket — connects to AC power cord
46. DC jack — connects to car/boat adapter
47. RESET — press to reset unit if experiencing abnormal operation
48. AM antenna terminal — connects single AM loop antenna
SA248
