Manual

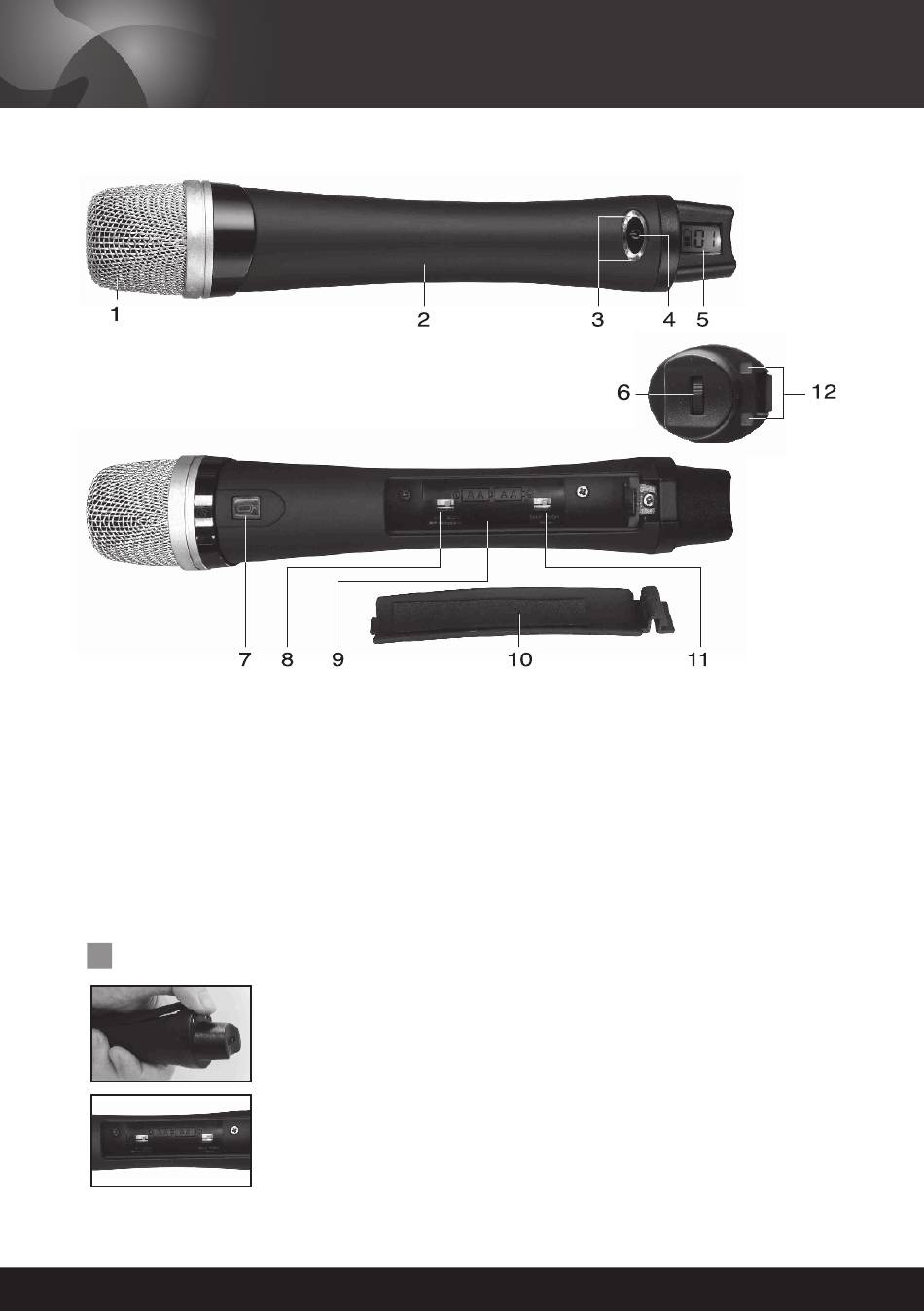

1. Mesh head
2. Handheld tube
3. Power indicator
4. Power ON/OFF button
5. LCD screen
(channel, battery energy)
6. Channel adjustment and
setup button
Insert battery
Open battery door and insert 2 AA 1.2 V (Ni-MH 1600mAh)
or 2 AA 1.5 V Alkaline batteries. Make sure the batteries are
allocated in correct direction.
UHF Handheld wireless microphone
7. Talk/Mute button
8. Power Hi/Low switch
9. Battery room
10. Battery door
11. Talk/Push mode switch
12. Charging contacts
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Simeon 5.1M
Summary of Contents for Simeon 5.1M
- Page 1 UHF Handheld wireless microphone Manual 7. Talk/Mute button 1. Mesh head 8. Power Hi/Low switch 2. Handheld tube 9. Battery room 3. Power indicator 10. Battery door 4. Power ON/OFF button 11. Talk/Push mode switch 5. LCD screen 12. Charging contacts (channel, battery energy) 6.
- Page 2 UHF Handheld wireless microphone Manual Operation and setup for handheld microphone 1. Take batteries off and make your preferred microphone mode Talk/Push (11). TALK - Under this mode, microphone will activate only when microphone icon turns into green; mute the microphone by a press to microphone icon which will be turned into red.
-
Page 3: Specifications
UHF Handheld wireless microphone Manual Specifications Microphone capsule condenser Antenna internal RF output power 10 mW@H i / 3 mW@Low Audio control Talk / Mute button 2 AA 1.2 V (Ni-MH, 1600 mAh); or 2 AA 1.5 V (Alkaline) Battery Running time 15 (Ni-MH) / 20 (Alkaline) hours, typical 37 x 200 mm...
