Novatel SA1100-00-AT User Manual

Wireless communicator board
Hide thumbs
Table of Contents

Advertisement

Quick Links

SA1100X-UG001
SA 1100
User Guide
Version 1.5
March 1, 2016

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SA1100-00-AT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Novatel SA1100-00-AT

  • Page 1 SA1100X-UG001 SA 1100 User Guide Version 1.5 March 1, 2016...
  • Page 2 Nothing contained in this user manual should be construed as granting by implication, estoppel, or otherwise, a license or right of use of Novatel Wireless or any other Trademark displayed in this user manual without the written permission of Novatel Wireless or its respective owners.

  • Page 3: Table Of Contents

    Contents Introduction Device Overview Technical Specifications Operating Power Using the Device Installing the SIM Card Powering the Device Compliance and Regulatory General Disclaimer Warranty Information Regulatory Compliance...

  • Page 4: Introduction

    Introduction Device Overview Technical Specifications Operating Power...

  • Page 5: Device Overview

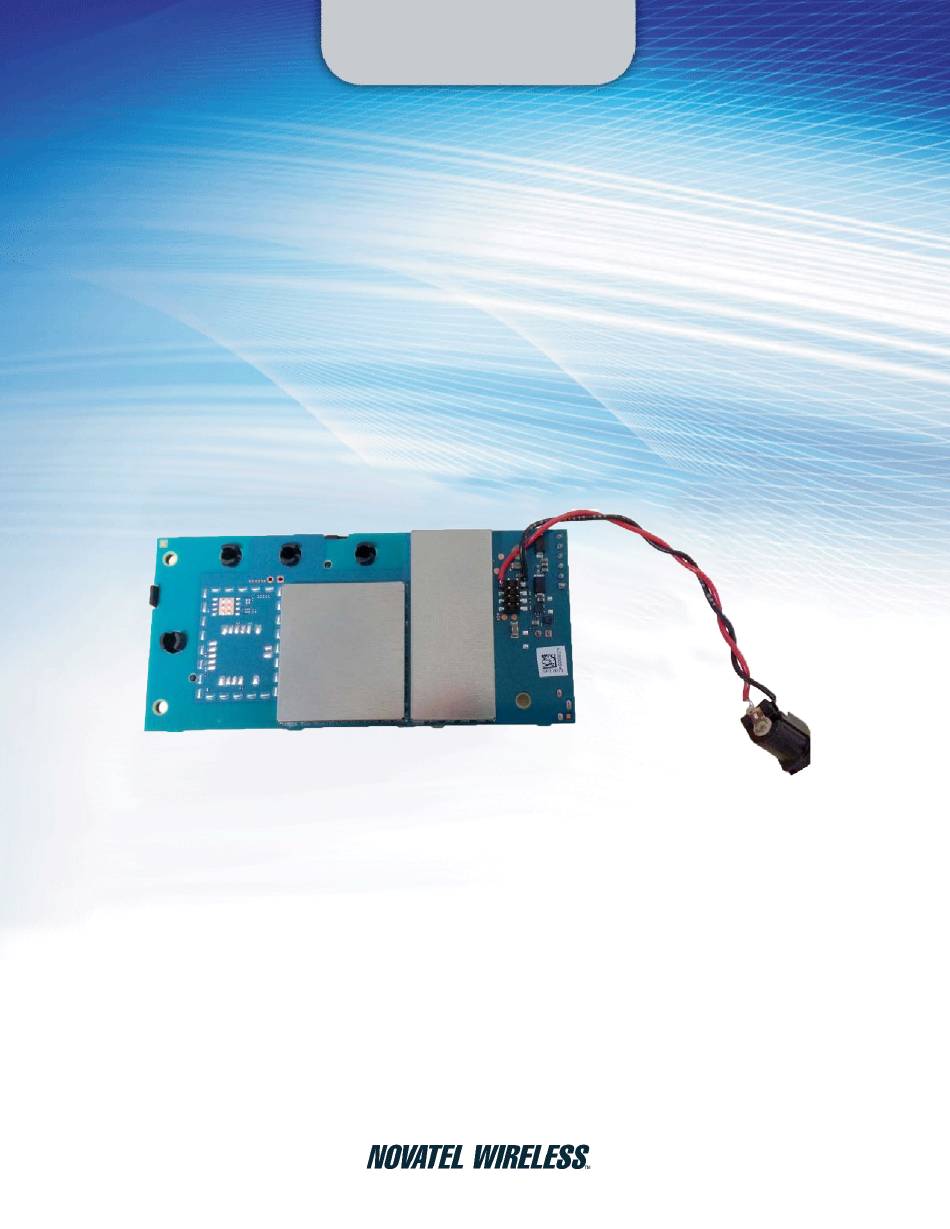

    Wi-Fi and Z-Wave capabilities for connected home services. In order to support those technology features it incorporates the Novatel Wireless HS 3001 or HS 3002 cellular modules for data connectivity and messaging. In addition, the SA 1100 product is integrated with a Wi-Fi module that operates in the 2.4 GHz range along with a Z-Wave module operating in the 900 MHz range.

  • Page 6: Technical Specifications

    100 position 0.4 mm pitch connector (Molex P/N 55909-1074) Primary serial port: V.24 protocol, 1.8V levels, UART implementation, Hardware flow control USB port: USB serial port and USB Debug (USB Debug is Novatel Wireless Use only) Antenna Interface: B2B Spring contact Command protocol:...
  • Page 7 Application Interface USB: 3.4 to 4.4 Vdc (vbat) VBUS: Supply Vripple must be less than 25 mV across all frequencies Power Input Voltage Range: Minimum: +6.0 Vdc Nominal: +12.0 Vdc Maximum: +24.0 Vdc Radio Features Frequency Bands: CDMA 1xRTT BC0 (800MHz), BC1 (1900MHz) HSDPA/WCDMA: B1 (2100MHz) and B8 (900 MHz) GPRS/EDGE: 900 and 1800 Air Interfaces: –...

  • Page 8: Operating Power

    Regulatory Agency approvals: Industry Canada PTCRB Reference Documents CNN0301AT001 – HS 3001 AT Command Reference CNN0301IG001 – HS 3001 Transition Guide CNN0401xAT001 - HS 3002 AT Command Reference CNN0401xTG001 - HS 3002 Transition Guide ENF0000SD001 - HDK Guide CNN0401AN001 - Using Digital Audio on the HS 3002 Operating Power SA 1100 Communications Board Input Power The SA 1100 Communications Board receives 6-12 VDC power from an external power supply using a...
  • Page 9 Peak Band Mode (mA) (mA) Notes RC3, 3.6V, Max Power RC3 = Radio Config 3 RC3, 3.6V, TX= 0dBm RC3, 3.6V, Max Power RC3, 3.6V, TX= 0dBm <2.0 Both Idle Slot Cycle Index = 2, Sleep = 3 Modem Registered; Peak during network activity Both Both...

  • Page 10: Using The Device

    Using the Device Installing the SIM Card Powering the Device...

  • Page 11: Installing The Sim Card

    Installing the SIM Card In the SA 1100, the SIM card slot is located on the Communications board. Note: Only on SA1100-00-AT, SA1100-20-AT, SA1100-30-AT models. To install the SIM card: Unlock the SIM card holder by sliding the holder in the "open" direction as marked on the SIM card holder.

  • Page 12: Powering The Device

    The Simon XT connector provides for data connectivity between the SA 1100 Communications Board and the third party end product. USB is provided solely for the communication with the module. Radio Connectivity Radio connectivity is provided solely by a Novatel Wireless HS 3002 module, which has all APIs integrated with the module software.

  • Page 13: Compliance And Regulatory

    Compliance and Regulatory General Disclaimer Warranty Information Regulatory Compliance...

  • Page 14: General Disclaimer

    TERMS OF USE OF NEW MATERIALS - PLEASE READ CAREFULLY From time to time, Novatel Wireless, in its sole discretion, may make available for download on its website (www.novatelwireless.com), or may transmit via mail or email, updates or upgrades to, or new releases of, the firmware, software or documentation for its products (collectively, 'New Materials').

  • Page 15: Warranty Information

    (or to Novatel Wireless's authorized distributor). Purchaser shall bear the risk of loss or damage in transit to any product returned by purchaser to Novatel Wireless, or any returned product not found to be defective or covered under this warranty, and reshipped by Novatel Wireless to purchaser (or to Novatel Wireless's authorized distributor).
  • Page 16 (90) days, whichever is longer. If Novatel Wireless is unable to repair or replace a defective product covered by this limited warranty, Novatel Wireless will provide to purchaser a credit or a refund (at Novatel Wireless's option) of the original purchase price (excluding taxes and shipping charges).
  • Page 17 warranty gives the purchaser specific legal rights and the purchaser may have other legal rights that vary from jurisdiction to jurisdiction. This limited warranty shall be governed by the laws of the State of Texas, United States of America, without regard to conflict of laws principles. This limited warranty shall not be governed in any respect by the United Nations Convention on Contracts for the International Sale of Goods.

  • Page 18: Regulatory Compliance

    Novatel Wireless. PTCRB APPROVAL The Novatel Wireless HS 3002 module is type approved in accordance with the requirements of and through the procedures set forth by the GSM industry association. The relevant conformance specification is 3GPP TS 51010-1. Any OEM changes in the SIM interface, antenna port, software or the physical makeup of the unit may require an incremental FTA to ensure continued compliance with the above-mentioned standard.
  • Page 19 RF exposure requirements, and must work with Novatel Wireless (the grantee) to satisfy FCC/IC SAR requirements. Refer to Industry Canada RSS-102 and FCC KDB publication 447498 D01 and the applicable SAR/RF Exposure KDB publications available at: https://apps.fcc.gov/oetcf/kdb/reports/GuidedPublicationList.cfm.
  • Page 20 (e.i.r.p.) is not more than that necessary for successful communication. FCC NOTICE TO USERS Novatel Wireless has not approved any changes or modifications to this device by the user. Any changes or modifications could void the user’s authority to operate the device. See 47 CFR Sec. 15.21. The device complies with part 15 of the FCC rules.
  • Page 21 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. REGULATORY REQUIREMENTS FOR OTHER COUNTRIES In most other countries there are similar rules and regulations that may need to be met for importing the HS 3002 module and for placing it on the market in the integrated device.
  • Page 22 Novatel Wireless. CERTIFICATION FCC Novatel Wireless certifie que le SA 1100 (FCC ID : PKRNVWSA 1100 & PKRNVWSA 1100V) est en accord avec les exigences RF applicables aux équipements PCS haut-débit opérant sous l’autorité de 47 CFR partie 24, sous-partie E et partie 22 sous-partie H des règles et réglementations FCC. Cette certification est contingente lors de l’installation, l’opération et l’utilisation du produit SA 1100 et de son produit...
  • Page 23 RF, et doit travailler avec Novatel Wireless (le bénéficiaire) pour satisfaire les exigences FCC/IC SAR. Se référer à Industry Canada RSS-102 et FCC KDB publication 447498 D01 et aux publications KDB d’exposition SAR/RF disponibles sur : https://apps.fcc.gov/oetcf/kdb/reports/GuidedPublicationList.cfm...
  • Page 24 REMARQUES FCC POUR LES UTILISATEURS Novatel Wireless n’a approuvé aucun changement ou modification à cet appareil par l’utilisateur. Tout changement ou toute modification pourrait reprendre à l’utilisateur son autorité pour opérer l’appareil.
  • Page 25 EXIGENCES REGLEMENTAIRES POUR LES AUTRES PAYS Dans la plupart des autres pays, des règles et réglementations similaires, qui doivent être suivies pour importer le module HS 3002 et pour le placer sur le marché dans l’appareil intégré, existent. Chaque pays peut nécessiter un type d’accord différent comme exigence d’acceptation. Le pays doit identifier chacun de ces cas, et les étapes appropriées doivent être suivies afin de répondre aux exigences mises en avant dans le marché...
