Summary of Contents for Eden DEN Series

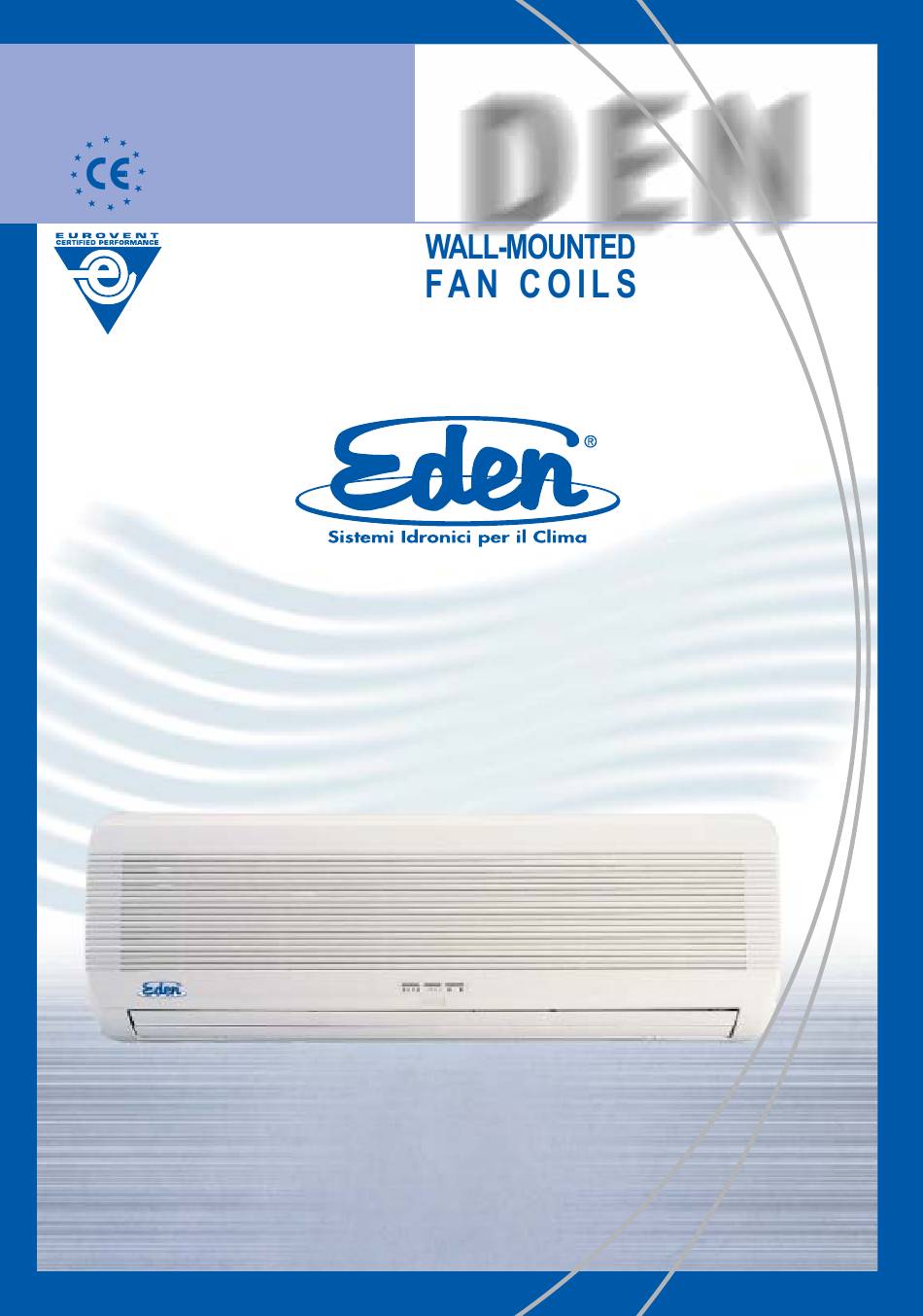

- Page 1 INSTALLATION, OPERATING AND MAINTENANCE GUIDE...
- Page 2 Place of installation in this guide, immediately contact an authorised after-sales service centre. EDEN S.r.l. cannot be held liable for any damage or injury caused by misuse of the appliance or by partial or superficial knowledge of the Installation with simple mounting plate information contained in this guide.
-
Page 3: Mounting Plate
range WALL-MOUNTED FAN-COILS The method of installing the wall-mounted water-filled fan coil of the DEN range is shown below. Take into account the following: - looking at the unit from the front, the supply pipes go from right to left. - the system pipes must come from the left. - Page 4 range WALL-MOUNTED FAN-COILS Proceed as shown in fig. 10 to assemble the mounting plate. 4) Position the fan coil on the mounting plate. 5) Tilt the fan coil and insert the relative polystyrene foam spacer so that the valves can be easily reached and connected to the appliance and to the mains water supply (fig.
- Page 5 range WALL-MOUNTED FAN-COILS CAUTION! THE CONDENSATE COLLECTING TRAY MUST BE FIXED SO THAT IT SLOPES GENTLY DOWNWARDS TOWARDS THE CONDENSATE DRAIN OUTLET (fig. 20). N.B.: - Do not bend or damage the enclosed mounting plate. - Comply with the measurement highlighted in fig. 10. - The base of the enclosed mounting plate must project by 9-10 mm from the wall.
- Page 6 range WALL-MOUNTED FAN-COILS MU DEN 0306-0 EDE GB...
- Page 7 range WALL-MOUNTED FAN-COILS MU DEN 0306-0 EDE GB...
- Page 8 range WALL-MOUNTED FAN-COILS MU DEN 0306-0 EDE GB...
-
Page 9: Operation
range WALL-MOUNTED FAN-COILS No foreign matter must be allowed to deposit in the condensate collecting tray (if installed). 1) If possible use copper pipes. 2) The supply and return pipes have the same diameter (1/2"). 3) The pipes must always be lagged. 4) The condensate drain hose is plastic and has a Ø... -
Page 10: Emergency Button
range WALL-MOUNTED FAN-COILS - Press this button to select the fan speed (automatic, low, medium, high). - The emergency button can be used to start the fan coil if the remote - Press this button to set the airflow direction in the automatic control is broken or lost. - Page 11 range WALL-MOUNTED FAN-COILS The mode changes as shown below each time the button is pressed: 1 Use both hands to pull the lower edge of the front cover outwards by 30° 2 Use both hands to push and lift the front cover upwards. Mode of operation Cooling - Use this function to cool the room.
- Page 12 range WALL-MOUNTED FAN-COILS Do not switch on the fan coil with the louvers locked as this could When the automatic fan speed function is set, there is a selection of cause malfunction. various levels: high, medium, low. Never position the motor-driven louvers manually. When the automatic fan speed function is set, the heating mode works as follows: The louver swings automatically between the positions of maximum and...
- Page 13 range WALL-MOUNTED FAN-COILS (displayed on the screen). : when the fan coil is programmed to operate in the heating mode, it follows the sequence given below Once the switching-on time has been set, press the ENT button to - one hour after activation the temperature is decreased by 1°C; confirm the selection (the writing ON shown on the display stops - two hours after activation the temperature is decreased by another blinking).
- Page 14 range WALL-MOUNTED FAN-COILS Use a vacuum cleaner to remove the dust accumulated on the filters or wash them in a solution of neutral detergent. If washed, let them dry in a shady place before replacing them in the unit. Align the filters with the drain duct on the panel and press them in as far as they will go.
- Page 15 range WALL-MOUNTED FAN-COILS According to the Low Voltage Directive , the EMC Directive and amended by the CE-marking Directive Type of equipment: Trademark: Type designation:: Manufacture: Address: Telephone: Telefax: The following harmonised standards or technical specifications (designations) which comply with good engineering pratice inn safety matters in force within the EEC have been applied: Standards or other normative documents: 73/23/CEE, 89/392/CEE, 91/368/CEE, 92/31/CEE, 92/59/CEE, 93/44/CEE, 93/68/CEE, EMC/89/336, EN/292/1, EN/292/2, EN/55014,...
- Page 16 All products included in EUROVENT DIRECTORY All data in this technical manual are no binding for Eden S.r.l. company who takes the right, without advance notice obbligation, to provide to any modification for product improvements. Via dell'Artigianato, 11 - 31010 Fonte (TV) - ITALY Tel.
