Capital City Computing, LLC
Service Manual for Sony Vaio PCG – 7X2L
Tools Needed
-
small screw driver
-
small flat head screw driver or letter opener
How to remove and replace the hard disk drive (HDD)
NOTE: I replaced a TOSHIBA MK8034GSX 80GB 5400 RPM 8MB Cache 2.5" SATA
1.5Gb/s Notebook Hard Drive with a Seagate Momentus 7200.4 ST9500420AS 500GB
7200 RPM 16MB Cache 2.5" SATA 3.0Gb/s Internal Notebook Hard Drive.

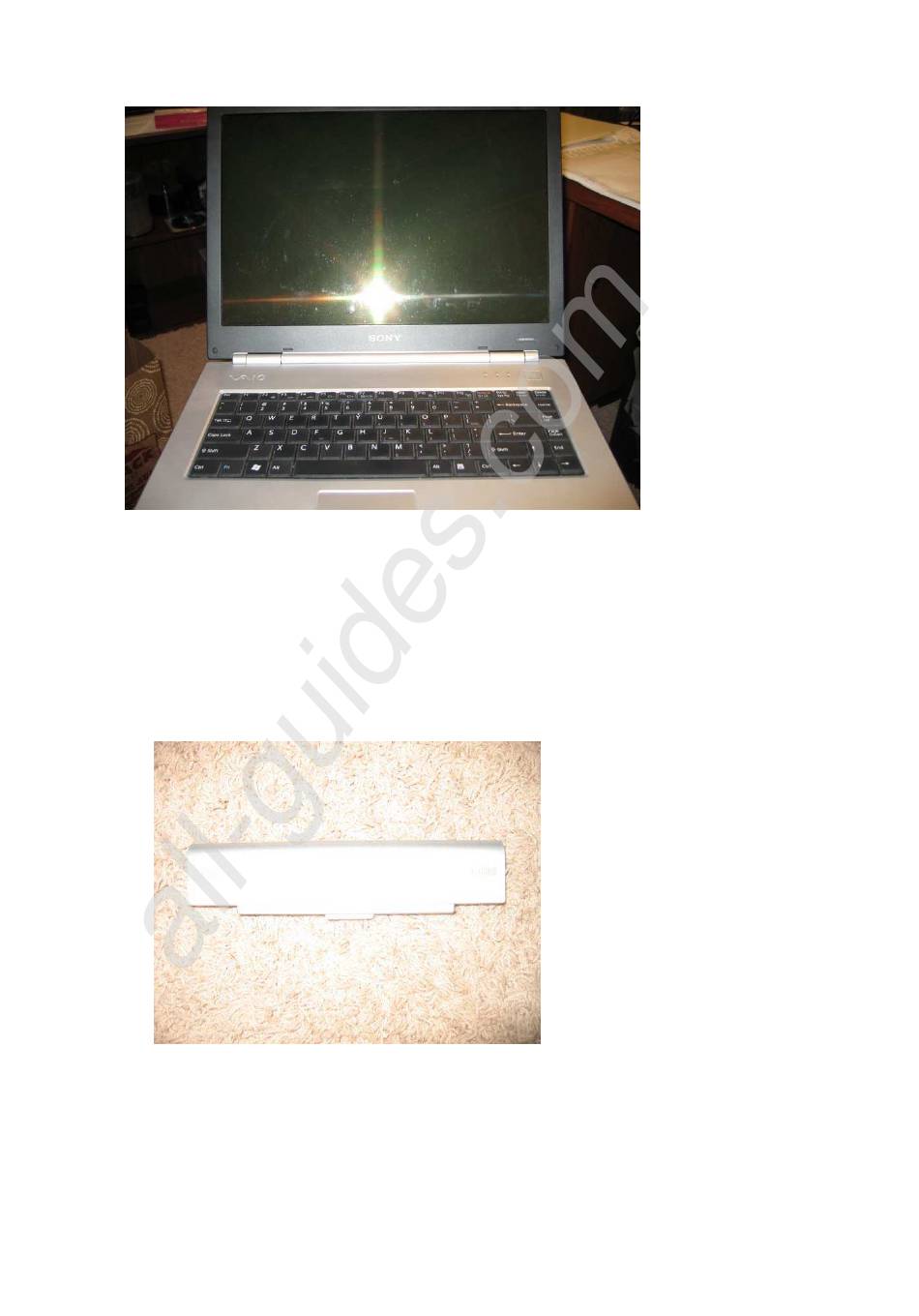

1. Disconnect power and remove battery.
2. Turn the laptop over and remove all the screws on the bottom.
All manuals and user guides at all-guides.com
Advertisement
Related Manuals for Sony Vaio PCG - 7X2L
Summary of Contents for Sony Vaio PCG - 7X2L
- Page 1 All manuals and user guides at all-guides.com Capital City Computing, LLC Service Manual for Sony Vaio PCG – 7X2L Tools Needed small screw driver small flat head screw driver or letter opener How to remove and replace the hard disk drive (HDD) NOTE: I replaced a TOSHIBA MK8034GSX 80GB 5400 RPM 8MB Cache 2.5"...
- Page 2 All manuals and user guides at all-guides.com Capital City Computing, LLC 3. Remove the memory cover.
- Page 3 All manuals and user guides at all-guides.com Capital City Computing, LLC 4. Remove the screw underneath the memory cover. 5. Remove the DVD drive. 6. Remove the 3 black screws underneath the DVD drive. Note the size of the screws. 7.
- Page 4 All manuals and user guides at all-guides.com Capital City Computing, LLC 9. When you press in plastic tabs, carefully lift up on front black edge of keyboard. 10. Repeat step 9 for each plastic tab. 11. Remove keyboard ribbon cable by carefully sliding and lifting up on the black part of the black and white connector.
- Page 5 All manuals and user guides at all-guides.com Capital City Computing, LLC 12. Remove the screw underneath the keyboard. Note the size of the screw. This screw is longer than the other screws. 13. Remove the mouse touchpad ribbon cable by lifting up on the black part of the black and white connector.
- Page 6 All manuals and user guides at all-guides.com Capital City Computing, LLC 15. Remove the two black screws that are holding the HDD case to the motherboard. 16. Carefully slide the enclosed HDD lose from the SATA motherboard connector. NOTE: The HDD is located in the silver case located underneath the left palm rest or on the left front side of the laptop.
- Page 7 All manuals and user guides at all-guides.com Capital City Computing, LLC 19. Insert the four screws into the side of the HDD. 20. Repeat the steps in reverse order.
