IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed
including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1.
DANGER- Risk of shock- Disconnect power before installation.
DANGER – Risque de choc – Couper l'alimentation avant l'installation.
2.
This luminaire must be installed in accordance with the NEC or your local
electrical code. If you are not familiar with these codes and requirements, consult
a qualified electrician.
Ce produit doit être installé conformément à NEC ou votre code électrique local.
Si vous n'êtes pas familier avec ces codes et ces exigences, veuillez contacter
un électricien qualifié.
3.
Suitable for damp location.
Convient aux emplacements humides.
4.
Maximum ambient operating temperature: Medium Lumen Package = 50°C and
High Lumen Package= 40°C.
Température ambiante maximale de fonctionnement: Paquet Moyen Lumens =
50°C et Paquet de Lumen Élevé = 40°C.
5.
MIN 90°C SUPPLY CONDUCTORS
LES FILS D'ALIMENTATION 90°C MIN.
6.
Check to make sure that all input power connections have been properly made
and the module is grounded to avoid potential electrical shock.
7.
DO NOT lift luminaire by the cord.
SAVE THESE INSTRUCTIONS FOR FUTURE
TO INSTALL:
1
Luminaire Hook
Retainer Spring
Hook Adjustment
Screws
1/2" (13mm) IP,
0.875" (22mm)
O.D. Knockout

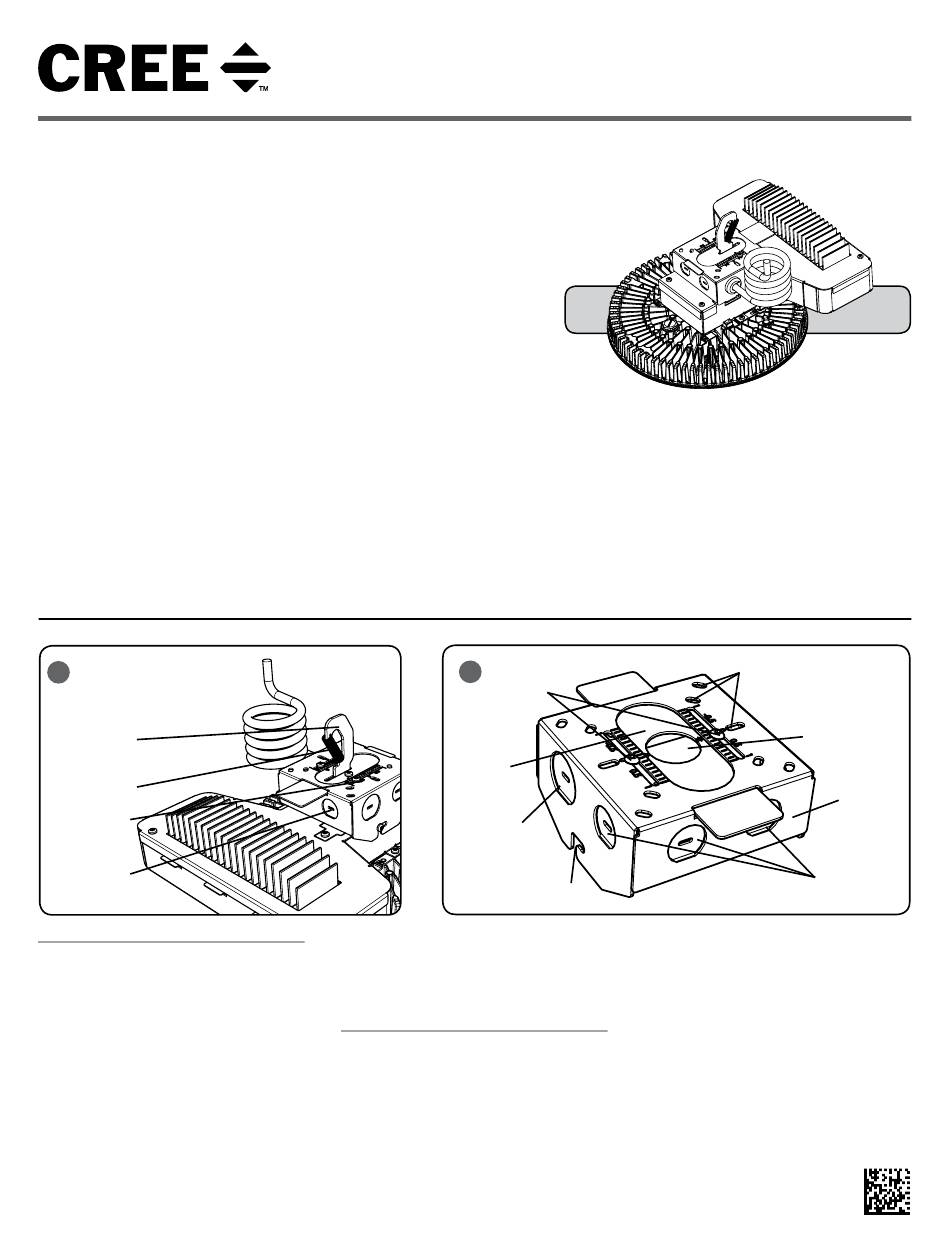

HOOK AND CORD MOUNT
STEP 1:
Push down on retainer spring until top of
spring is free of luminaire hook. See Figure 1.
STEP 2:
Slide hook into securely mounted customer
supplied eye hanger and return retainer
spring to original position.
NOTE: The luminaire should already be factory
set for correct balance. If necessary, the
fixture may be balanced by loosening the hook
adjustment screws on the top of the housing
and sliding the hook as necessary for correct
balance. Tighten hook adjustment screws
when finished. See Figure 1.
1 of 3
REFERENCE
STEP 3:
Make wiring connections per the Electrical
Connections section.
JUNCTION BOX MOUNT / PENDANT
MOUNT
STEP 1:
Remove hinged splice box from top of housing
by loosening screw and sliding box to the right
and up from "L" channel. Unhook from hinge
holes. See Figure 2.
STEP 2:
Remove hook, slider plate and cord and
discard. Plug junction box knockout hole with
provided junction box plug.
Universal Hook and Cord, and Optional Junction box or Pendant Mount
NOTES:
•
For each mounting application below, when
mounting to surface ensure that the mounting
surface and customer supplied hardware is
capable of supporting the weight of the luminaire.
•
The center of mounting is NOT the same as the
center of luminaire.
2
Pendant Adjustment
Pendant Slider
Plate
3/4" (19mm) IP,
1.125" (29mm)
O.D. Knockouts
"L" Channel
KBL Series
LED Luminaire
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D'INSTALLATION
Holes for Junction Box Mounting
Pendant Mount Hole
3/4" (19mm) IP, 1.125"
1/2" (13mm) IP,
0.875" (22mm)
O.D. Knockouts
For pendant entering the hinged splice box:
Attach the supplied pendant mount slider
plate using (2) supplied screws. Use 3/4"
threaded pendant, along with two customer
supplied locknuts (one for inside the hinged
splice box and one for outside the splice box).
Pull supply leads into position from customer
supplied conduit.
Note: If necessary, the luminaire may be
balanced by loosening (2) screws for pendant
adjustment on the top of the hinged splice box
and sliding the adjustment plate as necessary
for correct balance. Tighten (2) screws when
finished. See Figure 2.
LPN00502X0001A1_A
(29mm) O.D.
Hinged Splice
Box
