WARNING: Important! Read and understand these instructions before assembling or
using the GF1965-1 / GF1965-1KD Pedal Floor Exerciser. If you do not understand any
part of these instructions, contact a healthcare professional for direction in the use
of this product. If the Pedal Floor Exerciser is not properly assembled and adjusted,
personal injury and/or damage to the Pedal Floor Exerciser could result.
WARNING: This product has a maximum weight capacity of 250 lb, EVENLY DISTRIBUTED.
WARNING: If components are damaged or missing, contact your dealer immediately. DO
NOT use substitute parts. Use only Lumex replacement parts. Non-Lumex replacement
parts could cause personal injury and/or damage to the Pedal Floor Exerciser.
WARNING: GF Health Products, Inc. assumes no responsibility for any damage or
injury caused by improper assembly or use of this product.

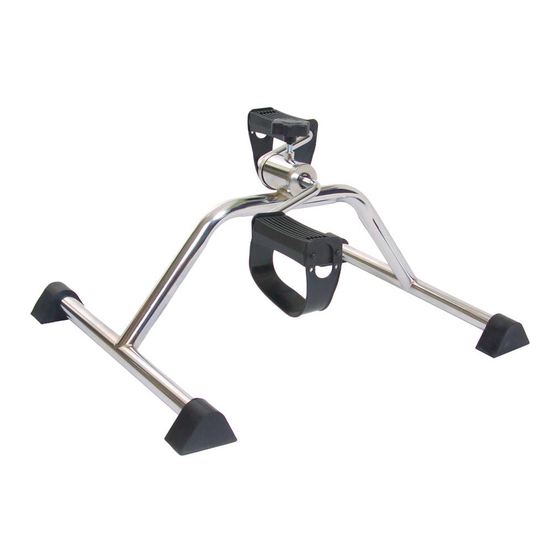

Info: GF1965-1 comes fully assembled, as
shown at right.
Assembly instructions for GF1965-1KD only
(refer to picture at right)
1. Slide one end of pedal assembly into the leg
brace as shown at right.
2. Slide the other end of pedal assembly into the
other leg brace, aligning all bolt holes.
3. Insert hex bolts through pedal assembly and
leg braces.
Info: Ensure hex bolt heads are trapped in
leg brace hex holes.
4. Install washers and wing nuts on ends of hex
bolts.
5. Install tension knob on top of pedal assembly
as shown at right. Tighten.
GF1965-1 / GF1965-1KD: PeDal Floor exerciser
asseMBlY & oPeraTioN iNsTrUcTioNs
Please saVe THese iNsTrUcTioNs For FUTUre Use
tension knob
stirrup
pedal
tension knob
pedal assembly
leg brace hex hole
hex bolt
leg brace
wing nut
GF1965-1
Pedal Floor Exerciser
washer
GF1965-1KD
Pedal Floor Exerciser
GF1965-1KD-INS-LAB-RevD13
