Summary of Contents for Mangar Health Airflo 24

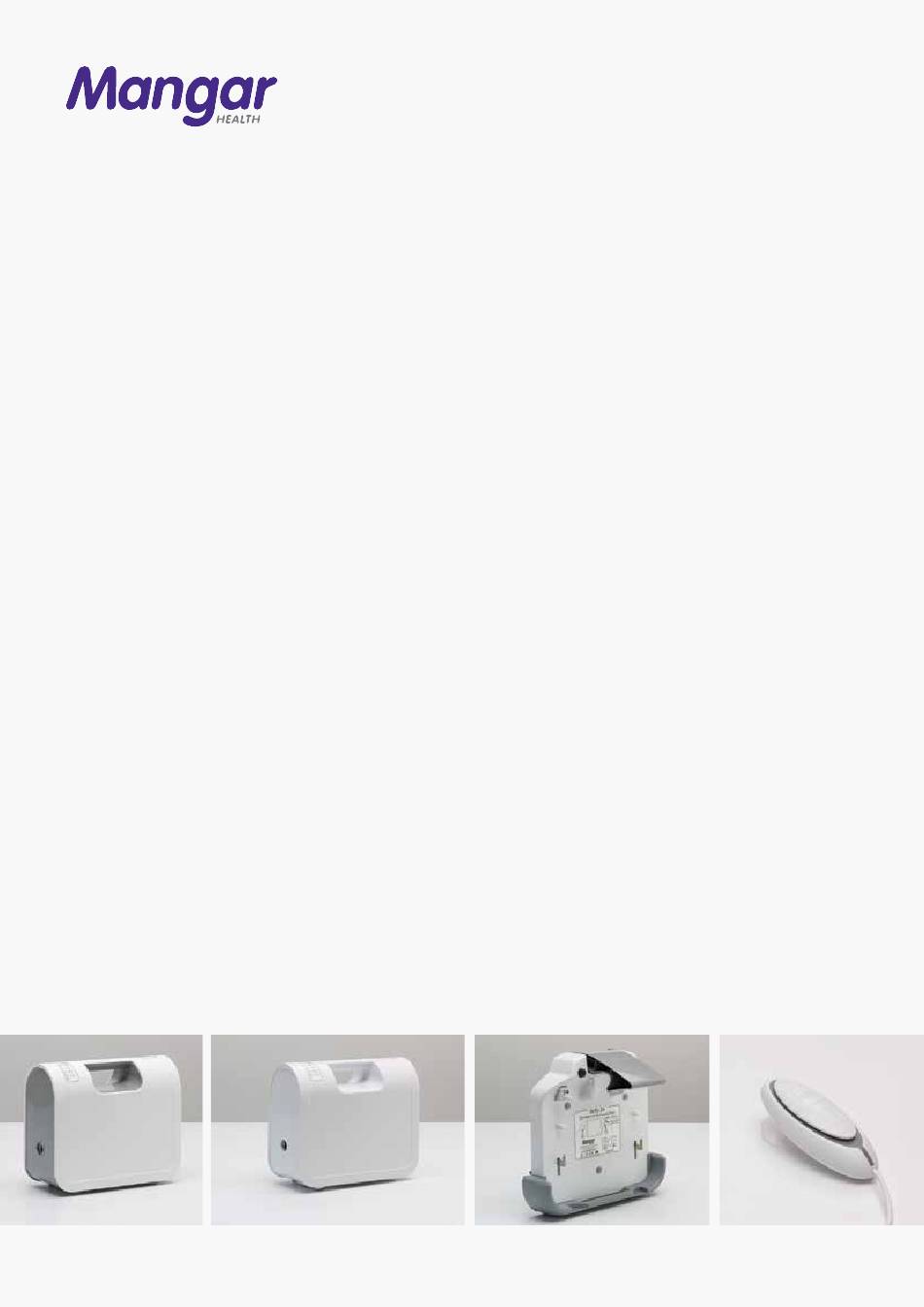

- Page 1 Airflo 12 & 24...
- Page 2 Lifting Cushion Bathing Cushion Camel Lifting Cushion...
- Page 3 Mangar lifting cushions are inflated using battery powered Airflo compressors. The new generation models, Airflo 12 and Airflo 24 have been innovatively designed with an ergonomically styled casing and vastly improved performance. The products benefit from an enhanced specification delivering increased lifting power, more efficient battery technology and an easy view power ladder display.
- Page 5 Airflo 12 The Airflo 12 by Mangar is a low-pressure air compressor, which has been designed to inflate the Mangar Bathing Cushion, Surfer Bather, Sit-u-Up, Handy Pillowlift, the Leglifter and Raiser Lifting Cushion using a stylish, ergonomic hand control.
- Page 6 Airflo 12 Many more lifts off one charge than the Airflo MK3 More efficient, durable battery technology (NiMH) – 1 x 12V 20% lighter than the current Airflo – 3.7kg / 8.1lbs Vastly improved ergonomically with redesigned grab handle and balanced carry Battery and mains versions available Easy view power levels at a glance with a battery capacity ladder display...
- Page 7 Specifications Weight: 3.7 kg (8lbs) Output pressure: 0.25 bar (3.75 psi) Batteries: 1 x 12V - 2200mAh NiMH battery pack Environmental protection: (Airflo 12 housing) IP51 splash-proof (Push-button hand control) IP67 (Totally protected against dust; immersion in water) Type BF-equipment This equipment has been tested and meets the requirements of current EMC legislation Charger: Model number –...
- Page 9 Airflo 24 The Airflo 24 by Mangar is a low pressure air compressor, which has been designed to inflate the Mangar Camel and ELK lifting equipment through a 4-Way hand control. The 4-Way hand control is supplied with the Camel and ELK.
- Page 10 Easy view power levels at a glance with a battery capacity ladder display Integral ‘Power’ button with indicator LED Instant charge stowage board as soon as the Airflo 24 is docked Charge recovery time to do one further lift – 2 hours...
- Page 11 Specifications Weight: 4.1kg (9lbs) Output pressure: 0.31 bar (4.5 psi) Batteries: 1 x 24V - 2200mAh NiMH battery pack Environmental protection: IP51 Splashproof Type BF equipment This equipment has been tested and meets the requirements of current EMC legislation Charger: Model number - HX2902SR Input: AC 100V - 240V, 50-60Hz, 0.5A Max Output: DC 30V, 0.45A Double insulated Class II equipment...
- Page 12 Lifting Performance 8 lifts (4 bathing cycles) Bathing cushion 20 lifts Handy Pillowlift 40 lifts Sit-u-Up 16 lifts Leglifter 20 lifts Surfer Bather 25 lifts Raiser Lifting Cushion 9 lifts 4 lifts Camel...
- Page 13 For emergency services, install a stowage board into your ambulance and click the Airflo 24 into place whenever it’s not in use. This not only stores your Airflo 24 safely, but also keeps it on charge and ready to use.
- Page 14 Battery Status Indicator Before use: Momentarily press the ‘Power’ button to activate the battery status indicator lights. The lights will light up for 5 seconds indicating the battery charge state: Power Button Recharge Immediately GREEN OK to Use...
- Page 15 Charging options for Airflos Airflo 24 Airflo Plus Airflo 24 Stowage Board Airflo Plus Stowage Board In Vehicle Battery Charger Mains Adapter Airflo 24 Charger Airflo Plus Charger Spares for the Airflo Plus will be available for 5 years (March 2022)
- Page 16 Keep in touch 0800 2800 485 info@mangarhealth.com www.mangarhealth.com Sign up for enews...
