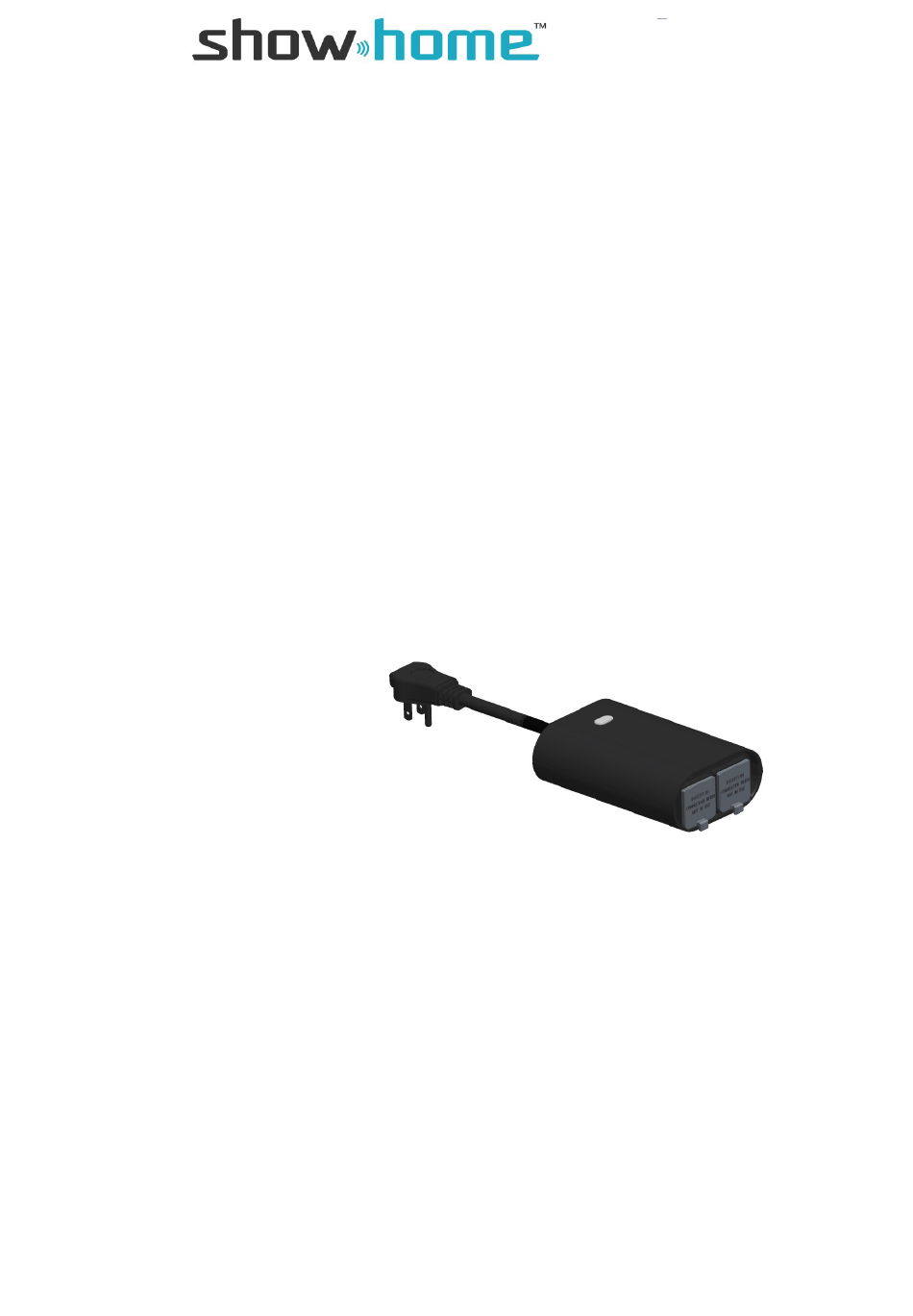

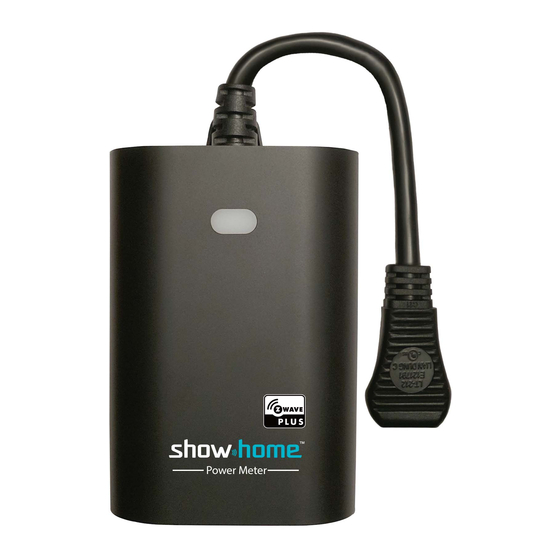

ZW97 Z-Wave 2-Channel OutDoor Smart Plug
Introduction:
Thank you for choosing the ZW97 Z-Wave control product.ZW97 enabled product allows users to remotely
control lighting, home appliance, and make home control easy with low installation and maintenance costs.
You may begin with a few Z-Wave enabled devices as well as some of our products to build up acomplete
home automation system.
The ZW97 is a Z-Wave enabled device and is fully compatible with any Z-Wave Plus enabled network.Each
module is designed to act as a repeater,which will re-transmit a radio frequency (RF),signal by routing the
signal around obstacles and radio dead spots to ensure that the signal is received at its intended destination.
Basic Operation:
The ZW97 can control two channel outlet outputs separately
Press the button one times controller all outlet ON/OFF
Press the button two times controller left outlet ON/OFF
Press the button three times controller right outlet ON/OFF
Follow this 2-step procedure to add your new ShowHome device to your Z-Wave network:
1 Put your Z-Wave controller into inclusion mode. Consult your controller manual if you're unsure how to do this.
2 Press the button five times. This will take a few moments to complete.
MANUAL RESET
MANUAL RESET
- To be used only in the event that the network primary controller is lost or otherwise inoperable.)
- To be used only in the event that the network primary controller is lost or otherwise inoperable.)
1）power off
2 ) hold on 5 seconds when turn on the power of ZW97
-----B: ON/OFF/PROG Push button
-----C: Z-Wave controlled left outlet
-----D: Z-Wave controlled right outlet
-----Node: There are LED instructions below the button
White LED indicates ON/OFF
RED LED indicates temperature alarm
Include ZW97 to/from a Z-Wave Gateway with supporting Security the ZW97 can support the Primary Controller that implemented the security S2.
Refer to your primary controller instructions to process the Secure Inclusion.The Below listed Command Class are all supported the Security S2
COMMAND_CLASS_ZWAVEPLUS_INFO,
COMMAND_CLASS_VERSION,
COMMAND_CLASS_MANUFACTURER_SPECIFIC,
COMMAND_CLASS_DEVICE_RESET_LOCALLY,
COMMAND_CLASS_ASSOCIATION,
COMMAND_CLASS_ASSOCIATION_GRP_INFO,
COMMAND_CLASS_POWERLEVEL,
COMMAND_CLASS_SWITCH_BINARY,
COMMAND_CLASS_SWITCH_ALL,
COMMAND_CLASS_CONFIGURATION,
COMMAND_CLASS_NOTIFICATION_V8,
COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION_V2,
COMMAND_CLASS_TRANSPORT_SERVICE_V2,
COMMAND_CLASS_SECURITY,
COMMAND_CLASS_SECURITY,
COMMAND_CLASS_SECURITY_2,
COMMAND_CLASS_SUPERVISION
COMMAND_CLASS_FIRMWARE_UPDATE_MD_V4
A
B
D
C
Advertisement
Table of Contents
Related Manuals for showhome ZW97
Summary of Contents for showhome ZW97
-
Page 1: Basic Operation
RED LED indicates temperature alarm Include ZW97 to/from a Z-Wave Gateway with supporting Security the ZW97 can support the Primary Controller that implemented the security S2. Refer to your primary controller instructions to process the Secure Inclusion.The Below listed Command Class are all supported the Security S2... - Page 2 -Association group_2: After receiving a basic set command from a local switch or gateway, On (0xFF) or Off (0x00), the ZW97 of left outlet will automatically send out a related basic set command, On (0xFF) or Off (0x00) to its associated group.
- Page 3 FCC Caution. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection ...
