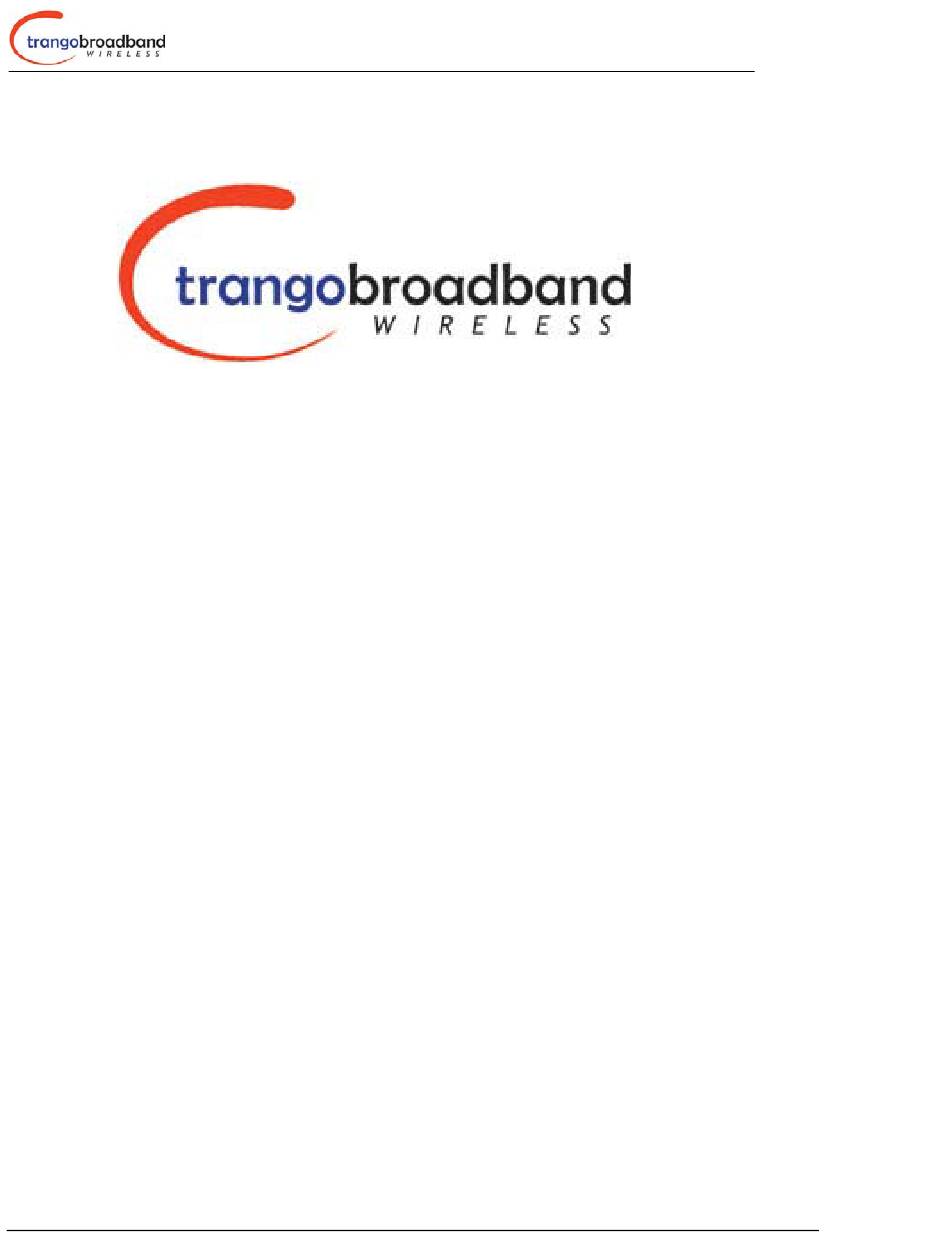

- Page 1 User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit Access5830™ Wireless Broadband System PROFESSIONAL INSTALLATION GUIDE M5830S-SU-EXT [draft]...
-
Page 2: Fcc Information
The M5830S-SU-EXT subscriber unit (SU) works in conjunction with the M5830S-AP-60 access point. Please see the Access5830 User Manual for general information on overall system implementation, configuration, and management of the access point. The Access5830 Users Manual also covers many important aspects of subscriber unit configuration and management which is applicable to the M5830S-SU-EXT. -
Page 3: General Information
The MAC ID and Serial # are printed on a label on the back of the radio. 4.2 Connections See Access5830 User Manual for detailed diagram for connecting radio to network or PC utilizing the power over Ethernet (PoE) J-Box can cat-5 cables. -
Page 4: Installation Instructions
Please see the Access 5830 User Manual for instruction on grounding and weatherproofing the installation. In addition to the guidelines listed in the Access5830 User Manual, installers must cover cable-SMA connectors with heat shrink tubing to provide weatherproofing of the RF cable connectors. - Page 5 User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit AD5830-23-D PANEL ANTENNA To install the AD5830-23-D Panel antenna please see the drawing below 11° 27° 25° 61° WALL MOUNT BRACKET POLE MOUNTING WALL MOUNTING A-9014 HEAT SHRINK HERE AFTER TIGHTENING CONNECTOR 2X CA-9023 4X ATTACH WALL BRACKET WITH POLE MOUNT("V") BRACKET...
- Page 6 User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit RADIOWAVES SPD5.2-X PRIME FOCUS DISH ANTENNAS To install the SPD2-5.2, SPD3-5.2, or SPD4-5.2 Prime Focus Dish antennas, please follow the instructions supplied with the antenna. The Cable Kit CBLCOAX-7 (ordered separately) must be used with these antennas so that the Antenna may be mated to the SMA Reverse Polarity connector on the Radio.
-
Page 7: Specifications
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit Specifications TRANSMITTER SECTION Radio Section Frequencies: Storable Channels: 30 memory locations Channel spacing: Low Band: 5.260 to 5.340 GHz in 1 MHz increments High Band: 5.736 to 5.836 GHz in 1 MHz increments Default Channels- Channel 1: 5.736 GHz... - Page 8 User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit Data Input Section Data Rate (User): Up to 10 MBPS Sustained throughput Format: 10/100 BaseT IEEE 802.3 Ethernet compliant Ethernet packet: Up to 1600 byte long packets Power Input Voltage: Input voltage range at unit is 10.5 VDC to 24 VDC max Power is supplied on Ethernet cable using junction box provided with up to 330 foot 24 AWG STP cable.
-
Page 9: Mechanical And Environmental
User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit Data Output Section Data Rate (User): 10 MBPS Maximum sustained throughput Format: 10/100 BaseT IEEE 802.3 Ethernet compliant Ethernet Protocols: TCP/IP, Telnet, TFTP, UDP, HTTP MECHANICAL AND ENVIRONMENTAL General Material: Powdercoated Aluminum base with polycarbonate radome Size: 12.5”x5”x8”... - Page 10 User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit Type: Linear wall mount transformer Input: 120 VAC Output: 20 VDC +/- 1 V Max current: 1200 mA STANDARD ANTENNA FOR M5830S-SU-EXT (model AD5830-24-D) The unit is designed to operate with the Trango Boadband model AD5830-24-D dual linear polarized dish antenna.
- Page 11 User Manual for Access5830™ M5830S-SU-EXT Subscriber Unit Dimensions: 14.6”x 14.6”x 1.58” (371mm x 371mm x 40mm) Weight: 5.5 lbs (2.5 kg) Connector: SMA female connectors (2) Cable: 24” SMA-M to SMA-RP double braided RGS142 cable Mounting Provisions: Mounting kit supplied for up to 3”diam pole or flat surface...
