Summary of Contents for THERA-Trainer TT-SENS-14-01

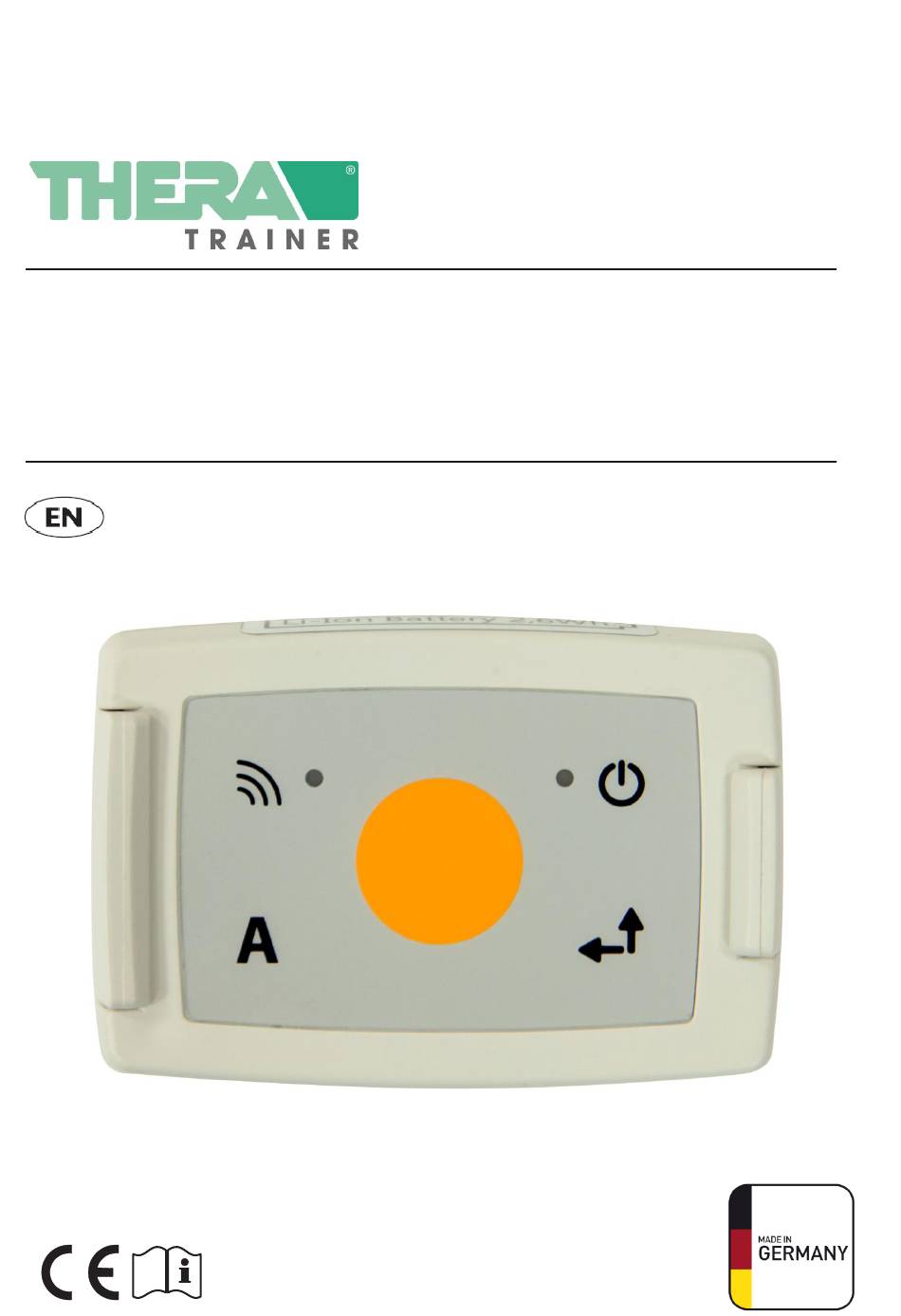

- Page 1 FEEDBACK SENSOR INCL. TOUCH KEY (MODEL: TT-SENS-14-01) USER MANUAL English translation of original user manual...
- Page 2 FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL Congratulations! You've made a great choice by purchasing this feedback sensor incl. touch key. This innovative feedback sensor incl. touch key delivers maximum performance – Made in Germany. This user manual will help you get to know your feedback sensor incl. touch key better. It takes you safely through the functions and use of your new feedback sensor incl.
-
Page 3: Table Of Contents
Fixing the feedback sensor to the THERA-Trainer coro ....... . -
Page 4: User Guide
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL USER GUIDE The user manual and product are marked with a variety of symbols. These symbols and their functions help you to use the product safely and efficiently 1.1 Warning notices Warning categories Warnings have different signal words depending on the type of danger: ... -
Page 5: Symbols On The Product
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL 1.4 Symbols on the product User manual Follow the user manual! Manufacturer Date of manufacture Market launch in accordance with Medical Devices Directive 93/42/EEC Serial number Disposal: Do not dispose of the product in household waste. -
Page 6: Safety And Dangers
Exclusively charge the feedback sensor incl. touch key outside the immediate patient surrounding (1.5 metres). Ensure that the feedback sensor incl. touch key connected to the THERA- Trainer software is clipped to the correct THERA-Trainer. The maximum range of movement must not overstrain the user. ... -
Page 7: Intended Use
The feedback sensor incl. touch key is used together with the suitable THERA- Trainer software and a control and display unit to mobilise persons with limited mobility with help of exercises. Note Observe the indications of the THERA-Trainer and THERA-Trainer software being used. User ... -
Page 8: Forseeable Misuse
Feedback sensor incl. touch key USB charging cable Bluetooth receiver for sensors Feedback sensor mounting kit for THERA-Trainer balo - OR - THERA-Trainer coro User manual Feedback sensor incl. touch key Art. no.: A003-928_Rev 01 Last edited: CW40/2014... -
Page 9: Options
USB charger for feedback sensor The feedback sensor incl. touch key can only be used in combination with the Note suitable THERA-Trainer software, a control and display unit, and a Bluetooth receiver for sensors. 5.4 Removable parts Name Article no. -
Page 10: Overview
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL 6 OVERVIEW (1) Sensor orientation (2) Touch key with touch pad (3) Sensor detection (here feedback sensor incl. touch key Type A) (4) Socket for USB charging cable (5) Feedback sensor incl. touch key (applied part Type BF) (6) Connection status indicator (7) Activation/charge status indicator (8) Sensor holder... -
Page 11: Startup
Before using the equipment for the first time, charge the battery for at least 6 hours. 7.1 Fixing the feedback sensor to the THERA-Trainer balo Fix the feedback sensor incl. touch key to a THERA-Trainer balo using the feedback sensor mounting kit for the THERA-Trainer balo. To fix it, follow the instructions below: ►... -
Page 12: Fixing The Feedback Sensor To The Thera-Trainer Coro
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL 7.2 Fixing the feedback sensor to the THERA-Trainer coro Fix the feedback sensor incl. touch key to a THERA-Trainer coro using the feedback sensor mounting kit for the THERA-Trainer coro. To fix it, follow the instructions below: ►... -
Page 13: Plugging In Bluetooth Receiver For Sensors
1 must be plugged into a free USB interface on the control and display unit. Note If the Bluetooth receiver is first inserted after the THERA-Trainer software has been switched on, it will be unable to make a connection to the feedback sensor incl. touch key. - Page 14 FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL USB Charging The feedback sensor incl. touch key is supplied with a USB charging cable as standard. This can be used to charge the battery from a USB interface (computer, cable control and display unit, etc.) without a feedback sensor USB charger. ...
- Page 15 FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL Charging the battery: ► Remove the feedback sensor incl. touch key from the sensor holder. ► Switch off the feedback sensor incl. touch key before charging (see chapter 8.2). ► Ensure that the feedback sensor incl. touch key is switched off while charging.
-
Page 16: Switching On/Off The Feedback Sensor Incl. Touch Key
► Check whether the correct Bluetooth receiver for sensors is plugged in (article no. A004-020). ► Ensure the correct Bluetooth receiver for sensors is plugged in before starting the THERA-Trainer software. LED lights green: A connection is being established between the feedback sensor incl. touch key and the control and display unit. -
Page 17: Error Indicators
If a system fault occurs in the feedback sensor incl. touch key, the LED connection status indicator flashes red. The control and display unit shows the error code. Observe the user manual for the relevant THERA-Trainer software. The software version of the feedback sensor incl. touch key is required for Software troubleshooting. -
Page 18: Cleaning And Disinfection
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL 10 CLEANING AND DISINFECTION Danger to life due to electric shock! Always switch off the feedback sensor incl. touch key before cleaning and disinfecting. The charging process must always be finished and the Danger feedback sensor incl. -
Page 19: Maintenance And Repairs
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL 11 MAINTENANCE AND REPAIRS Danger to life due to electric shock! Switch off the feedback sensor incl. touch key before all maintenance and servicing work. Stop the charging process before all maintenance and Danger servicing work and disconnect the feedback sensor from the mains. -
Page 20: Technical Data
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL 12 TECHNICAL DATA Feedback sensor incl. touch key Dimensions: l x w x h approx. 7.5 cm x 5.5 cm x 2.5 cm Weight: approx 80 g Protection category: IP22 (only if the feedback sensor incl. touch key is attached to the sensor holder) Mains supply USB 100-240 V~, 50/60 Hz... -
Page 21: Notes On Electromagnetic Compatibility Of The Feedback Sensor
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL 14 NOTES ON ELECTROMAGNETIC COMPATIBILITY OF THE FEEDBACK SENSOR INCL. TOUCH KEY 14.1 Electromagnetic emissions Connection Electromagnetic Limit Underlying emission/frequency standard range (MHz) Housing Radiation 30..230 30 dB(uV/m) quasi-peak CISPR 11 value at 10 m distance Radiation 230..1000 37 dB(uV/m) quasi-peak value at 10 m distance... -
Page 22: Electromagnetic Immunity
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL 14.2 Electromagnetic immunity Connection Test Underlying Test Assess- standard specification/ ment Intensity criterion Housing Electrostatic EN 61000-4-2 Contact ± 6 kV discharge ESD Technical Intensity 3 air ± 8 standard EN kV intensity 3 60601-1-2 Emitted EN 61000-4-3... -
Page 23: User Information Acc. To Fcc15.21
FEEDBACK SENSOR INCL. TOUCH KEY USER MANUAL 14.3 User Information acc. to FCC15.21 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 14.4 Statement for Class B digital device acc.to FCC 15.105 Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 24 MANUFACTURER: ® THERA-Trainer a trademark of medica Medizintechnik GmbH Blumenweg 8 88454 Hochdorf Germany Phone: +49 7355-93 14-0 Fax: +49 7355-93 14-15 E-Mail: info@thera-trainer.de Internet: www.thera-trainer.de Article no.: A003-928_Rev 01 Last edited: CW40/2014 For declarations of conformity, see www.thera-trainer.de...
