Air Mentor Intelligence Air Mentor 2 User Manual

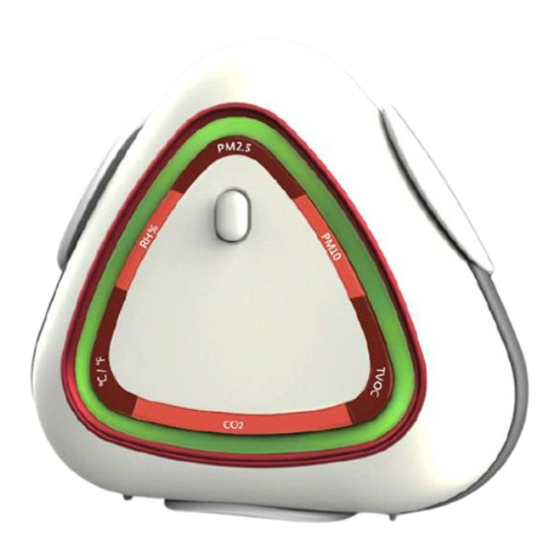

Connected 6-in-1 air quality monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Air Mentor 2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Air Mentor Intelligence Air Mentor 2

  • Page 2: Hardware Introduction

    Hardware Introduction LED Breathing Light Functional Key Long press for 5 seconds to force release current connected Bluetooth device. Monitor Cap (with magnet) Bluetooth Connection Light WiFi Connection Indication Power Button DC In 5V/1A USB Power Connector Wall Hanging Strap...

  • Page 3: First Use

    When use for the first time, please use our USB power supply and power cord accessories, after wired, please turn on the power on the back of Air Mentor 2. Our LED breathing light will start flashing, 30 seconds later, Air Mentor 2 will start showing air quality color.

  • Page 4: Wall Hanging

    Wall Hanging Air Mentor 2 shipped with our wall hanger kit, it’ s designed to be easily installed on the wall.
  • Page 5 App Installation & Connection Please scan below QR Code to download Air Mentor 2 App. iOS and Android Apps are both provided. After complete App installation, it will guide you to connect with your Air Mentor 2.
  • Page 6 Setup smart phone App and Air Mentor 2 connection Every time you turn on Air Mentor 2, LED will flash with blue, green, yellow, orange, red and purple in sequence, after 30 seconds, device will start air quality monitoring, temperature and relative humidity will reach environment status in 30 minutes.
  • Page 7 Orange ‒ Successfully connected with WiFi AP Green ‒ Successfully connected to Air Cloud WiFi Setup Reminder Please connect your smart phone to your WiFi AP first. Air Mentor 2 only supports 2.4GHz WiFi connection, LED Color please make sure your WiFi AP supports this spec.
  • Page 8 LED Breathing Light Air quality is shown by 5 breathing light colors; green, yellow, orange, red and purple. Breathing light color and frequency will change with air quality monitoring level. Breathing Light Users can adjust breathing light brightness through App. 0-50 51-100 101-150...
  • Page 9 Warning Air Mentor 2 will alert user along with air quality change, users can setup alarm level through App setup page. Mute/Unhealthy (Red)/Very Unhealthy (Purple) If the device is setup with WiFi connection, smart phone App will receive the relative air quality push notification.
  • Page 10 Checking Air Quality Analysis Air quality monitoring App will real time provide you with air quality status, analysis and improvement suggestions.

  • Page 11: Knowledge Base

    Knowledge Base Our knowledge base provides all kinds of air quality related knowledge, and their influences to your health, we also provide users with proper suggestions.

  • Page 12: App Update

    App Update App will remind users with update notification. History Data When Air Mentor 2 is correctly connected to Air Cloud, history data will automatically be stored at cloud side. Users can check them through App.
  • Page 13 Limited Warrantee Under normal use by following Air Mentor 2 user instruction, we provide one year limited warrantee from the date with your purchase.
  • Page 14 Safety Please do not install device near heat source. Please do not put device on top of dangerous products. Please do not install or put device near water. Please do not dissemble device or remove seal.
  • Page 15 When connected with smart phone, the ventilation hole every 6 months. on the back to Air Mentor 2 will flash blue light every 5 seconds. If users would like to force release the connection, users may long press the functional key for 5 seconds till users hear long beep.
  • Page 16 Product Name Air Mentor 2 Dimension 106 x 115 x 44.5 mm (height x width x depth) Operating Temperature 5 - 40 ℃ (41℉ - 104℉) Power DC 5V , 1A Detectable Particle size >0.7μm Particulate Matter PM2.5 / PM10 Range 0-1,000μg/m³...
  • Page 17 Product Name Air Mentor 2 Product Number 8099-AP Nominal Voltage Country of Manufacture Taiwan,R.O.C This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 18 AIR MENTOR Air Mentor Intelligence Corp. www.air-mentor.com...
