Turtle AvMap Quick Manual

CAUTION
The Turtle Smart GPS/GNSS Receiver unit is believed to be accurate and reliable, but it
can be misinterpreted. For this reason we suggest that you read carefully this Quick Guide
and make sure you understand with its contents before using the Turtle Smart GPS/GNSS
Receiver unit.
Do not open the Turtle Smart GPS/GNSS Receiver. There are not serviceable parts inside.
Repairs should only be made by an authorized electronic technician, please contact your local
dealer (any unauthorized repair could result in damage to the unit and this damage may not be
covered by the warranty).
The neodymium magnets can damage TVs and laptops, credit
cards, computer media, mechanical watches, hearing aids,
pacemakers and heart defibrillators, vehicle keys, USB stiks,
memory cards, CD, DVD, and other devices.
Keep magnets away from all appliances and objects that can
be damaged by intense magnetic fields.

LIMITED WARRANTY

The manufacturer warrants each Turtle Smart GPS/GNSS Receiver unit to be free from
defects in material and workmanship under normal use and service for a period of 24 months
from original retail purchase. During the warranty period, the manufacturer will repair or
replace any component which fails in normal use without charges for parts or labour.
To receive warranty service, contact your local authorized dealer for shipping instructions.
This limited warranty does not extent to any Turtle Smart GPS/GNSS Receiver unit which
has been subjected to misuse, neglect, accident, incorrect wiring or improper installation.
The manufacturer reserves the right to repair or replace the Turtle Smart GPS/GNSS
Receiver unit at its sole discretion.
This is the only warranty. The manufacturer expressly disclaims any and all other warranties,
either expressed or implied, including warranties of suitability or fitness for a particular
purpose. In no event will manufacturer be liable for consequential damages or loss of use.
This warranty gives you specific legal rights which may vary from state to state.
NOTE We will not be liable for errors contained herein, or for incidental or consequential
damages in connection with the performance or use of this material.
farm.avmap.it
support@avmap.it

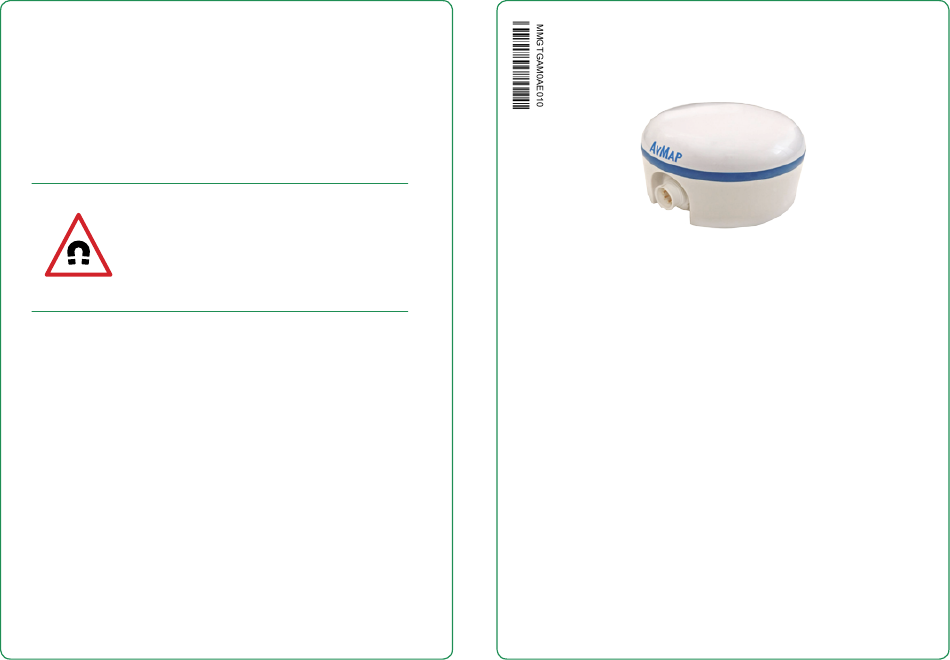

Turtle Smart GPS/GNSS Receiver

QUICK GUIDE

The Turtle Smart GPS/GNSS Receiver includes GNSS receiver and GNSS antenna integrated
into one compact housing.
The Turtle Smart GPS/GNSS Receiver achieves high sensitivity and minimal acquisition time
while maintaining low system power.
The new more compact and robust shape provides a firm grip on the support surface and
enables the safe transit of the vehicle even in the presence of dense vegetation.

TECHNICAL SPECIFICATIONS

PERFORMANCE

• GPS, GLONASS*, GALILEO
• SBAS
(WAAS, EGNOS, MSAS, GAGAN, SDCM)
• 72 channels
• Update rate up to 10 Hz
• Supply Voltage: 10 – 35 Vdc
(provided on pin 4 of DB9 connector)

PHYSICAL AND ELECTRICAL

• Dimensions: ᴓ 98 mm x H 50 mm
• Weight: 240 g without cable
• Power consumption: 0.8 W max
• 4m Conxall to DB9 power cable included
• Integrated magnets for easy mounting

ENVIRONMENTAL

• Operating Temperature: -20°C to +60°C
• Storage Temperature: -30 °C to +80 °C
• Waterproof: IPX7

COMMUNICATION

(through RS-232 serial port – DB9 connector)
• NMEA 0183 v4.0
• Baud rate 4800 - 115200
• NMEA output messages: GGA, GLL, RMC,
GSA, GSV, VTG, ZDA
*Glonass not supported by G6 Farmnavigator
