Summary of Contents for Tech Logic TL SECGATE A

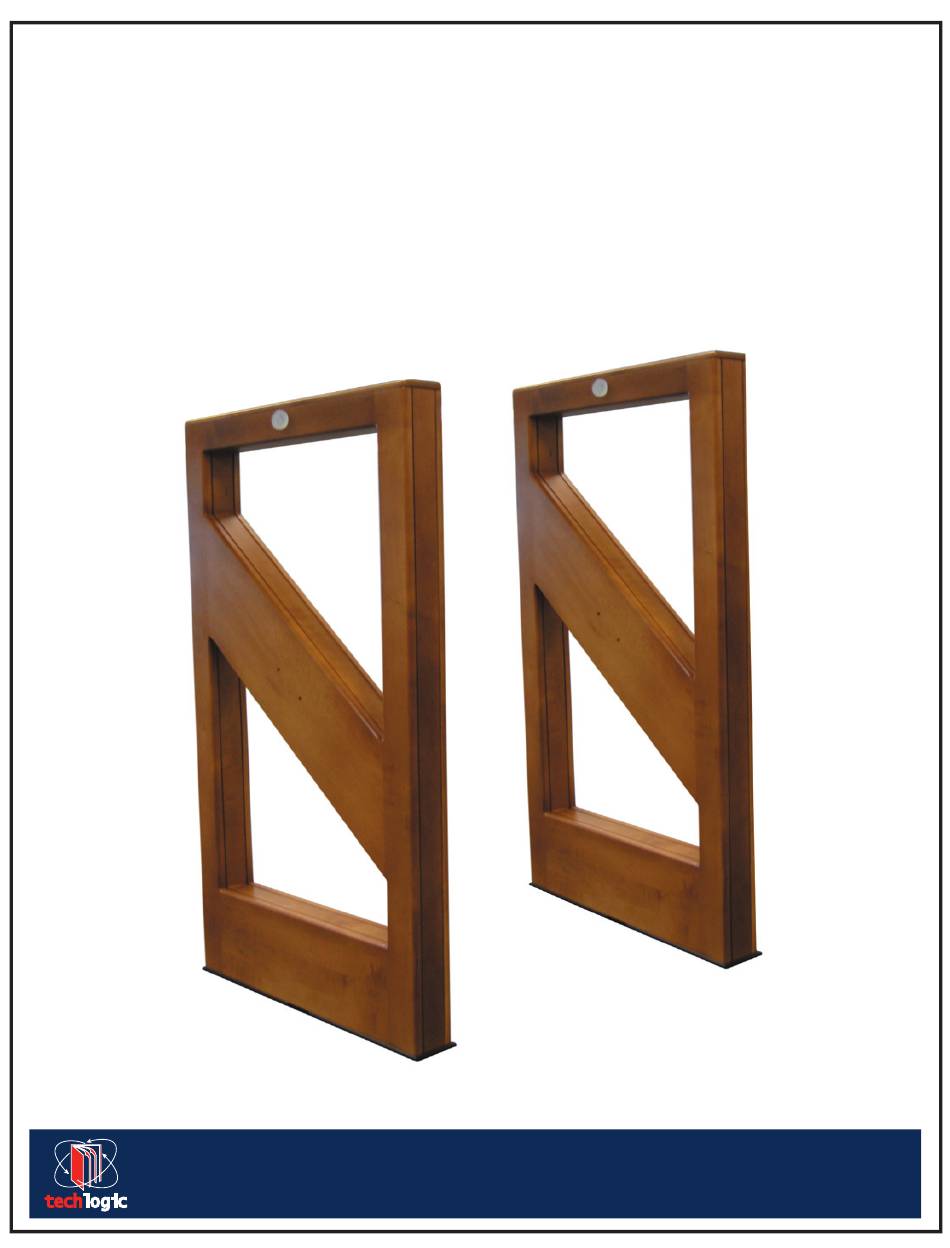

- Page 1 User’s Manual Tech Logic Security Gates 1818 Buerkle Road • White Bear Lake, MN 55110 • Tel: 800.494.9330 • 651.747.0492 • Fax: 651.747.0493 • www.tech-logic.com ®...
- Page 2 Tech Logic Corporation. Tech Logic Corporation assumes no responsibility or liability for any errors or inaccuracies that may appear in this manual.
-
Page 3: Table Of Contents
3 Typical Antenna Confi guration (Gate Antenna with Two Antennas) ... 4 3.1 Project Notes ..................4 4 Technical Data .................. 5 4.1 Antenna Tech Logic SECGATE Type A and B ........5 4.2 Contact Information ................8 4.3 Approval ....................8 Security Gate User’s Manual... -
Page 4: Cautions And Warnings
1 Cautions and Warnings Caution! The Antenna-Tuner and the Antenna conductor carry voltages up to 1000V. Warning! • The device may only be used for the intended purpose designed by the manufacturer. • The operation manual should be conveniently kept available at all times for each user. •... -
Page 5: Performance Features Of The Tl Secgate Type A/B Antennas
2 Performance Features of the TL SECGATE TYPE A/B ANTENNAS The TL SECGATE A includes the Reader and Multiplexer. The Reader and Multiplexer are mounted inside the antenna base. The TL SECGATE B antenna is the same antenna without the Reader or Multiplexer. -
Page 6: Typical Antenna Confi Guration (Gate Antenna With Two Antennas)
3 Typical Antenna Confi guration (Gate Antenna with Two Antennas) The standard confi guration of a gate with three-dimensional tag orientation consists of a Tech Logic SECGATE Type A antenna and a Tech Logic SECGATE Type B antenna. If a tag moves through the gate horizontally, it can be read at least once. This ensures high reliability of the antenna system. -
Page 7: Technical Data
1 m/s Read serial number Read data Table 2: Design Notes 4 Technical Data 4.1 Antenna Tech Logic SECGATE Type A and B Mechanical Data Housing Wood Dimensions (W x H x D) 30.5” x 66.8” x 4.5”... - Page 8 Mechanical Data Mounting Number of attaching points Recommended anchors Ø 3/8” (1 cm) Recommended minimum load capacity 5000 N / anchor of the fl oor fastener Maximum horizontal load on the top 250 N* edge of the antenna The outside dimensions of the antenna are shown in Figure 2. Figure 2: Antenna outside dimensions Security Gate User’s Manual 25013403_Rev A...
- Page 9 Electrical Data Customer Supply Voltage 115 VAC, 2.9 Amps Gate Supply Voltage 24 V ± 15% Noise Ripple: max. 150 mV Power Consumption max. 32 VA Operating Frequency 13.56 MHz Transmit Power 4 W -- 12 W Maximum transmitting power per 10 W antenna Permissible overall transmitting...
-
Page 10: Contact Information
For the customer support center you will need your TLC Customer ID and zip code. 4.3 Approval The technical data for the ID ISC.LRM2000 reader built into the Tech Logic SECGATE A antenna can be found in the power supply panel which is included with the device.
