P1PE P5200BC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

FOR YOUR SAFETY
You must read and understand
this manual before use.
Keep this manual for future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P5200BC and is the answer not in the manual?

Questions and answers

Summary of Contents for P1PE P5200BC

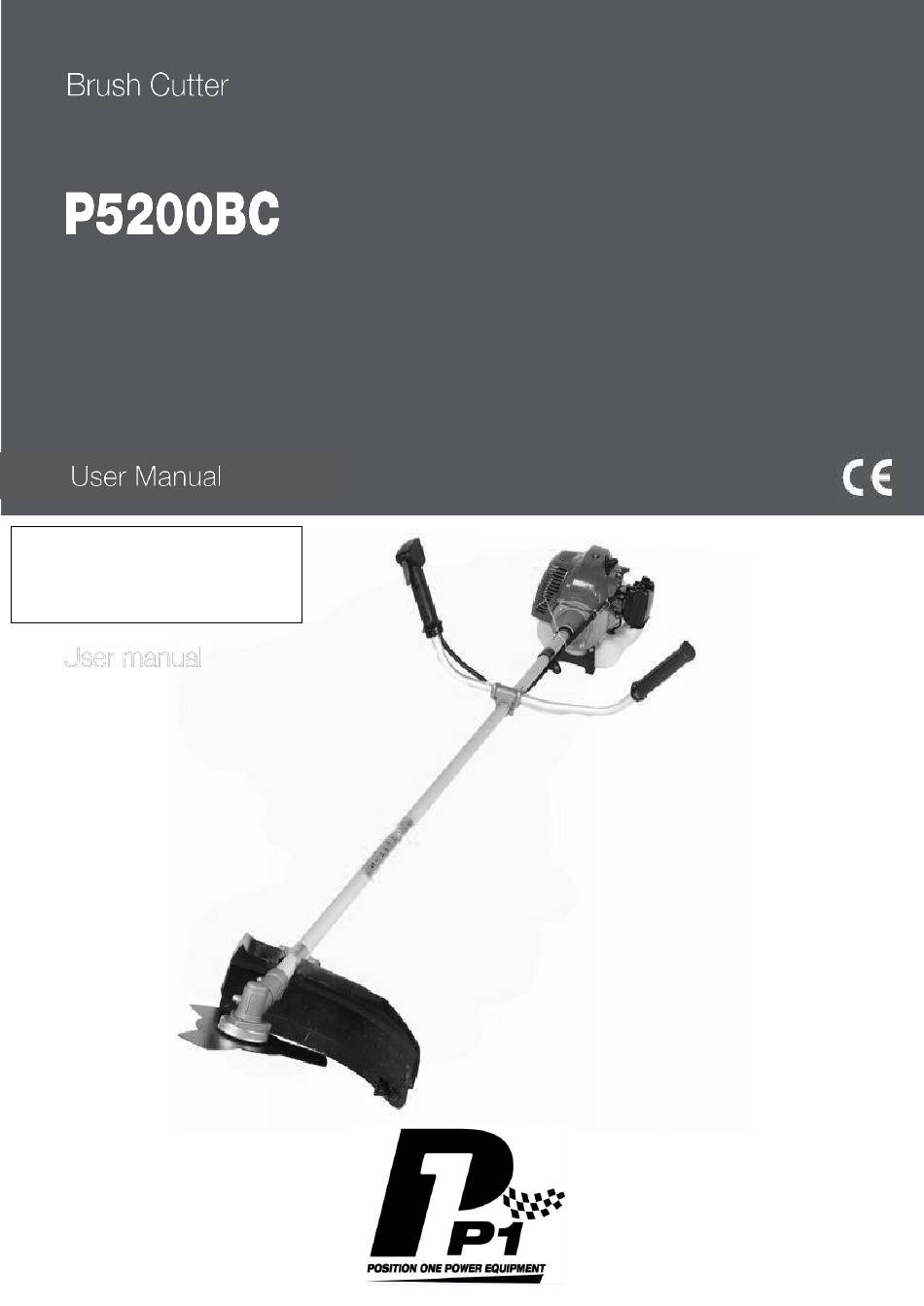

  • Page 1 FOR YOUR SAFETY You must read and understand this manual before use. Keep this manual for future reference.

  • Page 2: Table Of Contents

    INDEX CONTENTS PAGE NO.S SAFETY 3 - 7 MACHINE SPECIFIC SAFETY 7 - 8 PART LOCATIONS MACHINE ASSEMBLY 10 - 11 STARTING PROCEDURE 12 - 16 STOPPING PROCEDURE OPERATING INSTRUCTIONS 17 - 19 MAINTENANCE 20 - 26 TROUBLESHOOTING TRANSPORTING DECLARATION OF CONFORMITY RECYCLING &...

  • Page 3: Safety

    1. SAFETY General Safety Notes. The operator of the machine is responsible for, and has a duty of care in making sure that the machine is operated safely and in accordance with the instructions in this user manual. Keep the manual safe and pass it on if the machine is loaned or sold to another user.
  • Page 4 1.10 Carbon Monoxide (where applicable). 1.11 Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as serious long term health problems such as brain damage. 1.12 The symptoms of carbon monoxide poisoning can include but are not limited to the following;...
  • Page 5 1.24 ALWAYS clean up spills promptly using absorbent granules and a lidded bin. 1.25 ALWAYS dispose of waste fuels correctly. 1.30 Fueling/De-fueling (where applicable). CAUTION ALL FUELS ARE FLAMABLE 1.31 ALWAYS fuel and defuel in a well ventilated area outside of buildings. 1.32 ALWAYS wear correct, suitable and fit for purpose Personal Protective Equipment (PPE), suggested items are but not limited to safety gloves, overalls.
  • Page 6 1.50 Batteries (where present). 1.51 Batteries present a risk if they become damaged by the possible leaking of electrolyte. This electrolyte is an acid and can cause serious burn injuries. Care should be taken when working on or near them. NOTE the electrolyte may be in a liquid or gel form.

  • Page 7: Machine Specific Safety

    1.71 The operating noise of the machine can damage your hearing. Wear hearing protection such as earplugs or ear defenders to protect your hearing. Long-term and regular users are advised to have hearing checked regularly. Be especially vigilant and cautious when hearing ear protection because your ability to hear alarm warnings will be reduced.
  • Page 8 CAUTION Blade thrust can cause serious personal injury. Carefully study this section. It is important that you understand what causes blade thrust, how you can reduce the chance of blade thrust and how you can remain in control of the unit if blade thrust does occur.

  • Page 9: Part Locations

    3. PART LOCATIONS Handle Recoil Starter Handle Suspension Point Fuel Tank Start / Stop Switch Primer Bulb Throttle Cable Choke Lever Throttle Trigger Air Filter Cover Throttle Set Button Cutting Attachment Guard Main Shaft Gearbox Shaft Bolt Trimming Head Exhaust / Muffler Brush Cutter Blade...

  • Page 10: Machine Assembly

    4. MACHINE ASSEMBLY Loosen the 4 bolts on the upper clamp and insert the handle. Retighten the bolts. Put the throttle assembly onto the handle and tighten the nut and bolt securely. Place the cutting attachment guard on the gearbox and attach it with the hardware provided.
  • Page 11 INSTALLING THE TRIMMER HEAD Place the collar ring (3) on the shaft thread (2). Insert the allen key provided (1) into the gear case locking hole. 3.10 Screw the nylon spool (4) onto the shaft thread if the spool is threaded. If the spool does not have a threaded centre hole, use the nylon nut and tighten securely (you will have to remove the spool from spool housing).

  • Page 12: Starting Procedure

    5. STARTING PROCEDURE WARNING All fuels are flammable and must be handled and stored correctly. Always ensure there is adequate ventilation when handling fuels. NOTE This machine is equipped with a two stroke engine and must always be run using a mixture of unleaded petrol and two stroke engine oil.
  • Page 13 Move the choke lever (1) to the closed position. (1) Choke Lever (2) Close Open Move the stop switch to the Run/Start position. Set the throttle trigger to the start position by pulling the throttle lever back and push. Place the unit on flat level ground. Keep the cutting head clear of everything around it.
  • Page 14 WARNING This machine is equipped with a centrifugal clutch, so the cutting attachment will start to rotate as soon as the engine has started. When starting, place the machine on flat, clear ground to ensure the cutting head does not come in to contact with any obstacles. Once the engine has attempted to fire, move the choke lever downwards to open the choke and restart the engine.
  • Page 15 ADJUSTING THE THROTTLE CABLE NOTE You must only make adjustments after the engine has had time to warm up. 4.14 The normal amount of play is 1 to 2mm when measured at the carburetor end. 4.15 If the cable requires adjustment, remove the air filter housing to expose the adjustment screw.

  • Page 16: Stopping Procedure

    ADJUSTING IDLE SPEED NOTE You must only make adjustments after the engine has had time to warm up. 4.19 If the engine stalls when idling, you will need to adjust the idle adjusting screw. 4.20 The idle adjusting screw can be accessed via the back of the air filter housing next to the choke lever.

  • Page 17: Operating Instructions

    7. OPERATING INSTRUCTIONS WARNING Always wear the appropriate Personal Protective Equipment (PPE) when using this machine. Never lean over the rotating cutting head. Rocks or other debris could be thrown into your eyes or face and cause serious injury. WARNING Keep the cutting attachment guard in place at all times.
  • Page 18 Avoid thrown debris by sweeping from your left to your right. Use a slow, deliberate action to cut heavy growth. The rate of cutting motion will depend on the material being cut. Heavy growth will require a slower action than light growth. Never swing the machine hard as to lose your balance.
  • Page 19 6.13 When clearing a wide area, start working from your left and work towards the right to avoid the interference of cut grass. 6.14 The blade may be clogged by weeds if the engine speed is too low, or if the blade cuts too deeply into the weeds.

  • Page 20: Maintenance

    8. MAINTENANCE CAUTION ALWAYS stop the engine and unplug the spark plug cap before doing any repairs or maintenance. ALWAYS wear the correct Personal Protective Equipment when carrying out and maintenance or repairs. AIR FILTER The air filter, if clogged, will reduce engine performance. Remove the air filter cover (1) and inspect the foam air filter element.
  • Page 21 FUEL FILTER If the engine runs short of fuel. Open the fuel filler cap and inspect the fuel filter (1) for blockage. If blocked use a soft brush to clean or replace. (1) Fuel Filter SPARK PLUG WARNING The spark plug MUST be tightened with a torque of 9.8 – 11.8Nm otherwise the engine will overheat causing damage.
  • Page 22 7.14 Check the spark plug washer for damage and replace if required. 7.15 Refit the spark plug by hand to make sure it does not cross thread. Tighten the spark plug to a torque of 9.8 – 11.8 Nm. 7.16 7.17 Reattach the spark plug HT lead cap.
  • Page 23 TRIMMING LINE WARNING For safety reasons DO NOT use metal reinforced line. NOTE For replacement line, use a diameter of 2.4mm (.095in). The spool is capable of holding up to 4m (13ft) of line on the trimmer head. Avoid using larger line as it may cut down the trimming performance. 7.23 Pinch the slotted area either side of the spool housing and unhook the bottom cap.
  • Page 24 ANGLE TRANSMISSION 7.31 The reduction gears are lubricated by multipurpose lithium based grease. 7.32 Add new grease after every 25 hours of use or more often depending on the job condition. STORAGE 7.33 Perform all the general maintenance procedures specified in this manual. 7.34 Clean the outside of the machine.
  • Page 25 AIR FILTER CAUTION Never let the engine run without the air filter being fitted. A dirty air filter element affects the engine performance, increases fuel consumption and makes it difficult to start. If you notice a loss of engine power, check the air filter. If the air filter is damaged you MUST replace it.
  • Page 26 CLEANING CAUTION DO NOT use a pressure washer or hose pipe to clean the machine. Water could penetrate the engine and cause irreversible damage. DO NOT use solvent based cleaning products on plastic parts. 7.50 Clean the machine and its accessories thoroughly after every use. 7.51 Clean moveable parts on a regular basis.

  • Page 27: Troubleshooting

    9. TROUBLESHOOTING NOTE If troubleshooting does not resolve the problem, please contact the dealer. Use only original parts approved by the manufacturer, otherwise a hazard risk arises. Problem Possible Cause Possible Corrective Action Clean or replace the spark Worn, Damaged or Carbon plug.

  • Page 28: Transporting

    Secure the machine so it will not move during transport. Always carry the machine by using the handle. 11. DECLARATION OF CONFORMITY Genpower Ltd confirms that this P1PE product conforms to the following CE Directives; 2006/42/EC Machinery Directive 2004/10/EC EMC Directive...

  • Page 29: Recycling & Product Disposal

    12. RECYCLING & PRODUCT DISPOSAL 10.0 We do not offer a takeback scheme for the recovery of Waste Electrical Electronic Equipment (WEEE) & Batteries. Instead the responsibility to dispose of WEEE and or Batteries is passed onto you by So when it becomes necessary to dispose of your machine you must take it to your local Civic Amenity Site.

  • Page 30: Manual Updates

    We reserve the right to make any modifications without prior notice wherever necessary. 14. WARRANTY To register your machine for the manufacturer’s warranty, please visit: 12.0 http://www.p1pe.co.uk/warranty 15. CONTACT DETAILS Postal Address: Genpower Ltd, Isaac Way, London Road, Pembroke Dock, Pembrokeshire SA72 4RW Website: www.p1pe.co.uk...
  • Page 32 P1PE – Position One Power Equipment Isaac Way, Pembroke Dock, Pembrokeshire, SA72 4RW www.p1pe.co.uk...
