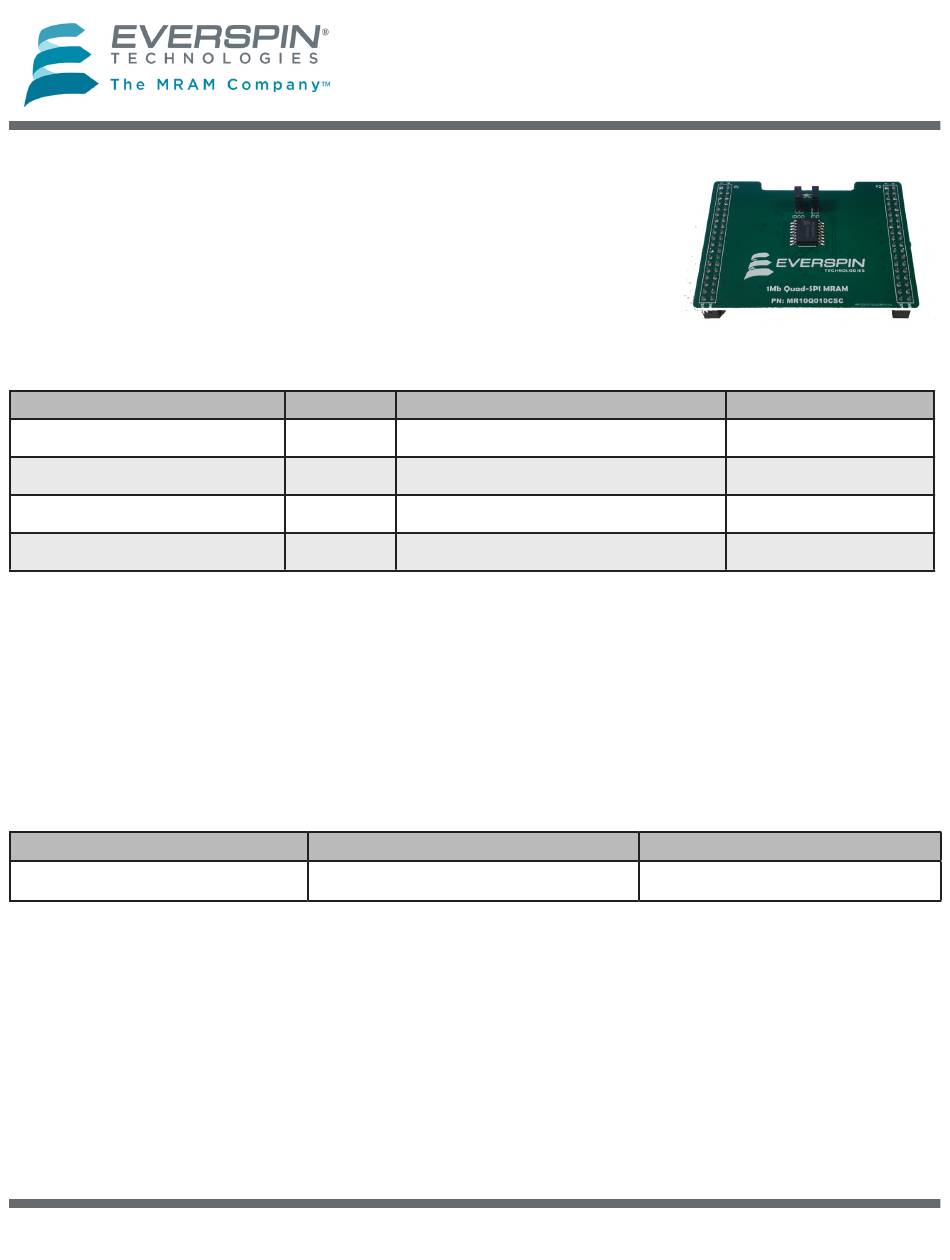

MR10Q010-EVAL1 MRAM Evaluation Board
The MR10Q010-EVAL1 MRAM evaluation board from Everspin is an acces-
sory board that is designed to work with the NUCLEO-L476RG MCU evalua-
tion board from ST Microelectronics.
The Evaluation Board
The MR10Q010-EVAL1 is populated with an Everspin 1Mbit Quad SPI
MRAM suitable for evaluating any of the following Everspin Ordering Part
Numbers:
Everspin OPN
MR10Q010SC
MR10Q010CSC
MR10Q010MB
MR10Q010CMB
Host Board Support
The MR10Q010-EVAL1 Quad SPI MRAM Evaluation board is designed to connect to the MORPHO connec-
tors on the NUCLEO-L476RG evaluation board from ST. The NUCLEO-L476RG uses an STM32L476RGT6 ARM
Cortex-M4 CPU that includes a flexible Quad SPI peripheral connected to the MORPHO connector pins.
The MR10Q010-EVAL1 board includes a high speed bi directional level translator (TXB0106PWR) in order to
shift the I/O level from 3.3V used by the STM32L476RGT6 to the 1.8V required by the MR10Q010. See Ap-
pendix A – MR10Q010-EVAL1 Schematic and Layout for more details.
Host Board Supplier
ST Micro
Copyright © 2016 Everspin Technologies
Everspin Quad SPI MRAM Evaluation Board User Guide
Density
Temperature Grades
1 Mbit
Commercial (0 - 70°C)
1 Mbit
Industrial (-40 - 85°C)
1 Mbit
Commercial (0 - 70°C)
1 Mbit
Industrial (-40 - 85°C)
MCU
STM32F476RGT6
1
MR10Q010-EVAL1
Package
16-SOIC
16-SOIC
24-BGA
24-BGA
Host Board
NUCLEO-L476RG
Revision 1.0, 2/2016
Advertisement
Summary of Contents for Everspin MR10Q010-EVAL1
- Page 1 24-BGA Host Board Support The MR10Q010-EVAL1 Quad SPI MRAM Evaluation board is designed to connect to the MORPHO connec- tors on the NUCLEO-L476RG evaluation board from ST. The NUCLEO-L476RG uses an STM32L476RGT6 ARM Cortex-M4 CPU that includes a flexible Quad SPI peripheral connected to the MORPHO connector pins.
- Page 2 Everspin Quad SPI MRAM Evaluation Board User Guide SETUP: MR10Q010 - EVAL1 MRAM EVALUATION BOARD Besides the ST Micro MCU host board and the Everspin MR10Q010 Quad SPI Evaluation board, you will need: • A computer with Internet access and a USB port.
- Page 3 MR10Q010-EVAL1 Everspin Quad SPI MRAM Evaluation Board User Guide Setup (Continued) Step 3: Log in to ARM mbed and create a Workspace on your computer. developer.mbed.org 1. Log in to . (If you do not already have an mbed account, you will need to cre- ate one.)
- Page 4 MR10Q010-EVAL1 Everspin Quad SPI MRAM Evaluation Board User Guide Setup (Continued) Step 4: Load the platform for the host board you are using 1. The button on the upper right of the Workspace Management screen will read No device selected or, if you have previously loaded a platform, the name of the host board for that platform will appear, as in the NUCLEO-L476RG case shown.
- Page 5 MR10Q010-EVAL1 Everspin Quad SPI MRAM Evaluation Board User Guide Setup (Continued) 4. mbed will open a new window as an information page for that host platform, such as the NUCLEO- L476RG example here. To add this platform to your workspace, click on the Add to your mbed Compiler button.
- Page 6 1. In your Workspace, click Import. 2. The Import a program dialog box will open. Click on the Programs tab. 3. Search for “MR10Q010-EVAL1” program, select it and click Import! 4. The demonstration program will now appear in the Program Workspace.
- Page 7 MR10Q010-EVAL1 Everspin Quad SPI MRAM Evaluation Board User Guide Setup (Concluded) Step 6: Compile the binary file and and load to your MCU evaluation board. 1. Highlight the MRAM_MR10Q010-EVAL1 program folder in your Program Workspace tree in the left- hand column.
- Page 8 MR10Q010-EVAL1 Everspin Quad SPI MRAM Evaluation Board User Guide Run the Demonstration Step 1: Use a terminal emulator to run the demonstration. 1. Use your favorite terminal emulator. For this example, we used the Tera Term emulator from SourceForge at http://en.osdn.jp/projects/ttssh2/releases/.
- Page 9 MR10Q010-EVAL1 Everspin Quad SPI MRAM Evaluation Board User Guide Run the Demonstration (Concluded) 5. The evaluation program demonstrates the following features of the MR10Q010 device: • Read and decode JEDEC ID • Tamper detection bits • Nonvolatile test count • Performance measurements of SPI, Quad SPI, QPI and XIP modes of operation Copyright ©...
- Page 10 Export the Demonstration Code to Other Toolchains You may export the demonstration code to work with other ARM-based toolchains. 1. Once you have the Everspin MR10Q010-EVAL1 example program loaded into ARM mbed you may export it for development in production ARM tool chains.
-
Page 11: Appendix A: Mr10Q010-Eval1 Schematic
MR10Q010-EVAL1 Everspin Quad SPI MRAM Evaluation Board User Guide Appendix A: MR10Q010-EVAL1 Schematic Copyright © 2016 Everspin Technologies Revision 1.0, 2/2016... - Page 12 MR10Q010-EVAL1 Everspin Quad SPI MRAM Evaluation Board User Guide Appendix A (Cont’d): MR10Q010-EVAL1 PCB Layout PCB Top PCB Bottom Copyright © 2016 Everspin Technologies Revision 1.0, 2/2016...
-
Page 13: Revision History
MR10Q010-EVAL1 Everspin Quad SPI MRAM Evaluation Board User Guide REVISION HISTORY Revision Description of Change Date February 24, Initial Release MR10Q010-EVAL1 User Guide. 2016 Copyright © 2016 Everspin Technologies Revision 1.0, 2/2016... -
Page 14: How To Reach Us
Asia Pacific for any other application in which the failure of the Everspin Technologies Everspin Sales Office product could create a situation where personal injury or death may oc- Tel: +86-136-0307-6129 cur. - Page 15 Mouser Electronics Authorized Distributor Click to View Pricing, Inventory, Delivery & Lifecycle Information: Everspin Technologies MR10Q010-EVAL1...
