Barton TankScan W-Series Installation Manual

Introduction
The TankScan Wireless Level System Controller includes a radio/modem
enclosure, an antenna, and an AC power adapter.
System Installation Steps
A. Install Controller (distance & line-of-sight location predetermined).
B. Install monitor(s) on the tank(s)
C. Install fill indicator(s) at a accessible location near the fill point.
D. Install software on host PC
E. Power up and configure the Controller
F. Power up the monitor(s) and fill unit(s).
Controller Installation
Do not install Controller near any RF sources (TV, Radio, etc.). Interference
from such devices can cause data loss and Controller malfunctions.

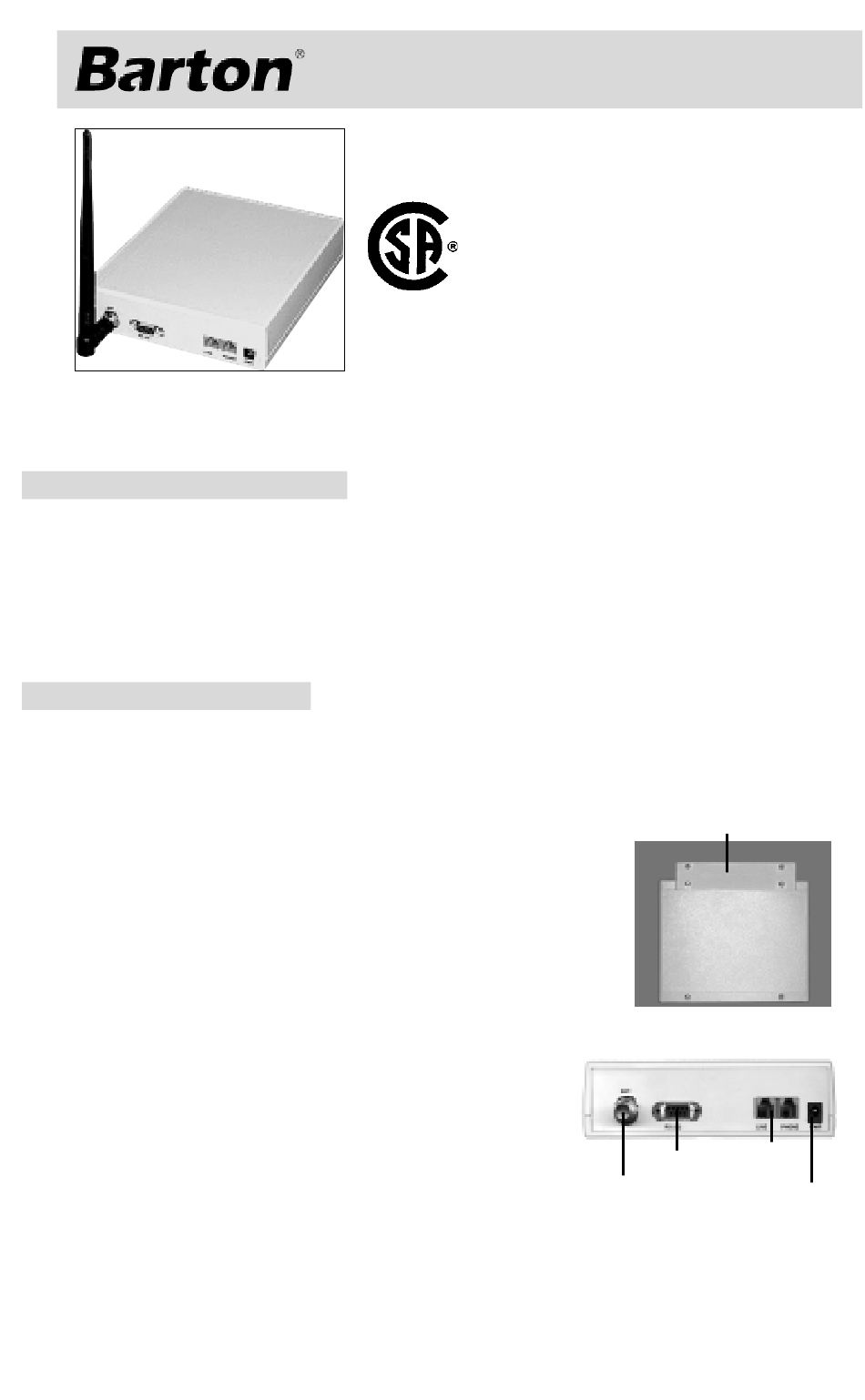

1. Place Controller on stable flat surface or mount on
wall.
a. If desired, install the self-adhesive rubber feet.
b. To wall mount, attach mounting plate to bottom of
enclosure using supplied screws, then attach the
assembly to the wall with the antenna connector
facing up.
Note: Controller must be within reach of the power source/outlet,
phone jack (if used) and PC (if direct
connection is used).
2. Attach Antenna to Controller (pointed upward).
Note: Ant. connector has left-handed thread.
3. Connect Phone Line, using supplied RJ11 cable.
Plug one end into the Controller and the other
into the wall phone jack. If a phone is needed, plug it into the second RJ11
socket on the Controller. Note: RJ11 sockets are in parallel, either can be
used for line.
To reduce the risk of fire, use only No. 28 AWG or larger telecommu-
nications line cord.
