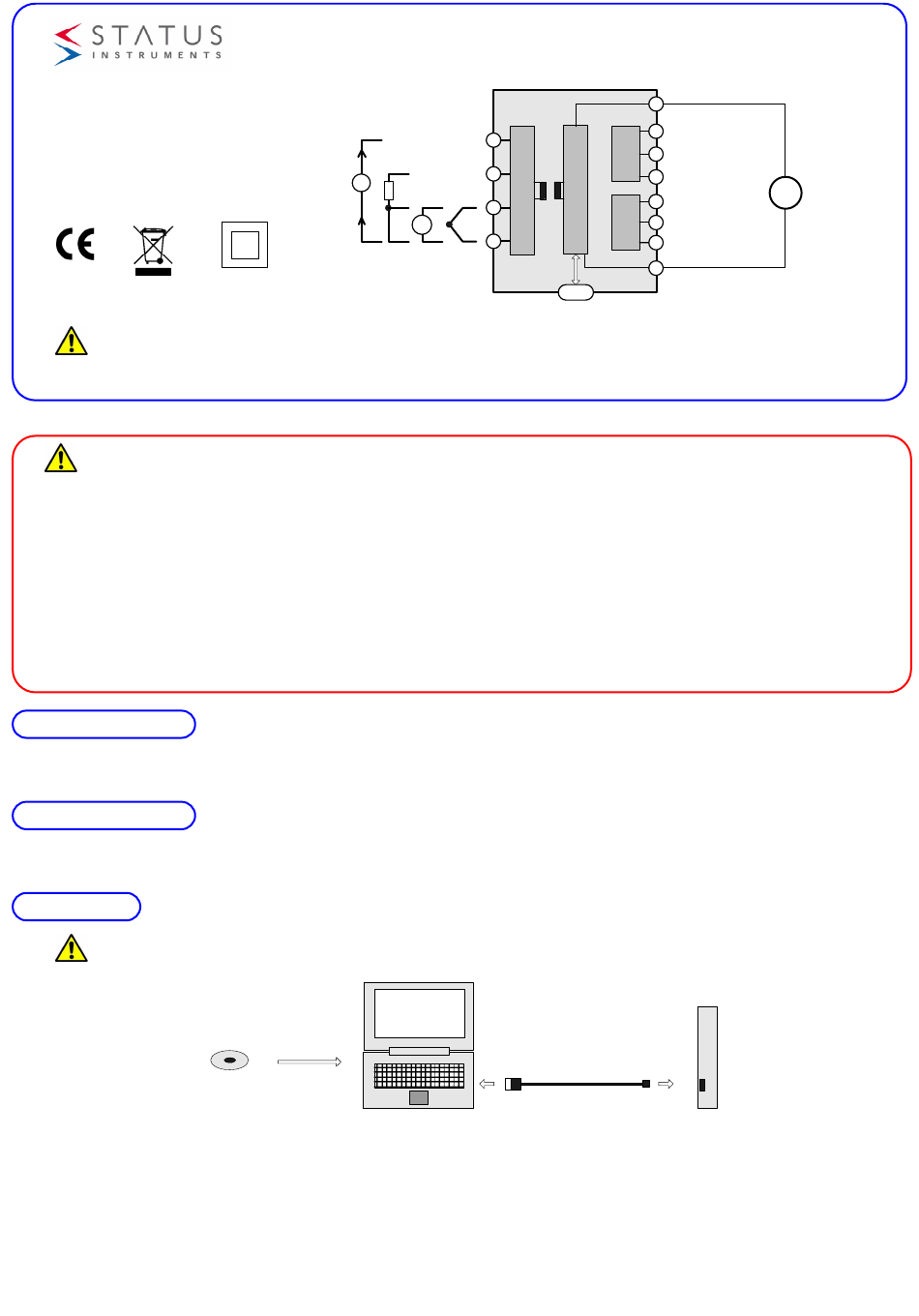

SEM1630 USER GUIDE
DIN RAIL MOUNTED TRIP AMP
UNIVERSAL INPUT
DUAL Form C OUTPUT
Important - Potentially Hazardous situations. Persons responsible for the installation and operation of this equipment must be fully aware of all
aspects of this guide. Failure to follow the instructions can cause severe injuries and damage.
Every effort has been taken to ensure the accuracy of this document, however we do not accept responsibility for damage, injury, loss or expense resulting from errors and omissions, and we reserve the right of amendment without notice.
IMPORTANT - CE & SAFETY REQUIREMENTS
This product is suitable for enviroment Installation category II pollution degree.
The product is classed as "PERMANENTLY CONNECTED EQUIPMENT".
Product must be DIN rail mounted, inside a suitable enclosure providing environmental protection to IP65 or greater.
Dc supply must be derived from a local supply and not a distribution system.
Max relay contact rating 250 V AC @ 1 A (30 V DC @ 1A). Any circuit connected to a contact must be fused with a 2A (T) fuse.
To maintain CE EMC requirements , input and supply wires must be less than 30 metres.
The product contains no serviceable parts , or internal adjustments. no attempt must be made to repair this product. Faulty units must be returned to supplier for repair.
This product must be installed by a qualified person. All electrical wiring must be carried out in accordance with the appropriate regulations for the place of installation.
Before attempting any electrical connection work, please ensure all supplies are switched off.
ABSOLUTE MAXIMUM CONDITIONS ( To exceed may cause damage to the unit):-
Supply Voltage
Current with over voltage
Input Voltage
Input Current
Ambient

PRODUCT SPECIFICATION

Please refer to the product data sheet for full specification, available to down load at www.status.co.uk.

RECEIVE AND UNPACKING

Please inspect the packaging and instrument thoroughly for any signs of transit damage. If the instrument has been damaged, please notify
your supplier immediately.

CONFIGURATION

IMPORTANT The SEM1630 can be configured whilst connected and powered, but a portable battery powered computer must be
used to avoid the effects of ground loops.
The following parameter can be configured by simply entering as prompted by
the software package.
· Input type (K,J,E,N,T,R,S,mV,PT100,mA)
· Setpoint Relay 1 & 2
· Hysterisis Relay 1 & 2
· Units (°C, °F, mV, mA)
· Relay 1 & 2 Type (High or Low)
Note: The power supply and USB port of this device share the same ground , care must be taken to ensure isolation between PC and ground.
This is best achieved by using a portable laptop or notebook PC.
D2443-01-05 CN5384 SEM1630 User Guide
Status Instruments Ltd, Status Business Park, Gannaway Lane, Tewkesbury, Gloucestershire, UK, GL20 8FD
Web Page: www.status.co.uk Tel : +44 (0) 1684 296818 Fax: +44 (0) 1684 293746 email : sales@status.co.uk
mA
± 30 V dc (Protected for over voltage and reverse connection)
± 200 mA
± 5 V between any terminals
± 100 mA between terminals 7 & 10
Temperature (-30 to 75) °C Humidity (10 to 95) % RH (Non condensing)
USB LINK SOFTWARE
Download @
www.status.co.uk
SEM1630
+
10
9
PT100
+ +
8
mV
7
- - -
Universal Input
COMPUTER
+
11
n/o
1
Relay 2
n/c
2
c
3
4
n/o
Relay 1
n/c
5
c
6
12
-
Dual trip Output
USB
SEM1630
USB CABLE
Factory default:
Input type
Units
Relay 1
Setpoint Relay 1
Hysterisis Relay 2
Relay 2
Setpoint Relay 2
Hysterisis Relay 2
+
V s
-
= P
= °C
= H
= 50
= 1
= H
= 50
= 1
