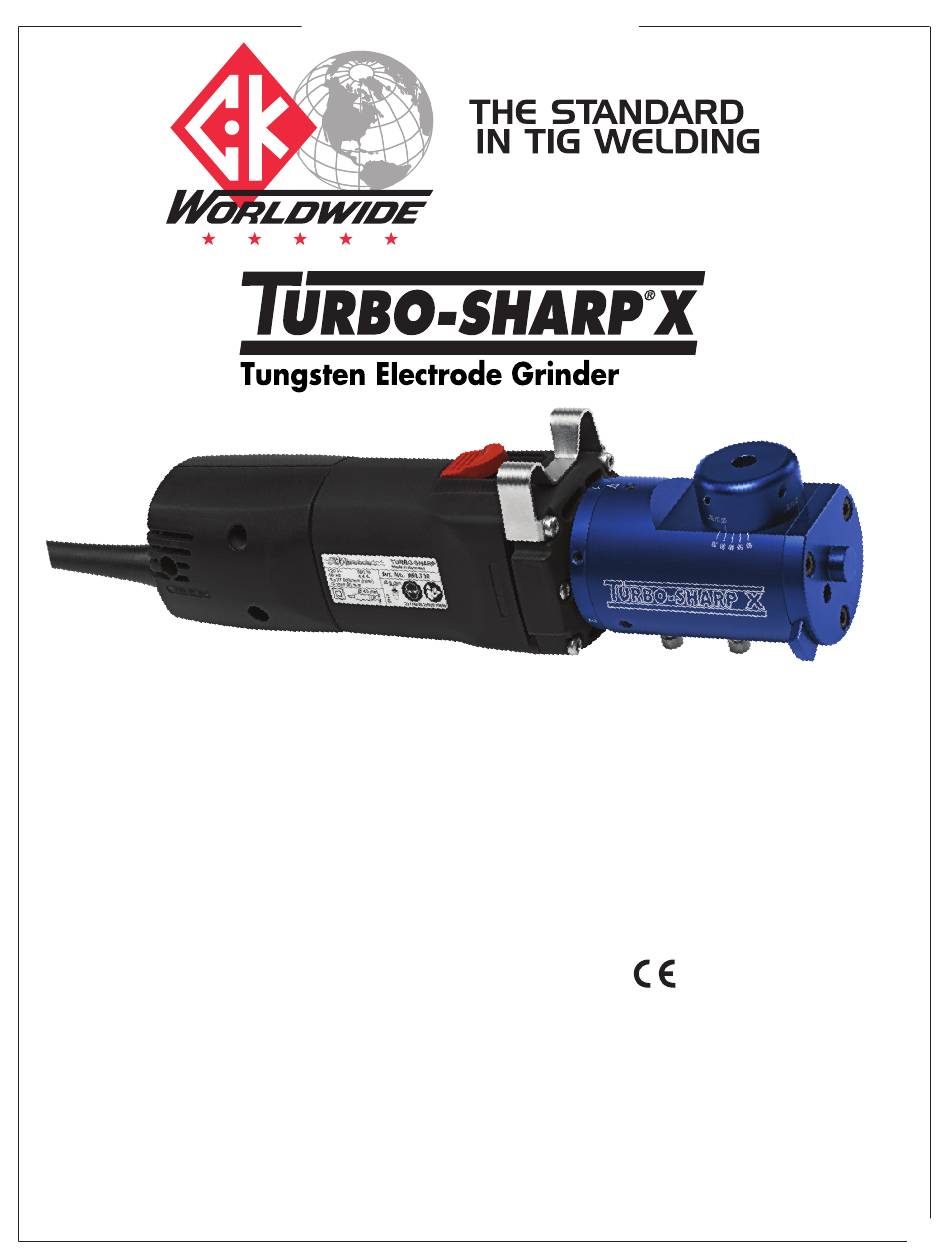

OPERATING INSTRUCTIONS
TECHNICAL DATA
Power Consumption
Voltage
Amps
No Load Speed
Grinder Weight
Shipping Weight
DECLARATION OF CONFORMITY
We declare that we are solely responsible for this product meeting the
following standards and directives: EN 50144:1998, EN 50144-1/A1:2002,
EN 50144-2-3:1998 EN 55014:1993, EN 61000-3-2:1995, 61000-3-3:1995 in
accordance with directive 89/392/EWG, 73/23/EWG and 89/336/EWG1998
P.O. Box 1636 Auburn, WA 98071 USA
TURBO-SHARP
X
®
34000
10.1
Form 6000
December, 2016
CK Worldwide, Inc.
Ph: (253) 854-5820
Fax: (253) 939-1746
710
W
120
V
6.4
A
RPM
4.1
lb (1860g)
lb (4581g)
1
Advertisement
Subscribe to Our Youtube Channel

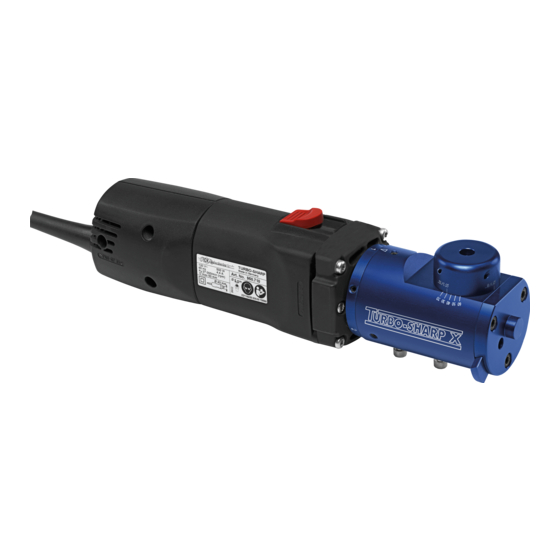

Summary of Contents for CK WORLDWIDE TURBO-SHARP X
-
Page 1: Operating Instructions
EN 50144:1998, EN 50144-1/A1:2002, EN 50144-2-3:1998 EN 55014:1993, EN 61000-3-2:1995, 61000-3-3:1995 in accordance with directive 89/392/EWG, 73/23/EWG and 89/336/EWG1998 Form 6000 December, 2016 CK Worldwide, Inc. P.O. Box 1636 Auburn, WA 98071 USA Ph: (253) 854-5820 Fax: (253) 939-1746... - Page 2 CK Worldwide, Inc. 5. Angle Iron : 1. Grinder Housing : • Opening Slide The angle iron can be mounted so that the machine - can be fastened in a vice Scale to adjust the grinding angle - can be fastened by means...
-
Page 3: Changing The Grinding Wheel
CK Worldwide, Inc. CHANGING THE GRINDING WHEEL Remove the plug from the electrical socket before doing any mainte- nance on this machine ! • Locate and remove the three small set screws in grinder housing Spindle • Remove grinder housing exposing wheel and shaft assembly Collet •... - Page 4 The warranty covers 24 months, dating form delivery of the product. Delivery must be substantiated by an invoice or other documentation. CK Worldwide, Inc. warrants the TURBO-SHARP X to be free of defects in ®...
