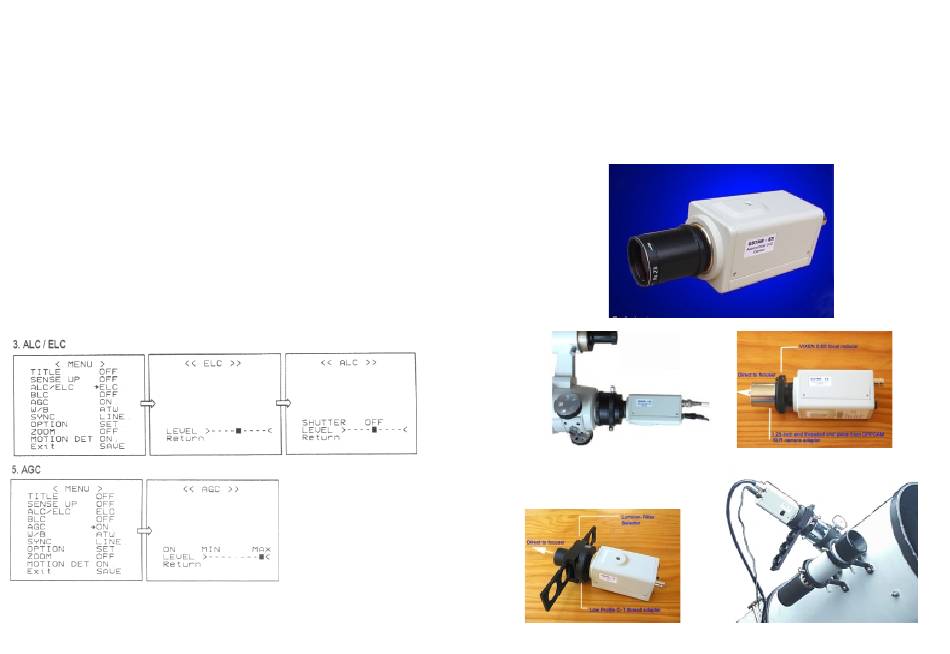

Astro Shop GSTAR-EX Quick Reference Manual

Image Sensor: 1/2 inch Sony ExView HAD CCD (795(H) x 596(V) pixels)
Quick Reference Guide
Sensor Pixels: 8.6um(H) x (8.3um(V)
Resolution: Hi-res 600TVL (better than SVHS)
Capture Size: 768 x 576 pixels (max frame capture size - depends on video
capture card used)
Standard: CCIR or EIA - Monochrome (Black and White)
GSTAR-EX
Sensitivity: 0.0001 LUX
Shutter Speeds: 1/50 or 1/60 sec to 1/12,000 second (16 steps) - Automatic
and Manual control
Quick Start User Guide
Integration Mode: Deep Sky Mode - X2 to X128 (max integration) (11 steps)
Signal Gain AGC: Automatic and Manual control
Signal Processing: A/D converter 10 bit AGC/AD converter (8 bit output)
Video Outputs: 1x Composite (BNC) and S-Video - 1Vp-p
Communication: RS232
Gamma Adjust: For deeper contrast of the planets and Moon
Digital Zoom: Multi-step from 1x to 2 x internal image rescaling (useful where
optical magnification is limited)
Picture Enhance: via On Screen Display menu
Mirror Function: A handy function for use with refractors
Operating Temp: -20° to +50°C
Interface: 5 buttons for OSD control on back panel plus RS-232 interface for
computer control
Power: 12VDC regulated 200mA (centre positive)
For more information visit – http://gstarex.MyAstroShop.com.au/
