PA Series Installation Guide
Wiring and Circuit Diagram
Model PA
Dimensional Information
Ranges to 50" (1250 mm)
"A"
Range
(in.)
(mm.)
2", 10"
0.66
3", 15", 30"
0.51
4", 20", 40"
0.35
5", 25", 50"
0.19
* 1.56 (39.6 mm) with "DS" option.
16.8
12.9
*
8.8
4.8
Excitation Voltage: 25 VDC or VAC Max.
Potentiometer Resistance: 1000 ohms ±10%
Note: Any input voltage up to the maximum specified above
may be used. However, for best performance, the input
voltage should be closely regulated to insure a stable and ac-
curate output voltage.
Ranges to 80" (2000 mm)
* 1.56 (39.6 mm) with "DS" option.
*
4175 SW Research Way, Corvallis, Oregon, 97333
•Tel: (541) 757-3158 •Fax (541) 757-0858
Advertisement
Summary of Contents for UniMeasure PA series

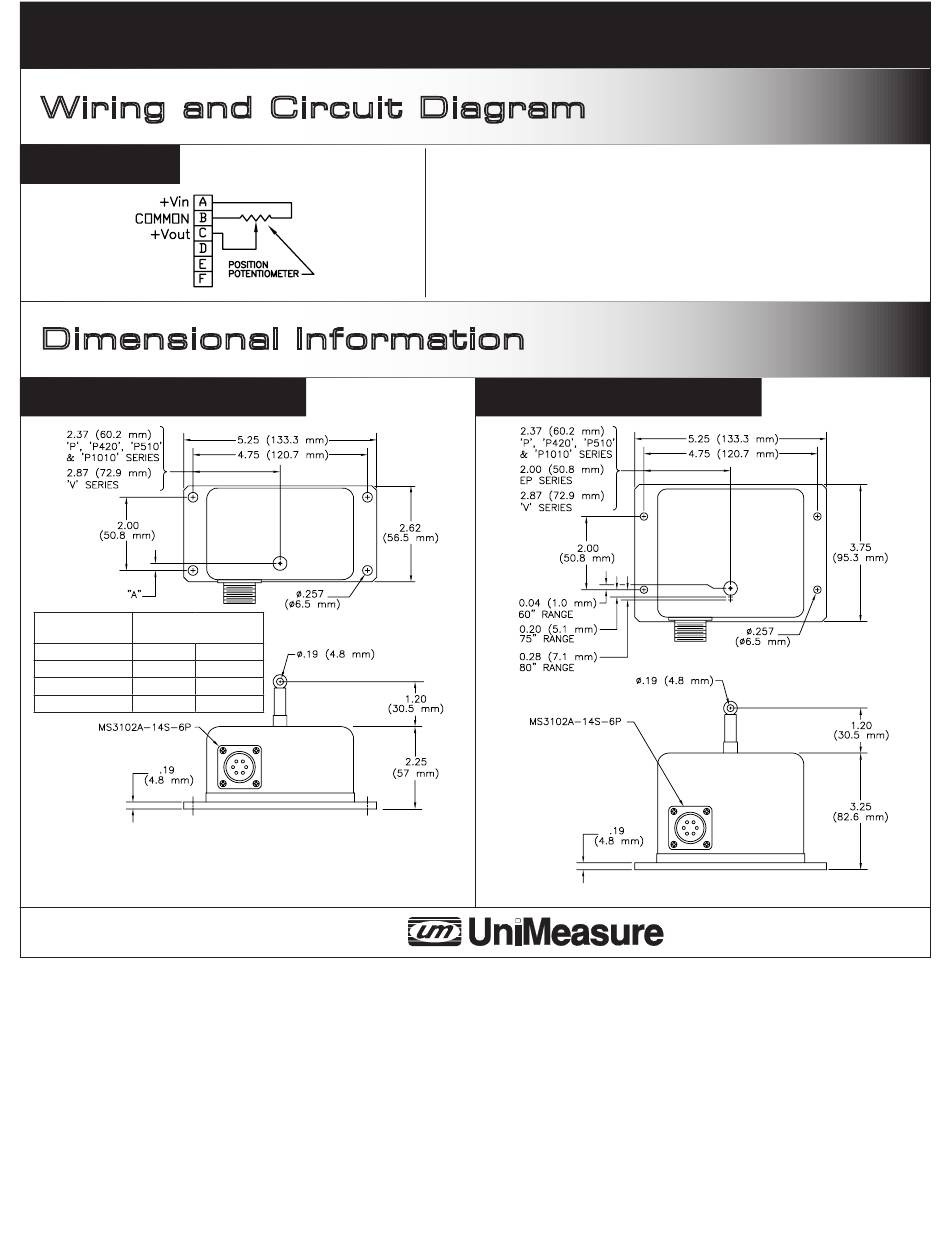

- Page 1 PA Series Installation Guide Wiring and Circuit Diagram Model PA Excitation Voltage: 25 VDC or VAC Max. Potentiometer Resistance: 1000 ohms ±10% Note: Any input voltage up to the maximum specified above may be used. However, for best performance, the input voltage should be closely regulated to insure a stable and ac- curate output voltage.
- Page 2 OPTION "CES" SIDE CABLE EXIT PA, PB, P420, P510, P1010, EP, V, VP SERIES PA, PB, P420, P510, P1010 EP, V SERIES RANGE DIMENSION "A" DIMENSION "B"* 2”, 10” 1.52" (38.6 mm) 1.28" (32.5 mm) 3”, 15”, 30” 1.68" (42.7 mm)** 1.28"...
