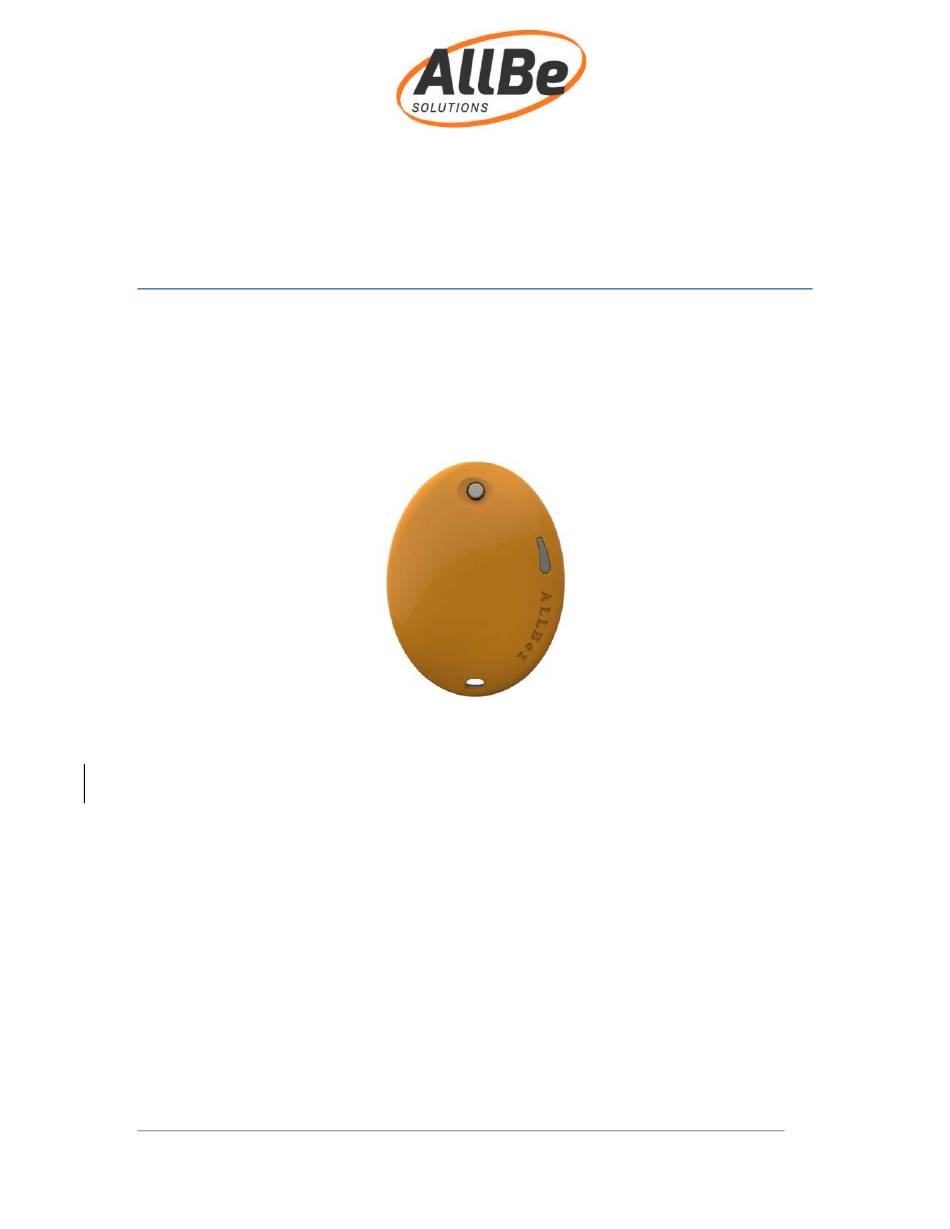

AllBe1 User manual
Table of Contents
1.
Introduction ............................................................................................................................. 3
2.
CAUTIONS ................................................................................................................................ 3
3.
Using the AllBe1 application - first steps ................................................................................ 4
5.
App General Settings: .............................................................................................................. 7
6.
Human detection feature ...................................................................................................... 11
AllBe1 PIR sensor special bracket for human detection................................................................ 12
7.
Events logging: ....................................................................................................................... 13
8.
Lock screen feature: .............................................................................................................. 14
9.
Step counting. ........................................................................................................................ 15
10.
Temperature and UV feature: ........................................................................................... 16
www.allbe1.com
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for AllBe Solutions AllBe1
Summary of Contents for AllBe Solutions AllBe1
-
Page 1: Table Of Contents
AllBe1 User manual Table of Contents Introduction ..........................3 CAUTIONS ..........................3 Using the AllBe1 application – first steps ................4 App General Settings: ......................7 Human detection feature ...................... 11 AllBe1 PIR sensor special bracket for human detection..............12 Events logging: ........................ - Page 2 Trouble shooting ....................... 22 15.1 ........................22 ONNECTION PROBLEMS 15.2 ..................... 22 HUTTING DOWN THE DEVICE 15.3 ’ ....................22 DOESN T TURNING ON What in the package ......................23 Electrical characteristics: ....................23 Certification: ........................24 www.allbe1.com Page 2 of 2...
-
Page 3: Introduction
• Do not mount it on human body during charging • Keep it away from water and other liquids. • Keep the passwords if you are using them, forgoing the AllBe1 lock password can't be restored!!! • Most use power supply with current limit of maximum 200ma www.allbe1.com... -
Page 4: Using The Allbe1 Application - First Steps
Before start the app please put the AllBe1 device in charging for 2 hours or more. Most use power supply with current limit of maximum 200ma Step 2 – Install the ALLbe1 app' – go to Google Play or to Apple appstore and search for Allbe1 app' Step 2 –... - Page 5 By pressing on the black button the app will search for AllBe1 devices and show them. In case that there are some AllBe1 devices you will see all of them. www.allbe1.com Page 5 of 2...
- Page 6 After click on the AllBe1 device that you want to connect it you will see the following screen: Features selecting icons grid screen www.allbe1.com Page 6 of 2...
-
Page 7: App General Settings
By press the tooth wheel on the top left of the Icons grid app screen you can set some generals options like choosing the alarm ringtone, choose to protect the AllBe1 with password, automatic, giving a name for a device, Choosing the temperature units, .Automatic connection option and some general information about the AllBe1 like MAC address General app settings screen. - Page 8 • By long press on feature icon you can enable or disable it, by short press you will enter to feature sub menu: For example - Human detection sub menu www.allbe1.com Page 8 of 2...
- Page 9 "Tilt" sensor sub menu www.allbe1.com Page 9 of 2...
- Page 10 Once you torn on a feature –feature background will lit on. Example: PIR (Human detection) feature on www.allbe1.com Page 10 of...
-
Page 11: Human Detection Feature
The PIR sensor is covered by Fresnel lens in order to collect the IR radiation and improve the detection performance. PIR sensor Fresnel lens detection pattern In order to achive the best performance with the PIR sensor, the AllBe1 should be mounted with the PIR sensor special barcket, see picture bellow: www.allbe1.com... -
Page 12: Allbe1 Pir Sensor Special Bracket For Human Detection
AllBe1 PIR sensor special bracket for human detection The Fresnel lens should be aimed to the desired detection area, The AllBe1 with the bracket should be placed on a shelf or similar object on 1.5-1.8 meters height. The target (human) should move 2 meters inside the detection pattern. -
Page 13: Events Logging
7. Events logging: If the PIR or TILT features are on, the Allbe1 will "stay awake" all the time even if the BT link will disconnect and log the events, once you will connect again to the AllBe1, the Events icon will be lite on and by press on it you will see the event and time stamp: www.allbe1.com... -
Page 14: Lock Screen Feature
By pressing the LOCK feature Icon the app will ask you to add password and confirm it again. This feature will lock the phone screen when the AllBe1 is not connected to the phone, Caution: Be careful if you get lost the AllBe1 and forgot the password you will not be able to open your phone!!! www.allbe1.com... -
Page 15: Step Counting
9. Step counting. The AllBe1 has a step counting feature based on 3D accelerometer. By enable this feature the AllBe1 will start counting your steps, you can reset the counting by pressing the reset icon on the step counting feature, Note that you can disconnect the AllBe1 from the phone and he will continue to count your steps and on midnight the counting will reset automatically. -
Page 16: Temperature And Uv Feature
You can set a range for the normal desired temperature; beyond this range you will get an alarm. Note – when the AllBe1 disconnected from the phone this features will not continue to work on background. www.allbe1.com... -
Page 17: Multi Button
Find my phone alert, send SMS message with user define text and google maps location, call to emergency number, audio capturing or take a picture. Note: the audio recording files will save on a folder called AllBe1 that you can find on your device Downloads folder. www.allbe1.com... - Page 18 If you click on a feature – a sub menu will open, for example: Choosing SMS feature +sending google maps location www.allbe1.com Page 18 of...
-
Page 19: Out Of Range Alarm
AllBe1 for longer distances. On the first app screen you will see near the AllBe1 list a tracker icon, by pushing this icon the app start to show you notification and sound relatively to the AllBe1 location. - Page 20 Devices list with tracker enabled device Tracker in action screen www.allbe1.com Page 20 of...
-
Page 21: Kid In The Car Reminder
Using this feature will help you to don’t forget your kid in the car, Once you get away few meters from the AllBe1 device you will get an alarm, Note – you will get this alarm too if the BT link will disconnect. -
Page 22: Trouble Shooting
Android device and turn it on again, 15.2 Shutting down the AllBe1 device Long continues press of 5~8 seconds on the AllBe1 device will shut it down automatically. 15.3 The AllBe1 doesn’t turning on Try to connect it to U USB charger port and try again after few minutes. -
Page 23: What In The Package
16. What in the package Belt clip Key chain AllBe1 Human detection stand 17. Electrical characteristics: Supply voltage: 3 ~4.v – Supplied by on board DC to DC converter. Supply by USB connector: 4.5~5.5v (According to USB standard). Sleep current: 30ua Maximum current (TX) 35ma BLE transmit power: 12.5dbm maximum. -
Page 24: Certification
A distance of at least 0.2 cm. between the equipment and all persons should be maintained during the operation of the equipment. www.allbe1.com Page 24 of... - Page 25 Label: www.allbe1.com Page 25 of...
