Climax SSL-1ZBS Manual

Status Display (SSL-1ZBS)
Introduction
SSL-1ZBS is a ZigBee Status Display designed to display the current status of the system.
The Status Display utilizes ZigBee technology for wireless signal transmission. ZigBee is a wireless communication
protocol that is reliable, has low power consumption and high transmission efficiency. Based on the IEEE802.15.4
standard, ZigBee allows a large amount of devices to be included in a network and coordinated for data exchange and
signal transmission.
The Status Display serves as an end device in the ZigBee network. It can be included in the ZigBee network but cannot
permit any other ZigBee device to join the network through the Status Display.

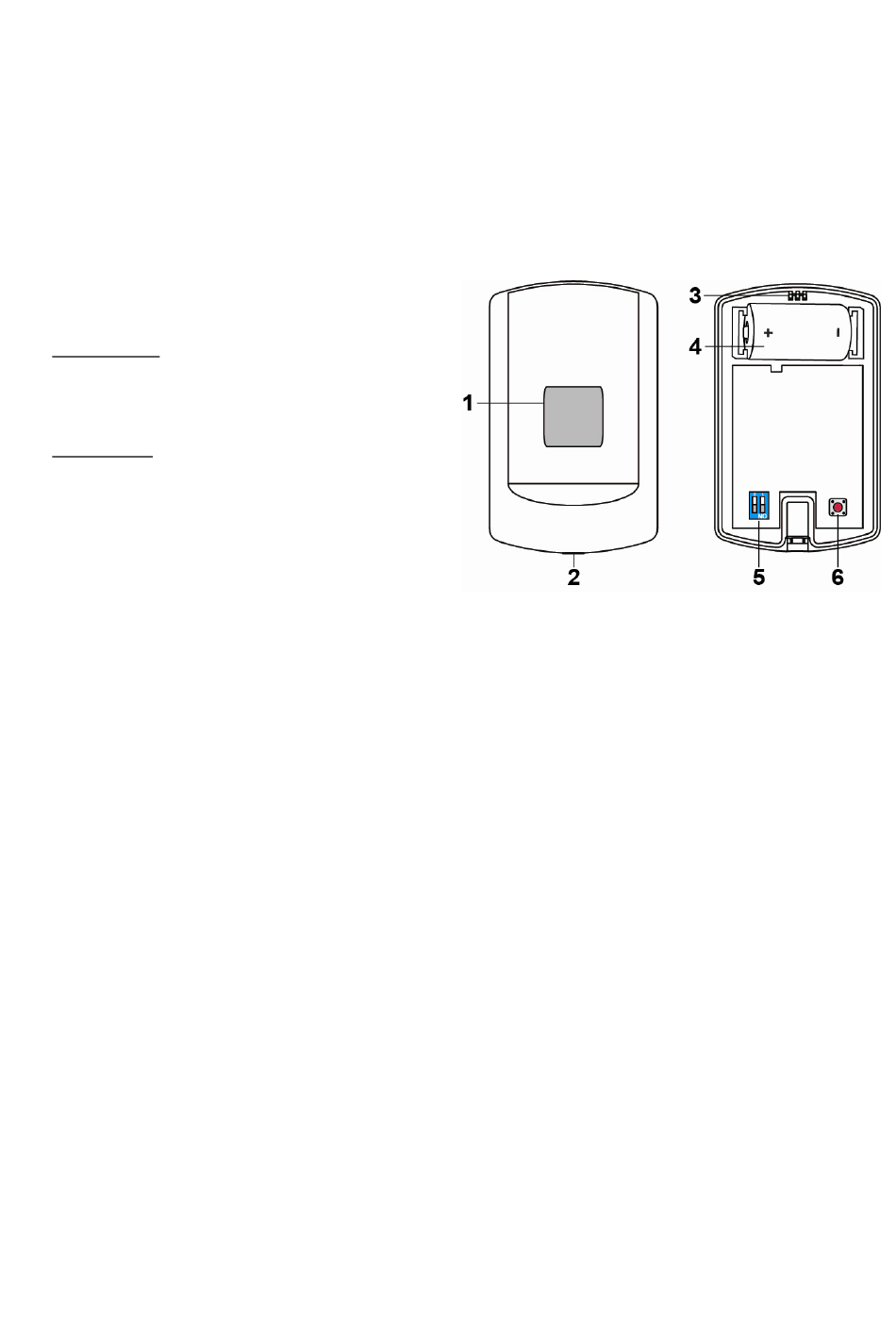

Device Introduction
LED Display
1.
System Status:
- Off: Disarmed Mode.
- Flashes Green once every 4 seconds: Armed or
Home Armed Mode.
- Flashes Red once every 3 seconds: Alarming.
ZigBee Status
- Flashes Red once: Pressing and holding the
Function Button for 10 seconds to Factory Reset.
- Flashes Red twice: The Status Display has
successfully joined a ZigBee network.
- Flashes Red once every 20 minutes: The Status
Display has lost connection to its current ZigBee
network.
2. Cover-Fixing Screw
3. Fixing Hook
4. Battery Compartment
5. DIP Switch (Currently Reserved)
6. Function Button
- Press once to send a supervisory signal to the coordinator.
- Press and hold the button for 10 seconds to reset the Status Display.
Features
 Battery and Low Battery Detection
The Status Display is powered by one CR123A 3V Lithium battery.
The Status Display features Low Battery Detection function. When the battery voltage is low, the Status Display will
transmit Low Battery signal to the ZigBee network coordinator.
 Supervisory Signal
The Status Display will transmit a supervision signal to report its condition every 30 minutes.
ZigBee Network Setup
 ZigBee Device Guideline
ZigBee is a wireless communication protocol that is reliable, has low power consumption and high transmission
efficiency. Based on IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network
and coordinated for data exchange and signal transmission.
Due to the fundamental structure of ZigBee network, ZigBee device will actively seek and join network after powering
on. Since performing a task in connecting network may consume some power, it is required to follow the instructions
to avoid draining battery of a ZigBee device
- Ensure your ZigBee network router or coordinator is powered on before inserting battery into ZigBee device.
- Ensure the ZigBee network router or coordinator is powered on and within range while a ZigBee device is in use.
- Do not remove a ZigBee device from the ZigBee network router or coordinator without removing the battery from a
ZigBee device.
