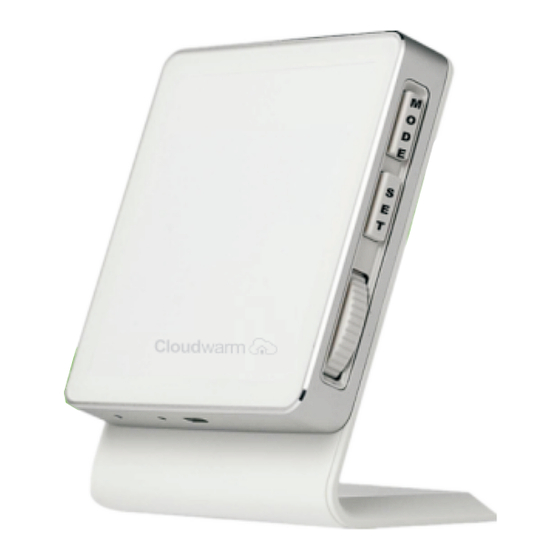

Summary of Contents for Allied Control System Cloudwarm

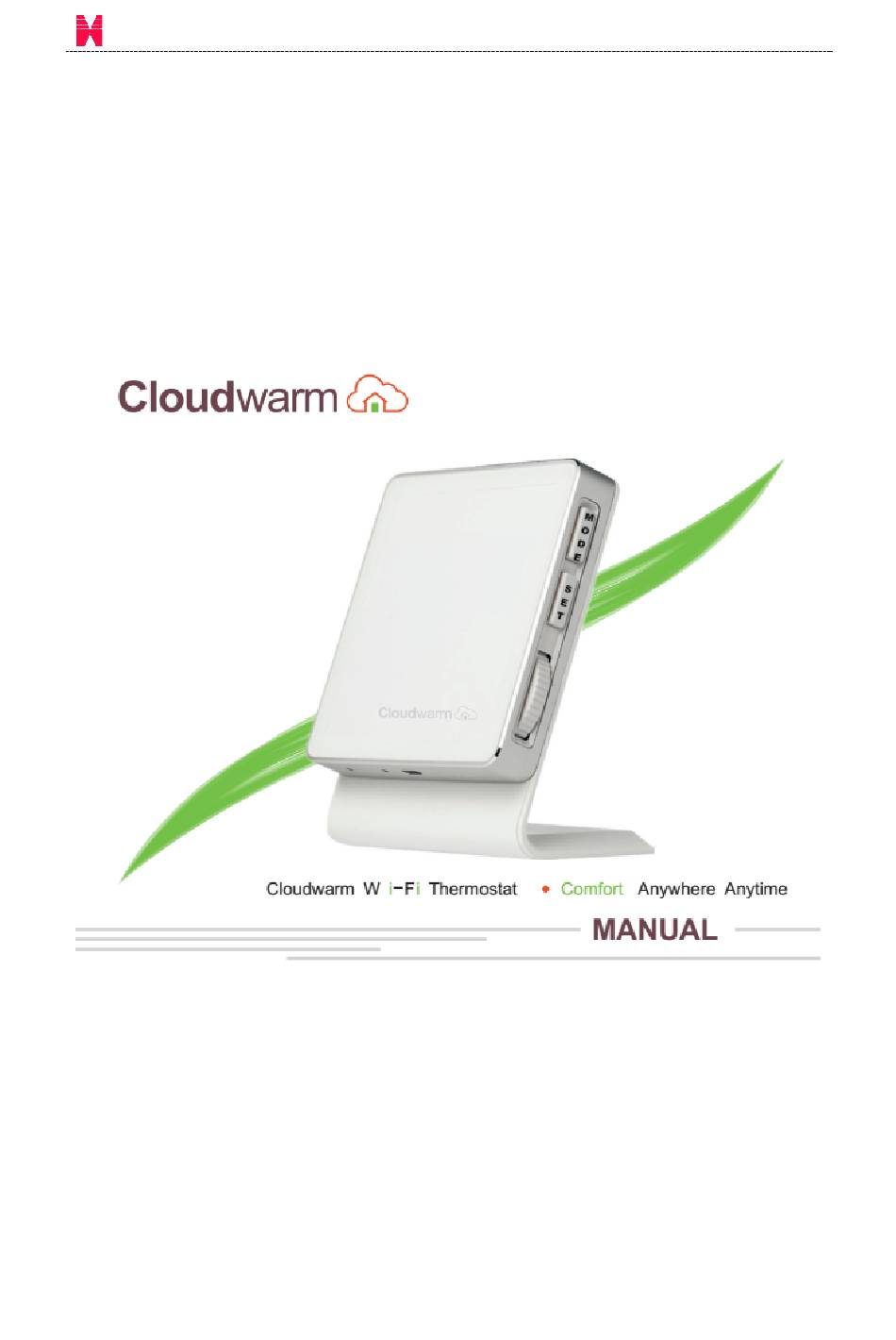

- Page 1 Shenzhen Allied Control System Co,. Ltd. Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016...
-
Page 2: Table Of Contents
4. App Setup And Wi-Fi Configuration......P3 5. Room Thermostat (Transmitter).........P10 6. Receiver................P12 7. Specification..............P13 *Thank you for choosing Cloudwarm. Please read this manual before installing! It is recommended that this device is installed by a qualified electrician. Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016... -
Page 3: Packing List
4. App Setup And Wi-Fi Configuration Step 1 Download App onto your mobile device For Android operating system, go to Google Play and search Cloudwarm;: For iOS operating system, go to App Store and search Cloudwarm. Step 2 Create an account Please make sure your mobile device is connected to Wi-Fi successfully. - Page 4 For this operation the phone must be connected to the same WIFI network with that connect the thermostat. Only after the initial connection is established, you will be able to use 3 g/4 g mobile networks to control Cloudwarm application on your mobile phone. There are two steps to configure your Wi-Fi connection: in top right corner of the Sign In interface and follow the instructions on APP to connect Cloudwarm to Wi-Fi;...
- Page 5 ** To get local weather information shown on App ( top left corner), please go to top left menu and go to Account. Input location information (where Cloudwarm is being installed) at Weather Location line. ** Tap “Time zone” to set Summer/Winter time.
- Page 6 If changes to preset program needed, switch to Manual Mode, and set per needs. To go back to the original Program Mode, just switch it back. Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016...
- Page 7 Shenzhen Allied Control System Co,. Ltd. OFF Mode: When set to OFF Mode, Cloudwarm only heats when the room temperature drops below 5 to prevent frost damage. ℃ Below underlined content is for Open Therm protocol supported boiler ONLY. (Refer to your boiler manual to know if it is Open Therm protocol supported.) Enter “...
- Page 8 ② Water pressure in boiler ③ Heating target temperature ④ DHW target temperature ⑤ Boiler flame state ⑥ Boiler error code（defined by boiler manufacturer） ⑦ Heating state Summer mode: display DHW temperature；heating function is off. Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016...
- Page 9 Shenzhen Allied Control System Co,. Ltd. Off Mode：Anti-frost function. Go to top right corner, tap drop down menu, tap “ Technical” to see boiler working data and error code (defined by boiler manufacturer). Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016...
-
Page 10: Room Thermostat (Transmitter)
0.1 increment). For example, when target ℃ temp set at 25 , hysteresis ON temp at 0.5 , ℃ ℃ room temp at 24.5 , ℃ transmitter sends heating request signal to boiler. Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016... - Page 11 50 minutes after the electrical supply! The temperature is correct and the device can be calibrated only after the symbol "C grade" goes from small c to big C Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016...
- Page 12 ④ Program mode: When set to Program, Cloudwarm runs the program preset via App on mobile devices or web use. ⑤ Off mode: When set to OFF, Cloudwarm only heats when the room temperature Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016...
-
Page 13: Receiver
√ × × Flicking Regular Irregular × √ × Flicking Flicking Regular √ √ × Flicking Irregular Regular × √ √ Flicking Flicking Irregular × × × Flicking Irregular × √ √ Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016... - Page 14 Basic specs Receiver dimensions 86 X 86 X 20mm Housing material ABS+PC+Aluminum Temperature sensor Built in Boiler control protocol Open Therm v2.1 Wi-Fi standard 802.11b/g/n Frequency 2.412GHz – 2.462GHz Wireless frequency band 915MHZ(FSK) Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016...
-
Page 15: Specification
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exe mpts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l' Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016... - Page 16 Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps. Cloudwarm Manual (HRT-278 Wireless) Rev 1.1 Aug 2016...
