Atlas LED WPS Series Manual

Model:
IMPORTANT: READ BEFORE REMOVING FIXTURE FROM CARTON. RETAIN FOR FUTURE REFERENCE
SAFETY: This fixture must be wired in accordance with the NATIONAL
ELECTRICAL CODE and applicable local codes and ordinances. A person
familiar with the construction and operation of the product and the hazards
involved must install this product. A qualified licensed electrician should
complete all work. Proper grounding is required for safety.
WARNING: Make certain power is OFF before installing or maintaining fixture.
RISK OF INJURY: Fixture may become damaged and/or unstable if not installed
properly.
LABOR SAVING: QUICK & SECURE MOUNTING
NOTE: Turn off electrical supply at the breaker. Follow all local electrical codes for wiring and grounding requirements

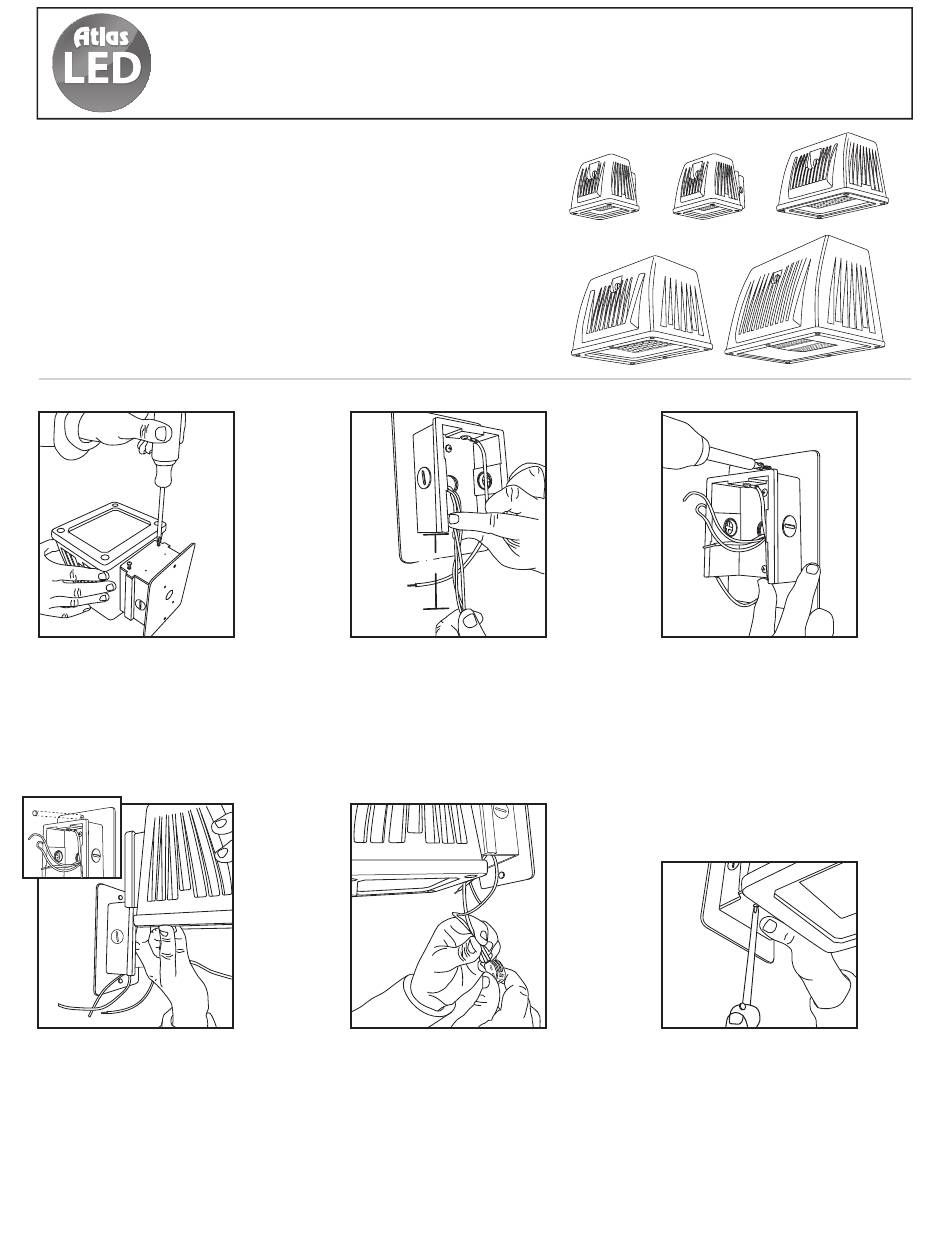

STEP 1:
Remove bottom plate of Quick Mount box by
removing screws. Remove Quick Mount box
and Secure Mount Plate from housing by
sliding box downward. NOTE: Box should not
be removed from secure mounting plate.
NOTE: Apply rubber caps
STEP 4:
Place caps over secure mounting plate
screws and secure by applying RTV or other
weatherproof adhesive. Bring wires below
and slide housing onto quick mount plate and
box. Pull both supply wires and fixture wires
from inside Quick Mount box.
WPS | WPM | WPL | WPXL Series
2"-3" 2"-3"
STEP 2:
Feed wire through center hole of Secure
Mount Plate and mounting box. In doing so
ensure to pull enough wire through to have
2-3 inches of wire below mounting box (as
connections will be made there after fixture
has been attached).
STEP 5:
Check to make sure that the supply voltage
does not exceed 277V. Connect the white
fixture wire to the white supply wire.
Connect the black fixture wire to the black
supply wire. Connect the green fixture wires
to the ground wire. Make sure all
connections are secure using approved
connecting devices. After wiring place all
connected wires back in Quick Mount box.
STEP 3:
Mark and attach Secure Mount Plate
to wall using appropriate mounting
hardware (not provided). Apply silicone
compound along edge of mounting
plate where it meets surface and to
opening where supply wires enter the
luminaire mounting box to create a
water tight seal.
STEP 6:
Replace bottom plate for Quick Mount box.
240-145E
