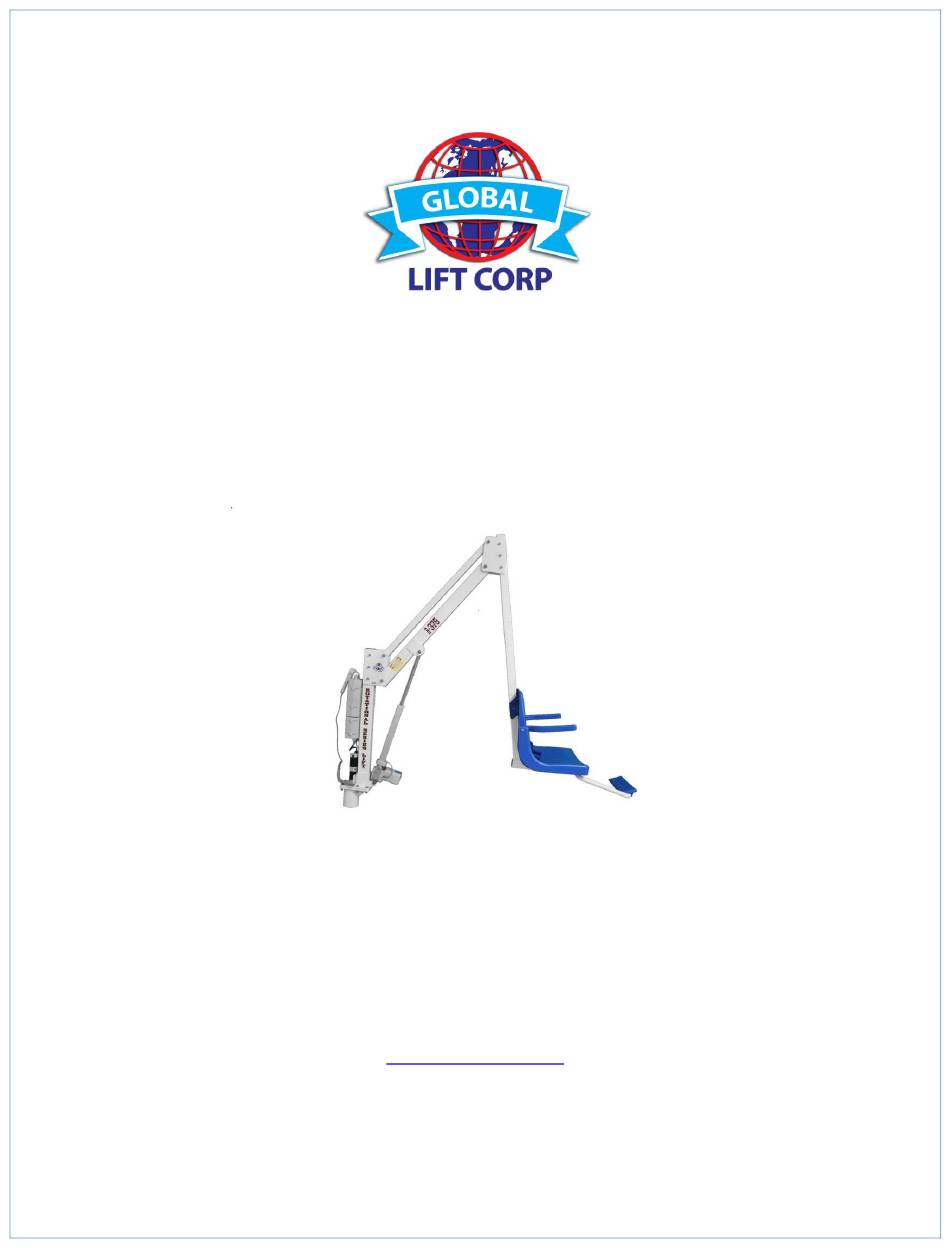

- Page 1 GLOBAL LIFT CORP Owner’s Manual Rotational Series R-375 684 N Port Crescent Rd Suite C Bad Axe, MI 48413 Toll Free: 866-712-0606 Fax: 989-269-5902 www.globalliftcorp.com Dec 2012 Page 1...
- Page 2 ROTATIONAL SERIES POOL LIFTS R-375 TABLE OF CONTENTS INTRODUCTION PAGE – 3 ADA GUIDELINES FOR PLACEMENT PAGE – 4 24 VOLT BATTERY SYSTEM/WITH CONTROLS PAGE – 5 ROTATIONAL SERIES OPERATING INSTRUCTIONS PAGE – 6 UNIT MAINTENANCE AND CARE PAGE – 7 TROUBLESHOOTING PAGE –...
- Page 3 Your Number One Choice for Commercial Pool Access Equipment Global Lift Corp. is located in Mid-Michigan, Global Lift Corp. prides itself in manufacturing top of line quality aquatic access equipment. Global Lift Corp's key staff has a century of combined industry experience and we take pride in each and every product that we build.
- Page 4 ADA GUIDELINES FOR POOL LIFT PLACEMENT 1. Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). 2. Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 5 24 VOLT BATTERY SYSTEMS WITH CONTROLS All of Global Lift Corp’s Rotational Series Lifts are equipped with a sealed 24 volt battery that is rechargeable. Along with a charging unit, hand held controller and control compartment. The 24 volt battery mounts into the control compartment and the battery simply snaps in.
- Page 6 ROTATIONAL SERIES POOL LIFT OPERATING INSTRUCTIONS Prior to using the Rotational Series Pool Lift, perform a test run of the lift empty. Once that is completed and the lift is back to original position, make sure that the arm lifts...
- Page 7 Maintenance Regular servicing will help prolong the life of your lift. Routine maintenance and cleaning is very important. The following is a routine maintenance you should follow. Daily Check and charge battery Test for normal operations Inspect your lift Clean and dry the lift and seat with clean water Cover lift after use Weekly o Overview Daily Checklist...
-
Page 8: Troubleshooting Guide
TROUBLESHOOTING GUIDE Before any troubleshooting commences make sure the battery has a full charge! (1) Does the lift raise or lower (a) Check the battery connection and reconnect (b) Check hand controls, make sure they are connected properly (c) Check for any lose wires on the control compartment (d) Check the connection cable for damage (e) Check to see that the lock on top of the control unit is turned clockwise and in the unlocked position... - Page 9 The Superior series lift has a 5 year structural limited warranty. Global Lift Corp warrants to the original retail end user only products manufactured by Global Lift Corp, when properly installed in accordance to the...
- Page 10 Global Lift Corp’s decision regarding the claim. If the request made by Global Lift Corp for the product to be returned to its factory or distributor of choice for inspection and/or repair, purchaser will be liable for “Freight Prepaid”. Global Lift Corp at...
- Page 11 Warranty Procedure Warranty Claims shall be submitted to Global Lift Corporation by the distributor which originated the sale with Global Lift Corporation or directly to Global Lift Corporation. All RGA (Return Goods Authorization) documents shall be requested by and issued only to the distributor which originated the sale or directly to Global Lift Corporation.
- Page 12 I have read and I accept the warranty terms. Signature: ______________________________________ Date: ______________ This card must be completed and returned to Global Lift Corp within 30 days of purchase date to assure coverage. Please mail to: Global Lift Corp, 684 N Port Crescent Suite C, Bad Axe, MI 48413...
- Page 13 ROTATIONAL SERIES R-375 LIFT NEW CONSTRUCTION & SAW CUT SLEEVE ANCHORING SYSTEM INSTALLATION MANUAL Prior to installing, please make sure you have filled out a Deck Configuration Form to make sure you have the correct lift that fits Your application.
- Page 14 ROTATIONAL SERIES R-375 SLEEVE ANCHORING SYSTEM INSTALLATION PARTS LIST 1 - Anchor Sleeve w/ Base 1 - Plastic Cap 1 – Binding Screw New Construction/Saw Cut Sleeve November 2013 Anchor R-375...
- Page 15 ANCHORING SLEEVE, BASE PLATE & BINDING SCREW R-375 New Construction/Saw Cut Sleeve November 2013 Anchor R-375...
- Page 16 ADA GUIDELINES FOR POOL LIFT PLACEMENT •Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 17 ROTATIONAL SERIES – SLEEVE ANCHORING SYSTEM Pool Wall Water CAUTION: Minimum anchor distance from a vertical obstacle is 13”, if Closer The lift will hit while in operation Actual application 3’ Overview Anchor Sleeve Section Detail 3’ 3’ Anchor Sleeve Cold Pin 6”...
- Page 18 Step 1: Determine the location for installation (Make sure all ADA requirements are met) ***NOTE: The installation of Global Lift Corp’s anchor system’s are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***...
- Page 19 (refer to overview) A key element is to make sure that the Anchor Sleeve is level and square with the pool so that your Rotational Series Lift sits properly on the deck. NOTE: If you place the anchor sleeve 12” from the pools edge, the lift will reach 36”...
- Page 20 ROTATIONAL SERIES R-375 LIFT RETRO-FIT SLEEVE ANCHORING METHOD INSTALLATION MANUAL Prior to installing, please make sure you have filled out a Deck Configuration Form to make sure you have the correct lift that fits Your application. November 2013 RETRO-FIT Sleeve Anchor R-375...
- Page 21 RETRO-FIT SLEEVE ANCHORING METHOD R-375 ROTATIONAL SERIES LIFT PACKING LIST • 1 – Anchor Sleeve w/ Base • 1 – Plastic Cap • 1 – Binding Screw November 2013 RETRO-FIT Sleeve Anchor R-375...
- Page 22 ADA GUIDELINES FOR POOL LIFT PLACEMENT •Pool Lift Location. Pool lifts shall be located where the water level does not exceed 48 inches (1220 mm). Seat Location. In the raised position, the centerline of the seat shall be located over the deck and 16 inches (405 mm) minimum from the edge of the pool.
- Page 23 12” and the maximum is 36” from the front of the anchor sleeve. See picture B ***NOTE: The installation of Global Lift Corp’s anchor system’s are a guideline of minimum requirements. In some states or municipalities they may require additional steps due to their local codes or ordinances.***...
- Page 24 R-375 Front edge of anchor sleeve or an Obstacle Measure Distance to make Sure It’s 12” minimum and 36” maximum from the Water’s edge or if an obstacle is present before the water Picture A Picture B You will need a 5” diameter core drilling bit. Step 2: •...
- Page 25 • Let the concrete set for 24hrs, sand stone to smooth the finish. Make sure the anchor sleeve is flush with the concrete • You are now ready to install your Rotational Series Lift. November 2013 RETRO-FIT Sleeve Anchor R-375...
- Page 26 Fixed Anchor Rotational Series R-375 Locate the drop in anchor (shown above) Place Lift into Anchor and position so anchoring hole is in the desired position. Now mark the concrete so you will know where to drill (the hole should be centered in the slot).
- Page 27 3. Use only solid carbide-tipped bits meeting the ANSI B94-12 tip diameter (Use 5/8 dia drill bit). 4. Drill the hole perpendicular to the work surface. To assure full holding power do not ream the hole or allow the drill to wobble.
- Page 28 ROUND SLEEVE ANCHOR – PAVER INSTALLATION OPTION 1 4’ x 4’ Square ANCHOR 6” of Concrete PAVERS PAVERS Please follow Anchor Instructions for Installation Nov 2013...
- Page 29 ROUND SLEEVE ANCHOR – PAVER INSTALLATION OPTION 2 4’ x 4’ Square ANCHOR 6” of Concrete PAVERS PAVERS Option #2 same as Option 1, just recess the concrete down and reinstall the pavers over the concrete except directly under the pool lift, That section needs to remain concrete! Please follow Anchor Instructions for Installation Nov 2013...
- Page 30 OVERVIEW ROUND SLEEVE ANCHOR – Paver Option OPTION 1 ROUND ANCHOR 4’ 4’ Nov 2013...
- Page 31 OVERVIEW ROUND SLEEVE ANCHOR – Paver Option OPTION 2 ROUND ANCHOR 4’ 4’ Option #2 same as Option 1, just recess the concrete down and reinstall the pavers over the concrete except directly under the lift, That section needs to be concrete Nov 2013...
- Page 32 GLOBAL LIFT CORP INSTALLATION MANUAL (Out of Box) R-Series Lifts Series Lifts...
- Page 33 GLOBAL LIFT CORP INSTALLATION MANUAL (Out of Box) PARTS LIST 1 Part A – Main Unit with Motor 1 Part B – Horizontal Dual Bar Beam 1 Part C – Seat Bar 1 Part D - Seat ...
- Page 34 INSTALLATION STEPS Picture 1 Step 1: Unpack your items (picture 1). Loose Items will consist of: • Part A Main Beam with Motor • Part B Horizontal Dual Bar Assembly • Part C Seat Bar • Part D Seat • Part E Foot Rest and Tube •...
- Page 35 INSTALLATION STEPS Picture 3 Picture 2 Step 2: Insert Main Beam with Motor Into the Anchor Sleeve Picture 2 (Sleeve Anchor Pre-Installed Prior to Installation) Step 3: Attach Part B to Part A by removing bolts from Part B (which are already inserted). Attach Part B to Part A and tighten bolts (DO NOT OVERTIGHTEN) All bolts need to be tightened to approximately 20 lbs.
- Page 36 INSTALLATION STEPS Picture 4 Picture 5 Picture 6 Step 4: Attach actuator to Part B beam into the actuator holder location. Picture 4. Step 5: Attach Part B beam to the Part C seat bar tube using the bolts that are in the tube Picture 5 &...
- Page 37 GLOBAL LIFT CORP CUSTOM SEAT INSTALLATION MANUAL R-Series Lifts Series Lifts...
- Page 38 GLOBAL LIFT CORP CUSTOM SEAT INSTALLATION MANUAL PARTS LIST 1 - Seat 1 - Foot Rest 2 – Arm Rests 1 - Seat Belt & Buckle 3 – 5/16 x 3” Attaching Pin with lock nut ...
- Page 39 INSTALLATION STEPS Picture A Step 1: Unpack your custom seat (picture A). Loose Items will consist of: • Foot Rest and Tube • 3 - 5/16” x 3” Bolt with Lock nut...
- Page 40 INSTALLATION STEPS Picture A Picture B Step 2: Align your custom seat (Picture A), With 3 pre-drilled holes as shown. Step 3: Once you have the seat in place, take one 5/6” x 3” bolt and slide it through the pre-drilled Holes (Picture B).
- Page 41 INSTALLATION STEPS Step 4: Locate the other 2- 5/16 x 3” securing bolts (supplied), insert the bolt through the pre-drilled Seat and tube holes (As shown Above). Once you have the bolts inserted, secure the installation With the lock nuts that are provided and tighten down.
- Page 42 Slot. In picture B, locate the 5/16” x 2” bolt and insert into the pre-drilled holes to secure the foot rest to the lift. Place the lock nut on the bolt and tighten down. Once that is complete, you are ready to enjoy your Global Lift Corp pool lift.
