Summary of Contents for Spot-on D5H
- Page 1 D 5 H H Y B R I D D E T E C T O R & C L A M P I N S T R U C T I O N M A N U A L...
- Page 2 SAFETY Read the following safety instructions before attempting to operate this product. SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. WARNING: Read and understand all instructions. ▪ Use the detector only with the specifically designated battery. ▪ Store the detector out of reach of children and other untrained persons.
-
Page 3: Item Checklist
ITEM CHECKLIST Please ensure the following items are included with your detector. If anything is missing please contact your retailer. Spot-on D5H detector Staff clamp Alkaline battery... -
Page 4: Product Overview

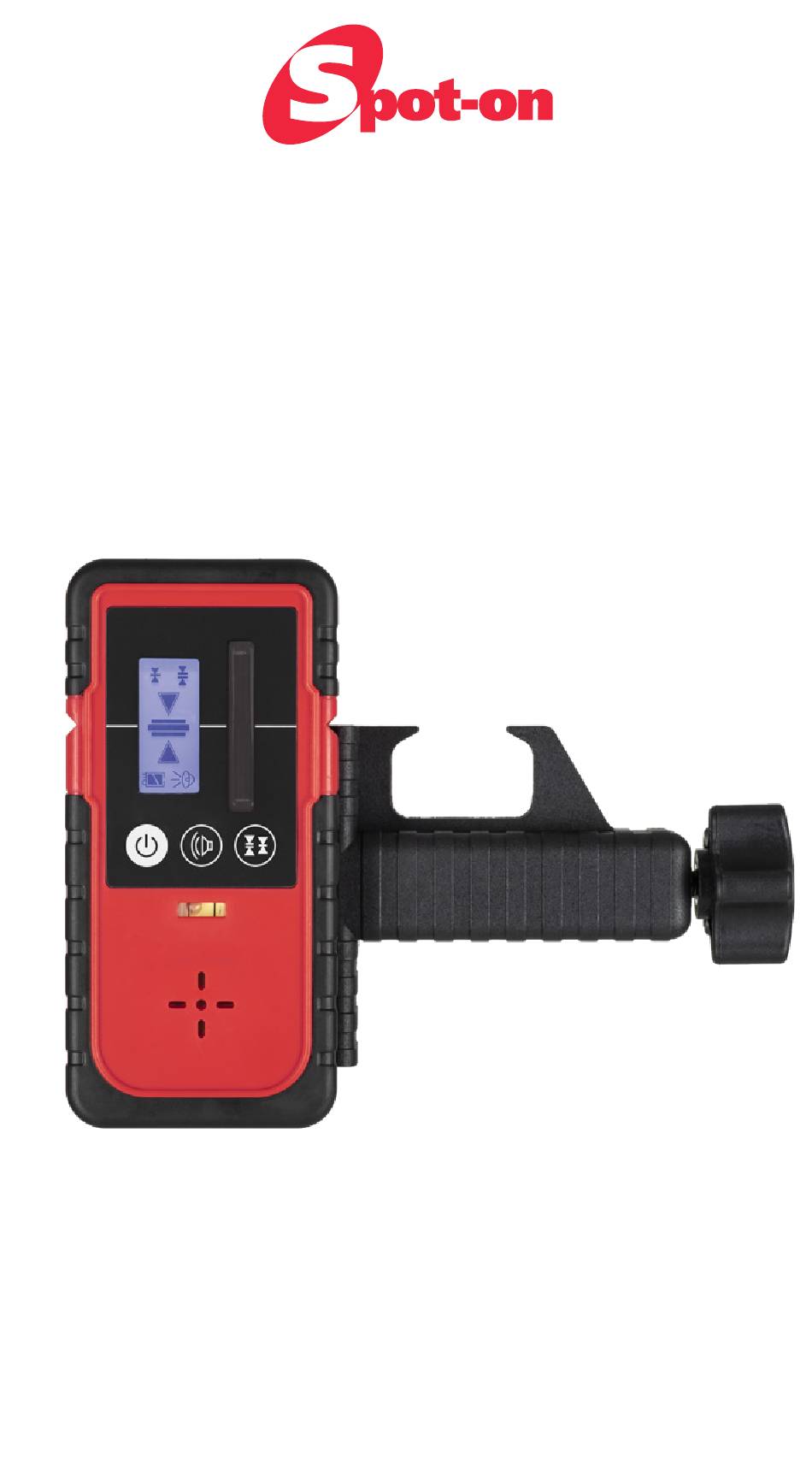

PRODUCT OVERVIEW DETECTOR FRONT LED sensor LED display screen Detection mode Power on / off Speaker on / off Bubble vial Speaker... - Page 5 DETECTOR BACK LCD display screen Staff clamp thread Battery compartment...
- Page 6 DISPLAY SCREEN FRONT & BACK Detection mode Arrow indicator Centre alignment Arrow indicator Battery indicator Speaker indicator...
- Page 7 USING YOUR DETECTOR POWER SUPPLY ▪ The instrument is supplied with one 9v alkaline battery as its standard power source. Removing & inserting the alkaline battery ▪ Remove the battery cover door and the battery. ▪ Insert the battery according to polarity and replace the battery door. SET UP Mounting the staff clamp ▪...
- Page 8 This instrument is also compatible with most 3rd party rotary laser levels with a red or green laser beam.* *Please note that due to different technologies and frequencies Spot-on cannot guarantee that this detector is compatible with all makes and models.
- Page 9 Detector position for horizontal beams Detector position for vertical beams...
-
Page 10: Warranty
WARRANTY The Spot-on D5H comes with a 1 year manufacturers warranty. AUSTRALIA "Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. -
Page 11: Specifications
SPECIFICATIONS Specifications Spot-on D5H Product code 50140 Warranty 1 Year Speaker decibel (maximum) Battery type 1x 9v Weight (kg) 0.259 Dimensions (mm) 155 x 75 x 30... - Page 12 ww w.spo ton.c om.au...
