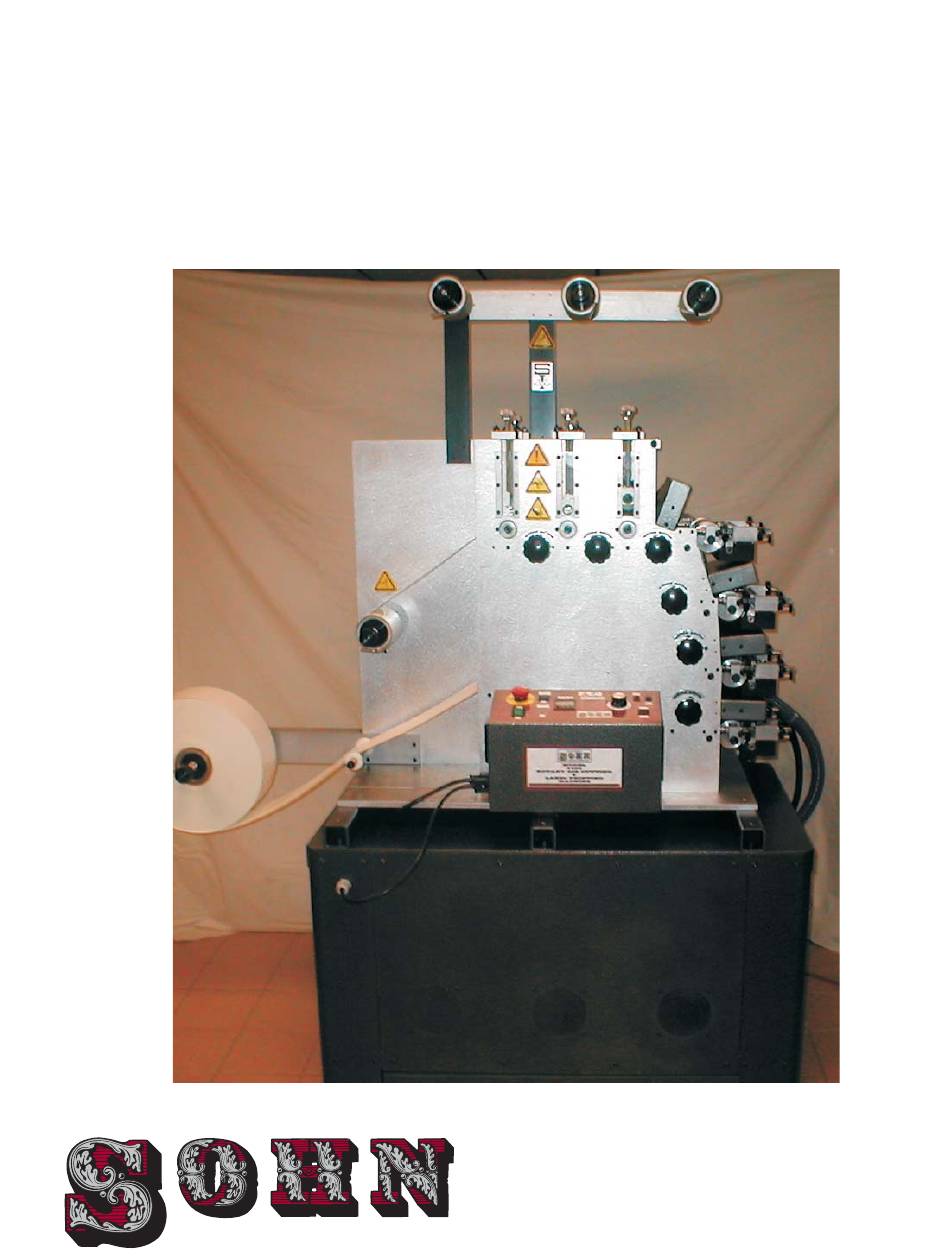

SOHN MODEL 4400 INSTALLATION MANUAL P.O. BOX 427, ELKHART LAKE, WI 53020 USA PH: (920) 876-3361 • FAX: (920) 876-2952 E-MAIL: sohn@ sohnmanufacturing.com MANUFACTURING, INC. WEB: www.sohnmanufacturing.com...
Page 3
MOUNTING BOLT Fig. 6 Fig. 5 The Sohn Model 4400 should be lifted from the back only (see Figure 1). NOTE: DO NOT USE PANEL HANDLE AS A LIFTING POINT (see Figure 1A). To stabilize the machine and avoid potential damage to the control panel, forks should be spread 29" (73.6 cm) apart from outside edge of fork to outside edge of fork.
Page 4
Fig. 10 The 4400 can now be safely moved for final assembly or completed and moved (as shown in figure 7). The product unwind arm is detached for shipping and must be re-attached (see figure 8). Position the arm so the holes in the arm are in alignment with the holes in the back plate (see figure 9).
Page 5
DRYER HEAD BLOWER HOSE VACUUM HOSE Fig. 11 Fig. 12 Fig. 13 Fig. 14 Fig. 15 Attach blower hose and vacuum hose to dryer head (see figure 11). Attach blower hose and vacuum hose to blower (see figure 12). Connect power cord from blower assembly to control panel (see figure 13). Connect power cord for the machine to control panel (see figure 14).
Page 6
SOHN MODEL 4400 P.O. BOX 427, ELKHART LAKE, WI 53020 USA PH: (920) 876-3361 • FAX: (920) 876-2952 E-MAIL: sohn@ sohnmanufacturing.com MANUFACTURING, INC. WEB: www.sohnmanufacturing.com...
