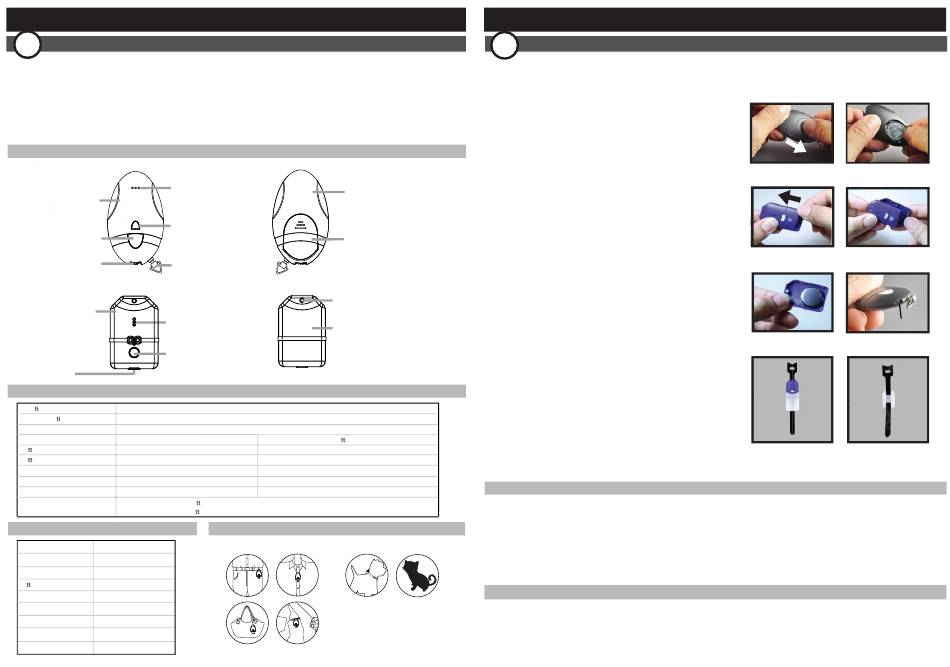

arditech 208PA Plus User Manual

Mini Pet Tracker 208PA Plus User Manual
1
INTRODUCTION
The new Pet Tracker 208PA Plus is our third generation small RF based tracker. It offers a significantly greater
tracking range of up to 600 meters(1900ft). The silicone case allows you to attach the tag unit onto most small
collars. If in the unfortunate case you lose sight of your pet, the remote base unit can track your pet down by
signal strength. By simply walking in different directions, the remote will give alarm signals to let you know that
you are heading in the right direction and the stronger the signal rhythm the closer you are to your missing pet.
Note: In dense residential areas, certain building materials such as concrete or steel may obstruct signal clarity,
accuracy, and tracking range.
Product Description
Remote Base Unit
Front
Buzzer
Top cover
LED
FindMe button
Power switch
Ring Attachment
Tag Unit
Front
Top cover
Buzzer
Power Switch
LED
(Hold button over
3 seconds to turn
ON/OFF)
Specifications
Func on
Communica on Standard Digital 2.4 GHz RF (Frequency range: 2.40 - 2.48MHz)
Search Range
0~600m (*Distance will vary depending on terrain and other factors.)
Remote Base unit/Tag unit Tracking remote base unit
Ba ery Type CR2032x1
Ba ery Life Time with Standby n/a
Beep Sound (at 10cm/3.9inch) 90db ± 3 db
Weight 9.5g (0.34oz.)
Dimension (L/W/H) 61x36x12 mm
With LIR2032 Ba ery: Temperature -15℃～40℃、humidity 20％～80％
Working Environment
With CR2032 Ba ery: Temperature 5℃～40℃、humidity 20％～80％
Package Contents
Model Name Pet Tracker 208PA Plus
1 piece
Remote base unit
1 piece
Tag Unit
Ba eries CR2032 x 2 pieces
1 piece
Velcro strap
Strap 1 piece
Hook 1 piece
Silicon Sleeve 1 piece
User manual 1 piece
Back
Bottom cover
Battery cover
Back
Hanging hole
for strap
Bottom cover
Searching and Tracking
Transmi er tag unit
CR2032x1
LIR2032: 30 days (8 hrs), CR2032: 60 days (8 hrs)
80db ± 3 db
4.2g (0.15oz.)
38x25x11 mm
Attaching the Remote base unit and Tag unit
Remote Base Unit Tag Unit
Page 1
Mini Pet Tracker 208PA Plus User Manual
2
GETTING STARTED
This section shows how setup your Pet Tracker and do a one-off calibration process.
BATTERY FITTING
a. Remote Base Unit
Open the battery cover by applying pressure on the cover
(Fg.1) and sliding it backwards until it clicks open. Insert the
battery with the "+" sign on the battery facing up (Fg. 2).
Then slide the cover back on.
b. Tag Unit
Remove the top cover pushing it to slide from its mounted
position towards the top of the Tag(Fg. 3 & 4). Insert the
battery into the battery compartment with the "-" sign facing
up. Then replace the top cover by sliding it back into the
compartment. (Fg. 5)
* Make sure that the Base unit and Tag units are
away 50 cm from each other.
TESTING
1. Place the Tag unit in a stationary location.
2. With the Remote base unit in hand, walk away from the Tag.
At about 50mtrs outside turn ON the Remote (Fg. 6) Note:
left = on, right = off.
3. Once the remote base unit is turned on, this will enable a
green flash and initiate a slow tracking rhythm.
4. Now start walking back towards the tag, you should hear a
increased rhythm and get max signal rhythm when within
10-15 metres of the tag unit.
5. Once the search is done, turn off the remote, or press and
hold to activate the tag to chirp to allow tracking by sound.
6. Place the Tag into the silicone case (Fg. 7) and attach the
case onto your pet's collar . If the collar is too wide to fit into
the silicone case vents, please use the provided velcro strap
and fit the case onto the strap. (Fg. 8)
Note: You may turn the remote base unit off when not in
use to save battery. Turn back on when searching is
required.
Additional Out-of-range Alert notes (MUST READ)
1. When the Remote base loses the signal twith a Tag unit (i.e. out-of-range), the remote base unit will flash rapid
RED over 30 seconds than beep di..du and enter "Sleep Mode". If this is the case, press the search button
once to enter the search mode as you walk and search the area for a signal.
2. When the tag is within range, the remote base unit will show a green light and start a tracking tone within 15
seconds. Start walking in different directions until one direction gives you a increased tracking tone, that way you
know you are walking in the right direction. DO NOT turn in circles on the same spot, keep walking until you get
a stronger signal
Low battery alerts
1. When tag unit requires a battery change, it will enable a quick 'beep' once every 2 minutes.
2. If the battery is low while the tracking function is being used, you will hear a quick 'beep' during tracking.
One 'beep' while tracking means the Remote base unit has low battery, two 'beeps' means tag unit battery is low.
Figure 1 Figure 2
Figure 3 Figure 4
Figure 5
Figure 6
Figure 7 Figure 8
Page 2
Power Switch
